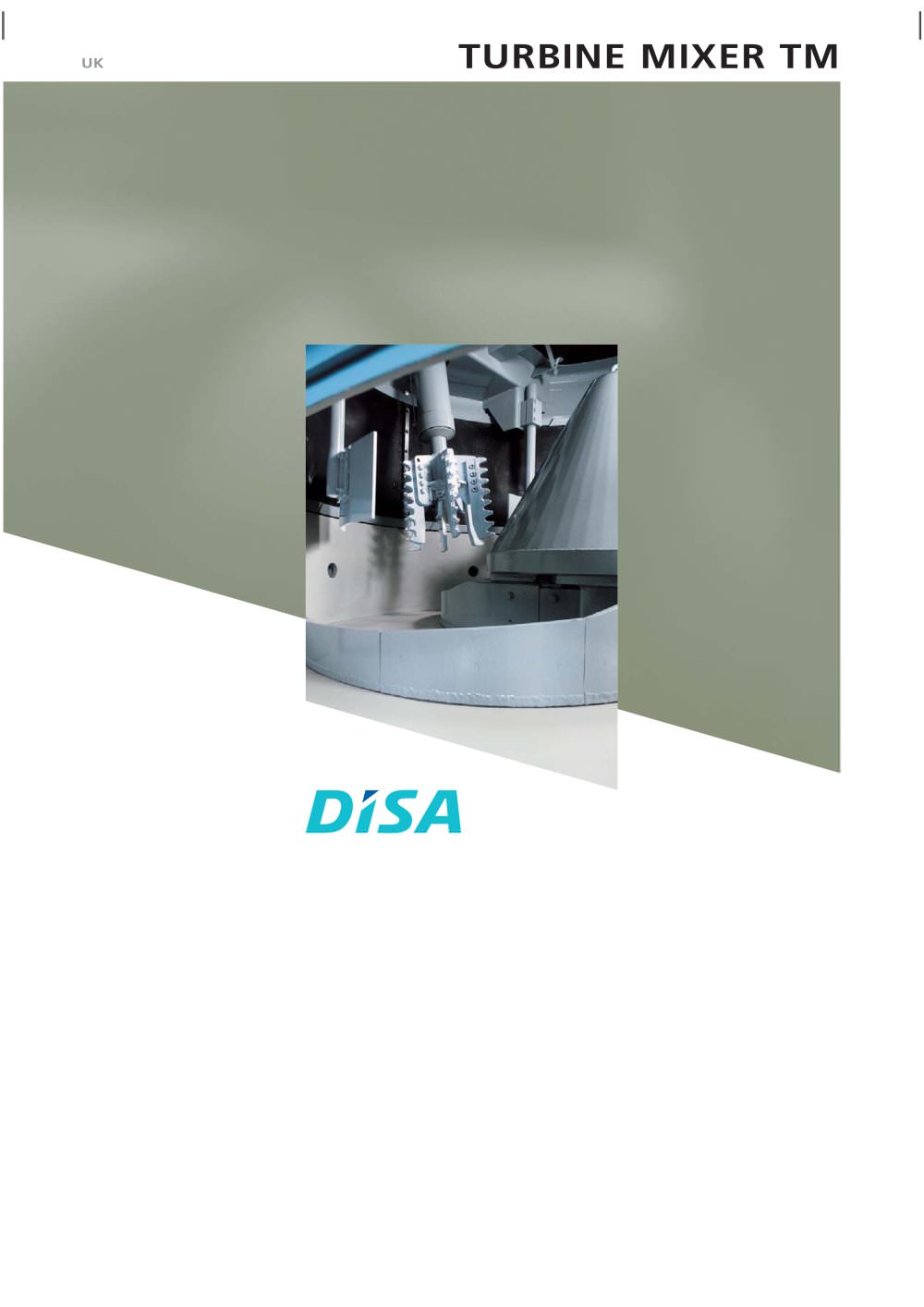

DISA TM Mixer

Product catalog summary

Concept and Features
The DISA Turbine TM Mixer is designed to ensure high-quality sand mixing through features like the optional Sand Controller, which integrates dosing, mixing, and moistening. Key features include continuous sand quality control, monitoring of compactability and mould strength, and automatic water and bentonite addition. The mixer offers efficient operation with high throughput and short cycles, ensuring homogeneous and high-quality moulding sand. It integrates seamlessly into sand circulation systems and requires low maintenance due to robust components and automatic lubrication.

Design and Function
The mixer features continuously rotating tools with large double "S"-shaped ploughs and high-capacity blenders, ensuring fast and intensive sand preparation. The system allows precise dosing of sand and additives, with radial water injection eliminating the dry mix stage. This results in efficient preparation and optimal sand properties. The Bond Injection System offers an alternative for additive integration, reducing dust formation and improving mixing efficiency.

Technical Data
The document provides detailed specifications for various models of the TM Mixer, including dimensions, batch size, cycle time, mixing rate, capacity, and power requirements. The mixers are designed for high performance with varying capacities and power outputs to suit different industrial needs.

Company Information
DISA Industries A/S, founded in 1900, is a leading supplier of foundry equipment and metal surface finishing systems. With a global presence, DISA provides advanced technology and tailored service solutions to industrial manufacturers and foundries worldwide.

Catalog excerpts

Efficient and economic operation due to high throughput rate and short mixing cycles High casting quality due to homoge- neous and fluffy moulding sand of con- sistently high quality Full integration into any sand circulation system using the intelligent control sys- tem Low maintenance requirement due to robust components, automatic lubrica- tion and minimum wear of mixing tools and mixer bowl > An optional Sand Controller ensures idealsand quality by enabling integration ofdosing, mixing and moistening: Easy access to all wear parts for quick replacement Environmentally friendly operation with...

Open the catalog to page 2

The mixing tools rotatecontinuously during loading with pre-batched material. The large double SӔ-shaped mixing ploughs and thehigh-capacity blenders (one or two depending upon mixer size), which are mounted from above, rotate in opposite direc-tions, while the mixing pan and guide ploughs remain stationary. This combi- nation guarantees fast, highly intensive preparation as well as perfect homo- genization of the moulding sand. Exceptionally economic operation due to high throughput rate and improved energy efficiency Exceptional castings quality due to homogeneous and fluffy moulding sand of...

Open the catalog to page 3

TypeTM 160-45TM 190-55TM 190-75TM 240-90TM 240-110TM 285-160TM 285-200 Dimensions in mm A Diameter1650195019502460246029002900 B Blender width, approx.600670710730730700800 C Height of mixer 1990208020802405240524802480 D Height of measuring vessel1400135017501600190019502250 E Int. width of meas. vessel8608608601200120015001500 F Centre dist. mixer/vessel250300300400400450450 G Depth of drive, approx.1827195021002450255028003000 H Width of drive, approx.1093160016501850185019502000 J Width of unloading door1330147014701975197523302330 Batch specifications Batch size (max.)500 kg700 kg1000 kg1400...

Open the catalog to page 4

High-Performance Centrifugal TM Mixer >

Open the catalog to page 5

Founded in 1900, DISA is the worldsleading supplier of foundry equipment and metal surface finishing systems. With factories, sales and service offices in three continents and an extensive agent network, DISA serves international industrial manufacturers, foundries andmetalworking industries with leading edge technology and servicesolutions tailored to their specific needs.For more information please visitwww.disagroup.com > 06.07 ҷ DISA Industries A/S DISA and DISAMATIC ή are registered trademarks by DISA Industries A/S.For illustrative purposes the DISA equipment may be shown without any warning...
