DISA 231

Product catalog summary

Introduction
The DISA 231 is an advanced moulding machine that builds on the DISA 230, offering enhanced precision, flexibility, and reliability. It is designed to meet the demands of modern foundries with high capacity and superior quality.

Reliability and Flexibility
The machine features a simplified hydraulic system for increased reliability and uptime. The control system is updated to the latest standards, ensuring precision and ease of use. The Automatic Mould Conveyor (AMC) has been redesigned for better control and reliability.

The Automatic Pattern Change unit (APC) allows for rapid pattern changes, significantly reducing downtime. The machine is capable of handling complex mould shapes and optimizes the use of the pattern plate area.

Technical Specifications
The DISA 231 can produce up to 510 uncored moulds per hour with minimal mismatch, reducing the need for trimming. It supports various mould dimensions and offers options for cooling time and sand consumption.

Performance and Efficiency
The machine is equipped with a state-of-the-art PLC system that optimizes production speed and accuracy. It ensures a machine-dependent mismatch of less than 0.10 mm, minimizing the need for machining.

Operational Benefits
The DISA 231 offers user-friendly operation with a VDU for clear operator overview and troubleshooting. It uses standardized wear parts and provides options for remote diagnostics to maximize uptime.

Sustainability and Safety
The machine is designed to be environmentally friendly, with features like in-chamber spray to improve air quality and reduce spray liquid consumption. It uses energy-efficient hydraulic systems and is manufactured according to ISO 14001 standards.

Optional Features
Additional options include the Synchronised Belt Conveyor (SBC) for extended cooling zones, Sand Spillage Conveyor (SSC), and Computer Integrated Manufacturing (CIM) modules for process monitoring and optimization.

Conclusion
The DISA 231 is a high-performance moulding machine that offers significant benefits in terms of speed, accuracy, and operational efficiency, making it a valuable asset for modern foundries.

Catalog excerpts

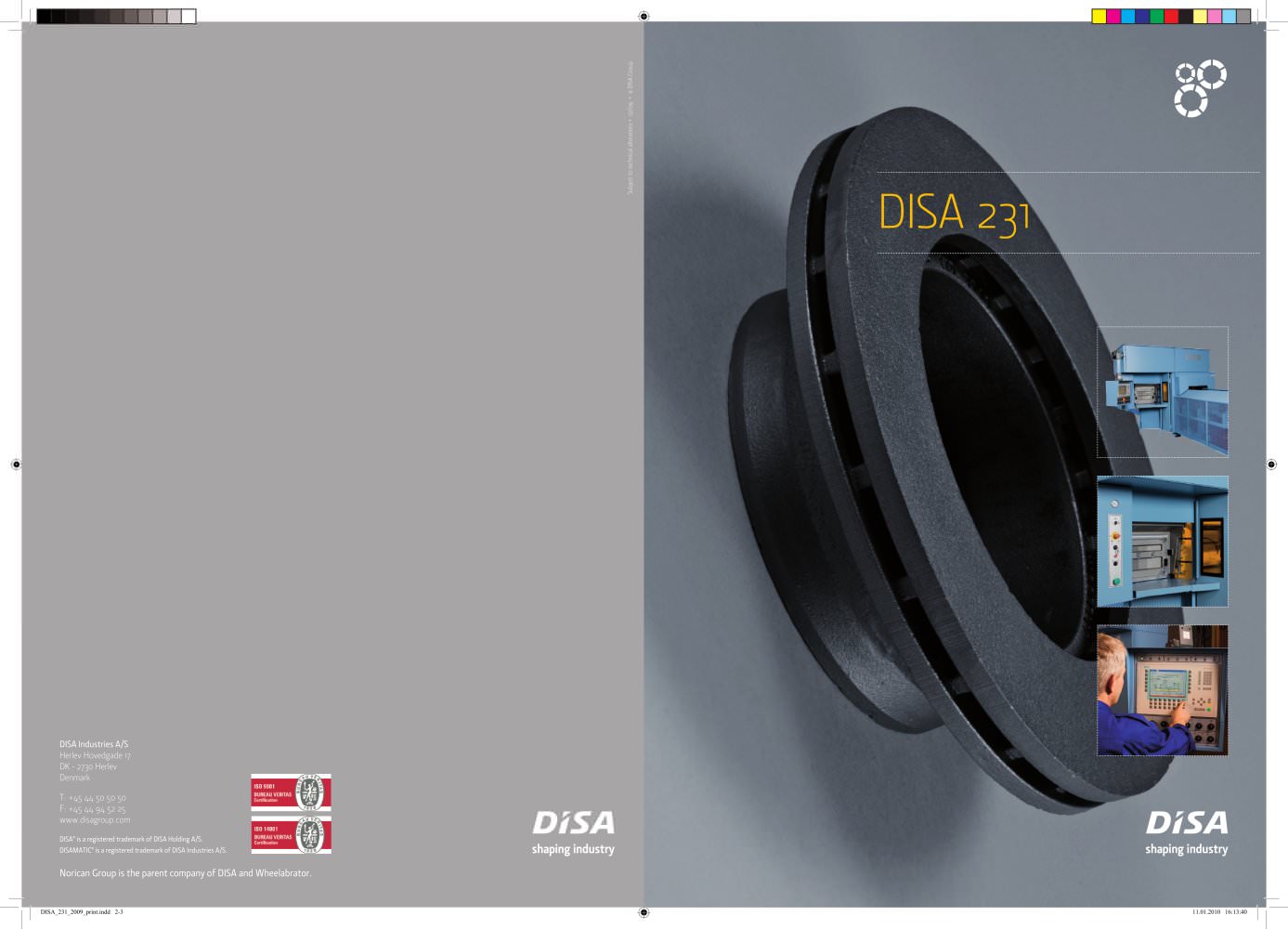

DISA 231 DISA Industries A/S Herlev Hovedgade 17 DK - 2730 Herlev Denmark T: +45 44 50 50 50 F: +45 44 94 52 25 www.disagroup.com Subject to technical alterations • 07/09 • © DISA Group Norican Group is the parent company of DISA and Wheelabrator. DISA® is a registered trademark of DISA Holding A/S. DISAMATIC® is a registered trademark of DISA Industries A/S. DISA_231_2009_print.indd 2-3 11.01.2010 16:13:40

Open the catalog to page 1

Machine evolution sets new standards The new DISA 231 builds on the well established DISA 230 to take precision, flexibility and reliability to a new level. Founded on the experience of more than 120 installed DISA New Generation moulding machines, the DISA 231 delivers high capacity, superior quality and rock-steady performance. 2 Even more reliable The hydraulic system has been simplified and enhanced to provide higher reliability and uptime The control system and operator panel comply with the latest standards to minimize complexity and provide the highest precision The redesigned Automatic...

Open the catalog to page 2

High reliability, excellent castings and low scrap 12 good reasons for choosing DISA 231 6 Up to 510 uncored moulds per hour Machine-related mismatch of less than 0.10 mm for minimum trimming and fettling Automatic Pattern Change unit for fast pattern change in 60 seconds User-friendly operation and maintenance VDU with clear text and graphics for complete operator overview and quick troubleshooting Standardised DISA wear parts World-class PLC system for optimum production efficiency • • • • • • • Suspension rear arm (ductile iron) Ventilated brake disc (grey iron) Brake carrier (ductile iron)...

Open the catalog to page 3

A sustainable solution Performance-enhancing options 4 5 Designed to be safe, clean and lean The DISA 231 offers the following advantages to satisfy increasing demands concerning health, safety and consumption: In-chamber spray for enhanced workplace air quality, prevention of wear on pattern plates and minimised consumption of spray liquids Easy maintenance access for a safe working environment and time efficiency Quieter operation for a more comfortable working environment • • • Prepared for air exhaustion from the moulding chamber for clean working environment Use of patented hydraulic pump...
