iDigi™ Professional Development Kit ZB

iDigi™ Professional Development Kit ZB

Product catalog summary

Overview
The iDigi Professional Development Kit ZB is designed to facilitate the deployment and configuration of a ZigBee network using the iDigi platform. It allows developers to manage applications remotely across a ZigBee network via an IP connection without the need for middleware programming. The kit includes two XBee modules with interface boards, a ConnectPort X4 gateway, an XBee wall router, and various accessories.

Features/Benefits

Cost-effective, out-of-the-box solution for evaluating and developing ZigBee wireless sensor/device networks.
Easy configuration of a ZigBee sensor/device network.
Provides IP connectivity to the ZigBee network using the ConnectPort X4 gateway.
Enables monitoring of light and temperature readings from the XBee wall router.
Facilitates seamless integration of applications with the ZigBee network via the iDigi platform.

Technical Specifications

Performance: RF Data Rate of 250 Kbps; Indoor/Urban Range up to 133 ft (40 m) for Regular and up to 300 ft (90 m) for PRO; Outdoor/Line-of-Sight Range up to 400 ft (120 m) for Regular and up to 1 mile (1.6 km) for PRO.
Transmit Power: 1.25 mW (+1 dBm) for Regular and 50 mW (+17 dBm) for PRO.
Receiver Sensitivity: -96 dBm in boost mode for Regular and -102 dBm for PRO.
Frequency Band: 2.4 GHz.
Operating Temperature: -40° C to +85° C.

Product Components

ConnectPort X4 Gateway: Supports UDP/TCP, DHCP protocols, and includes Ethernet, serial, and USB ports. Features NAT, port forwarding, and access control lists.
XBee ZB Wall Router: Includes internal antenna, temperature, and light sensors. Secures to power outlet and features device reset and configuration reset options.
XBee & XBee-PRO ZB Modules: Designed for ZigBee networking with various performance and power specifications.

Support and Warranty
Digi International offers expert technical support and a five-year warranty for the iDigi Professional Development Kit ZB.

Catalog excerpts

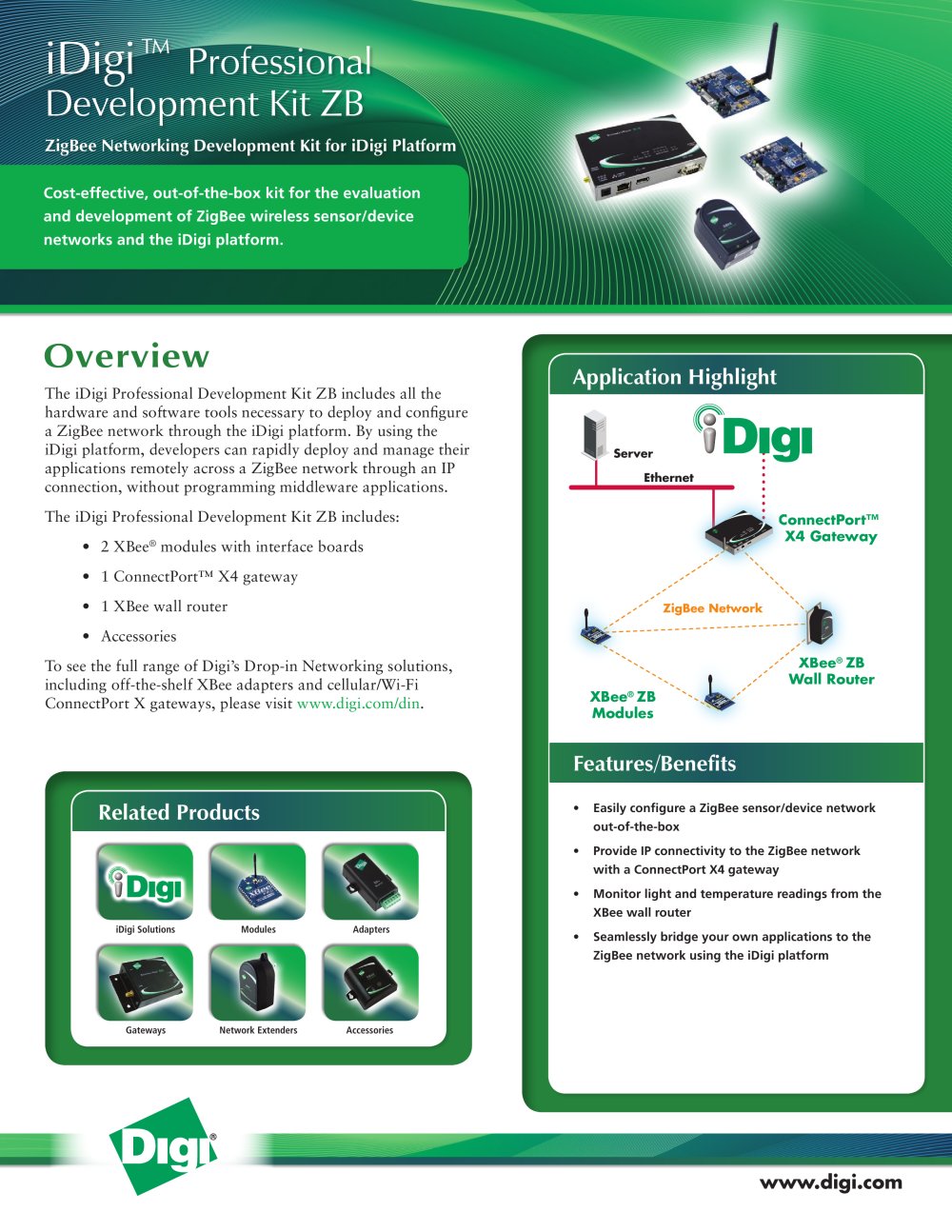

iDigi™ Professional Development Kit ZB-1

www.digi.com Application Highlight Features/Benefits Related Products Overview The iDigi Professional Development Kit ZB includes all the hardware and software tools necessary to deploy and configure a ZigBee network through the iDigi platform. By using the iDigi platform, developers can rapidly deploy and manage their applications remotely across a ZigBee network through an IP connection, without programming middleware applications. The iDigi Professional Development Kit ZB includes: • 2 XBee® modules with interface boards • 1 ConnectPort™ X4 gateway • 1 XBee wall router • Accessories To see the full range of Digi’s Drop-in Networking solutions, including off-the-shelf XBee adapters and cellular/Wi-Fi ConnectPort X gateways, please visit www.digi.com/din. Cost-effective, out-of-the-box kit for the evaluation and development of ZigBee wireless sensor/device networks and the iDigi platform. • Easily configure a ZigBee sensor/device network out-of-the-box • Provide IP connectivity to the ZigBee network with a ConnectPort X4 gateway • Monitor light and temperature readings from the XBee wall router • Seamlessly bridge your own applications to the ZigBee network using the iDigi platform iDigi™ Professional Development Kit ZB ZigBee Networking Development Kit for iDigi Platform Gateways Accessories Network Extenders Adapters Modules iDigi SolutionsEthernetServerXBee® ZBWall RouterXBee® ZBModulesZigBee NetworkPROConnectPort™ X4 GatewayXBXBXBeeeZCCoCoCXXXPRO

Open the catalog to page 1

iDigi™ Professional Development Kit ZB-2

DIGI SERVICE AND SUPPORT - You can purchase with confidence knowing that Digi is here to support you with expert technical support and a strong five-year warranty. www.digi.com/support Digi International 877-912-3444 952-912-3444 [email protected] Digi International France +33-1-55-61-98-98 www.digi.fr Digi International KK +81-3-5428-0261 www.digi-intl.co.jp Digi International (HK) Limited +852-2833-1008 www.digi.cn Buy online • www.digi.com Visit www.digi.com for part numbers. © 2009 Digi International Inc. All rights reserved. Digi, Digi International, the Digi logo, M2M logo, ConnectPort, XBee...

Open the catalog to page 2
