Catalog excerpts

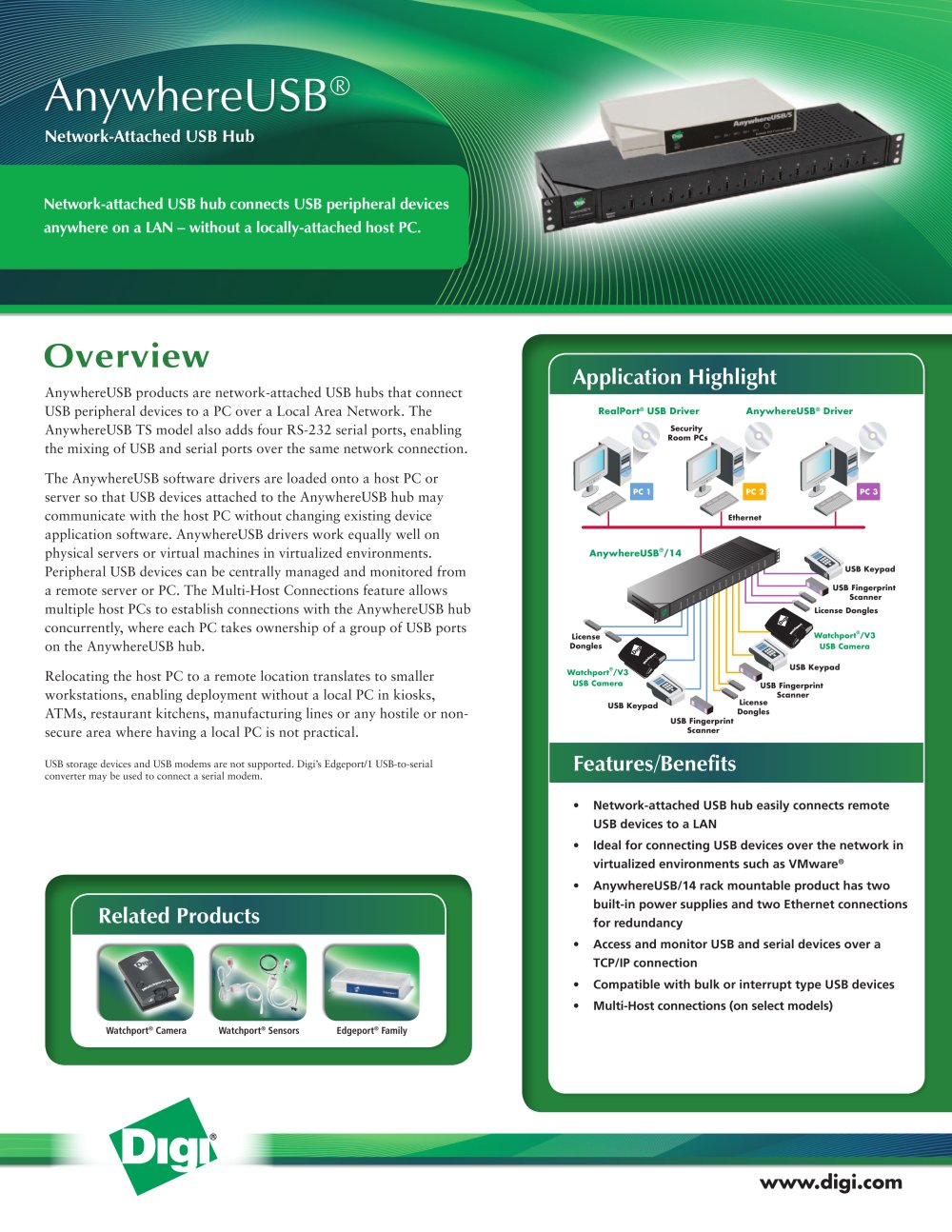

AnywhereUSB® Network-Attached USB Hub Network-attached USB hub connects USB peripheral devices anywhere on a LAN – without a locally-attached host PC. Overview AnywhereUSB products are network-attached USB hubs that connect USB peripheral devices to a PC over a Local Area Network. The AnywhereUSB TS model also adds four RS-232 serial ports, enabling the mixing of USB and serial ports over the same network connection. The AnywhereUSB software drivers are loaded onto a host PC or server so that USB devices attached to the AnywhereUSB hub may communicate with the host PC without changing existing device application software. AnywhereUSB drivers work equally well on physical servers or virtual machines in virtualized environments. Peripheral USB devices can be centrally managed and monitored from a remote server or PC. The Multi-Host Connections feature allows multiple host PCs to establish connections with the AnywhereUSB hub concurrently, where each PC takes ownership of a group of USB ports on the AnywhereUSB hub. Relocating the host PC to a remote location translates to smaller workstations, enabling deployment without a local PC in kiosks, ATMs, restaurant kitchens, manufacturing lines or any hostile or nonsecure area where having a local PC is not practical. USB storage devices and USB modems are not supported. Digi’s Edgeport/1 USB-to-serial converter may be used to connect a serial modem. Application Highlight RealPort® USB Driver AnywhereUSB® Driver Security Room PCs PC 1 PC 2 PC 3 Ethernet AnywhereUSB®/14 USB Keypad USB Fingerprint Scanner License Dongles ® Watchport /V3 USB Camera License Dongles USB Keypad ® Watchport /V3 USB Camera USB Keypad USB Fingerprint Scanner USB Fingerprint Scanner License Dongles Features/Benefits • Network-attached USB hub easily connects remote USB devices to a LAN • Ideal for connecting USB devices over the network in virtualized environments such as VMware® • AnywhereUSB/14 rack mountable product has two built-in power supplies and two Ethernet connections for redundancy Related Products • Access and monitor USB and serial devices over a TCP/IP connection • Compatible with bulk or interrupt type USB devices • Multi-Host connections (on select models) Watchport Camera ® Watchport Sensors ® Edgeport Family ® www.digi.com
Open the catalog to page 1Specifications AnywhereUSB®/2 AnywhereUSB®/5 AnywhereUSB® TS AnywhereUSB®/5M AnywhereUSB®/14 Interfaces 10/100Base-T Ethernet 1 RJ-45 USB 2 RJ-45 2 4 14 N/A Serial 5 N/A 4 RS-232 RJ-45 1 RS-232 DB9 Features IP Address 1 static (fixed) address per unit LEDs System and Port status AnywhereUSB/2, AnywhereUSB/5, AnywhereUSB/5M, AnywhereUSB TS: Ships with 120-240VAC 50-60 Hz at 5VDC @ 3 amps max w/ locking barrel Power Supply Management Includes 2 120-230VAC 50-60 Hz @ 8 amps max CLI and AnywhereUSB web configuration tool (excluding AnywhereUSB/5 Gen 1) Remote configuration utility; Multiple...
