SkidSteer -  Digga

Catalog excerpts

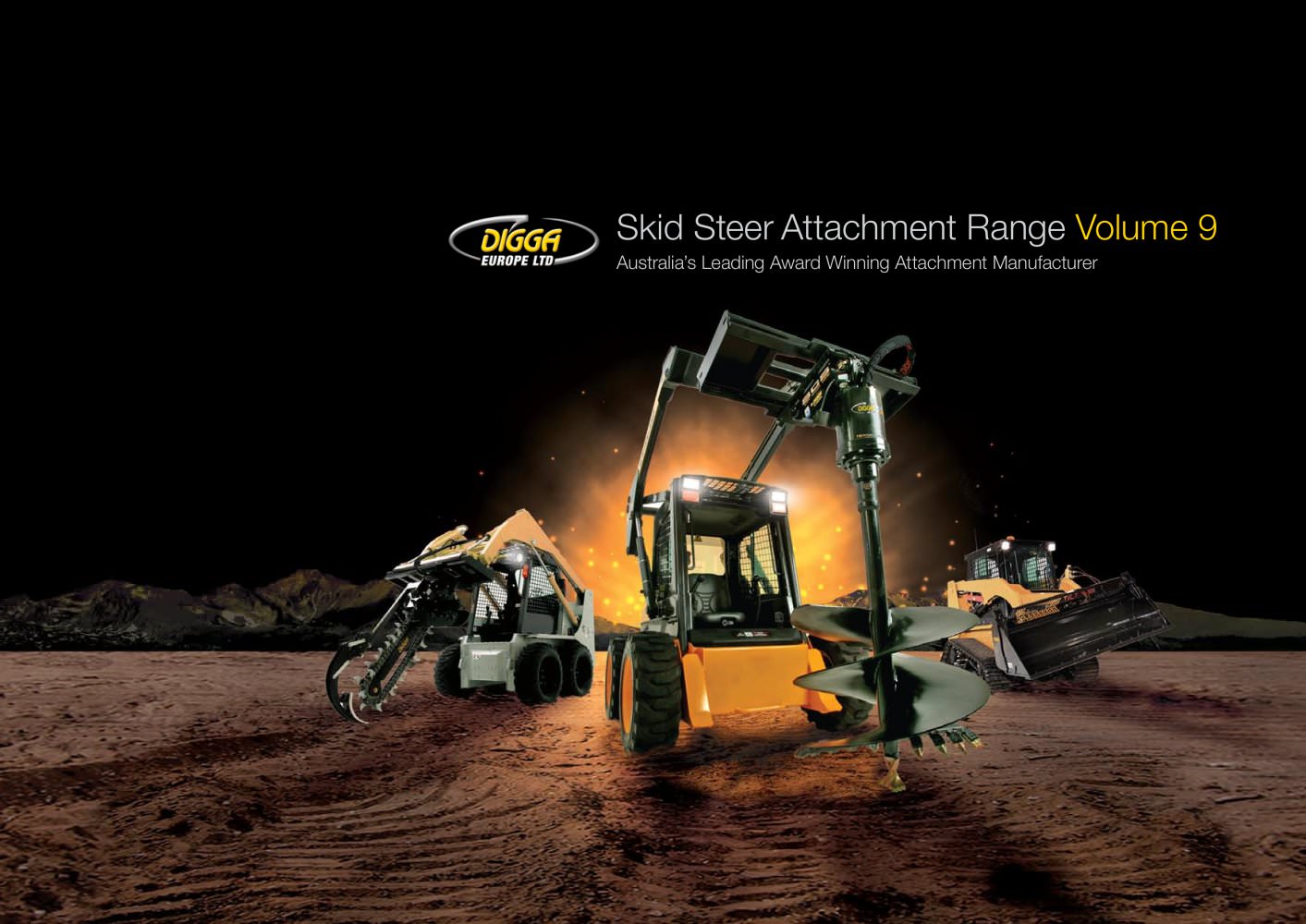

Skid Steer Attachment Range Volume 9 Australia’s Leading Award Winning Attachment Manufacturer

 Open the catalog to page 1

About Digga™ 100% Australian owned, Digga are Australia’s largest manufacturer and exporter of gearboxes and attachments for the earthmoving machinery industry. Formed in 1981 by founder, Chairman & Director of Research & Development, Stewart Wright, Digga pioneered Pendulum Drilling in Australia and today produce the largest range of compact high torque planetary drives for the Pendulum drilling & attachment industry. Digga are a Multi-award winning company both for product design and business practices, recognised for their Innovative approach to leading edge design and manufacturing...

 Open the catalog to page 2

Contents Digga Premium Auger Drives 4 Swing Control System 5 Augers, Extensions and Adaptors 5 Wear Parts - Teeth and Pilots - Padloc® 5 Bigfoot Trencher Range 6 Hydrive Trencher Range 7 Tilting 4 in 1 Bucket 8 4 in 1 Bucket 8 Cleana Bucket Broom 8 Cement Mixa 9 Skid Hoe 9 Pallet Forks 9 Australia’s Leading Award Winning Attachment Manufacturer Digga’s 12,500m2 (130,000 sq ft) state of the art manufacturing facility, Brisbane Australia.

 Open the catalog to page 3

4 Digga Premium Auger Drives for Skid Steer Loaders 28 years of design and development has produced the highest quality range of drives on the world market today. Fully Australian designed and manufactured. Small Skid Steers Skid Steer Loader - Small - Up to 1700kg Flow up to 55 lpm Part No. PDD PDX PDX2 PDX3 Rec flow range (LPM) 15 - 45 20 - 50 30 - 55 30 - 55 Torque (Nm) 1200 1800 2350 2850 Max Flow (LPM) 115 115 115 115 Max Pressure Bar (BAR) 240 240 240 240 Standard Skid Steers Skid Steer Loader - Standard - 1700kg - 3500kg (3.5T) Flow up to 90 lpm Part No. PD3 PD4 PD5 Rec flow range...

 Open the catalog to page 4

5 SCS controls the pendulum action of your auger making your auger easier to operate and control, safer on the work site and greatly improving operator efficiency and effectiveness. Swing Control requires no additional hydraulics. Unique independent dampening cylinders control forward/aft and side to side movement. Swing Control can also be retrofitted to existing auger drives. Features: >> I ncrease efficiency. >> Increase productivity. >> Increase safety. Building quality augers since 1981, all Digga augers are designed heavy duty and feature ideal pitch flights to provide maximum soil...

 Open the catalog to page 5

6 Bigfoot Trencher Range A compact, yet powerful planetary drive trencher fitted with an adjustable skid foot to maintain consistent digging depths and a single spoil removal auger for efficient spoil removal to one side of the trench. Features: Quality Digga New Generation g >> earbox & motor. >> High quality bearings and components. >> Full range of chain options available. >> Frame can be side shifted for digging close to permanent structures ie; buildings, trees etc. Ideal Use: Pipe laying for irrigation, underground power and communications, road repairs, removal of trees and general...

 Open the catalog to page 6

7 Hydrive Trencher Range The Hydrive trencher range are fitted with twin spoil removal augers for efficient spoil removal to both sides of the trench. Spoil Augers can be removed for close up trenching. Hydrive XD Trencher Hydrive XD for the serious operator performing heavy duty trenching up to 1200mm digging depth and 350mm digging width, fitted with a 2” chain and a heavy duty steel crumber bar. Model Chain Length Cutting Depth Cutting Width Max Flow (LPM) Max Pressure (BAR) Hydrive 900mm up to 900mm 100 - 300mm 45-75 240 1200mm up to 1200mm 100 - 300mm 50-80 240 Hydrive Trencher Ideal...

 Open the catalog to page 7

8 4 in 1 Bucket Australian designed and manufactured using only the highest quality components & materials. Digga has an extensive 4 in 1 bucket range designed to suit skid steer loaders of all sizes. The following attachments are available from Australia. Features: Grabbing teeth profiled on both front/>> rear overlap for greater grip of logs or other debris. >> Side curved sections create greater opening bucket width of 860mm. >> 1 Piece heavy duty fully welded 6mm grill/hungry board with unique high visibility design, for clear vision of front bucket edge. >> Standard heavy duty 20mm...

 Open the catalog to page 8

9 Features: Australian made and designed f >> rom quality steel. >> Load rating tested to Australian Standard AS 2359.1 >> Easy quick fit attachment for most skid steer loaders. >> 1200kg and 1600kg load ratings available. 1200kg 1600kg Weight (kgs) 146 165 Pallet Forks Australian made pallet forks, quality tested to ensure strength and reliability. Skid Hoe Quick fit attachment for digging trenches & footings up to 1.7m deep. Fitted standard with 300mm (12”) bucket. Rec Flow Range (LPM) 30 - 75 Max Pressure (BAR) 240 Features: >> Simple efficient design requires minimal fitment and can be...

 Open the catalog to page 9

Mini Loaders Back Hoes Also by Digga Digga have a complete range of attachments to suit most machine types. For more information and brochures please contact Digga. Skid Steers Excavators

 Open the catalog to page 10

Telehandlers Large Excavators Screw Anchoring Wheeled loader

 Open the catalog to page 11

Digga Australia Pty Ltd 4 Octal Street Yatala QLD 4207 Ph: +61 7 3807 3330 Fax: +61 7 3807 1499 Email: info@digga.com www.digga.com For more information please contact you local authorised Digga dealer. Digga Europe Ltd 51 Royce Close West Portway Industrial Estate Andover, Hampshire SP10 3TS Ph: +44 (0) 1264 351 365 Fax: +44 (0) 1264 356 656 Email: europe@digga.com www.digga.com
