Extendable Ramdrill PHD-XD, Ramdrill PHD-XD, Ramdrill

Product catalog summary

Contact Information:
RAMDRILL and DIGGA have multiple locations across Australia, including QLD, NT, NSW, ACT, VIC, SA, TAS, and WA. Contact details for each location are provided, including phone numbers and an email address for general inquiries.

Product Overview:
The Extendable Ramdrill PHD-XD is highlighted as a versatile and powerful tool for tractors, featuring a new hydraulic extendable boom. It is suitable for post hole boring, fencing, and tree planting. The product is compatible with tractors that have a 3-point linkage or adapter and at least two double-acting auxiliary ports.

Features:

Hydraulic extendable boom for increased versatility.
Hydraulic gearboxes available for 75hp and 100hp tractors, with XD options.
PTO driven gearboxes for 50hp and 75hp tractors.
Three different build options per model.
Heavy-duty, fully adjustable frame with hydraulic up and down movement.
Interchangeable hydraulic or PTO drive.
Adjustable stabilizer legs for easy storage and fitment.

Specifications:
The document provides detailed specifications for different gearbox models (RD-000310, RD-000331, RD-000340), including dimensions, auxiliary circuit requirements, flow rates, speed, and weight. Key specifications include:

Overall dimensions vary by model, with specific lengths, heights, and widths provided.
Auxiliary circuits required range from 1 to 3, depending on the model.
Flow rates and speeds are specified for different horsepower levels (75HP, 100HP, XD).
Weight varies by model and horsepower, with specific weights listed.

Catalog excerpts

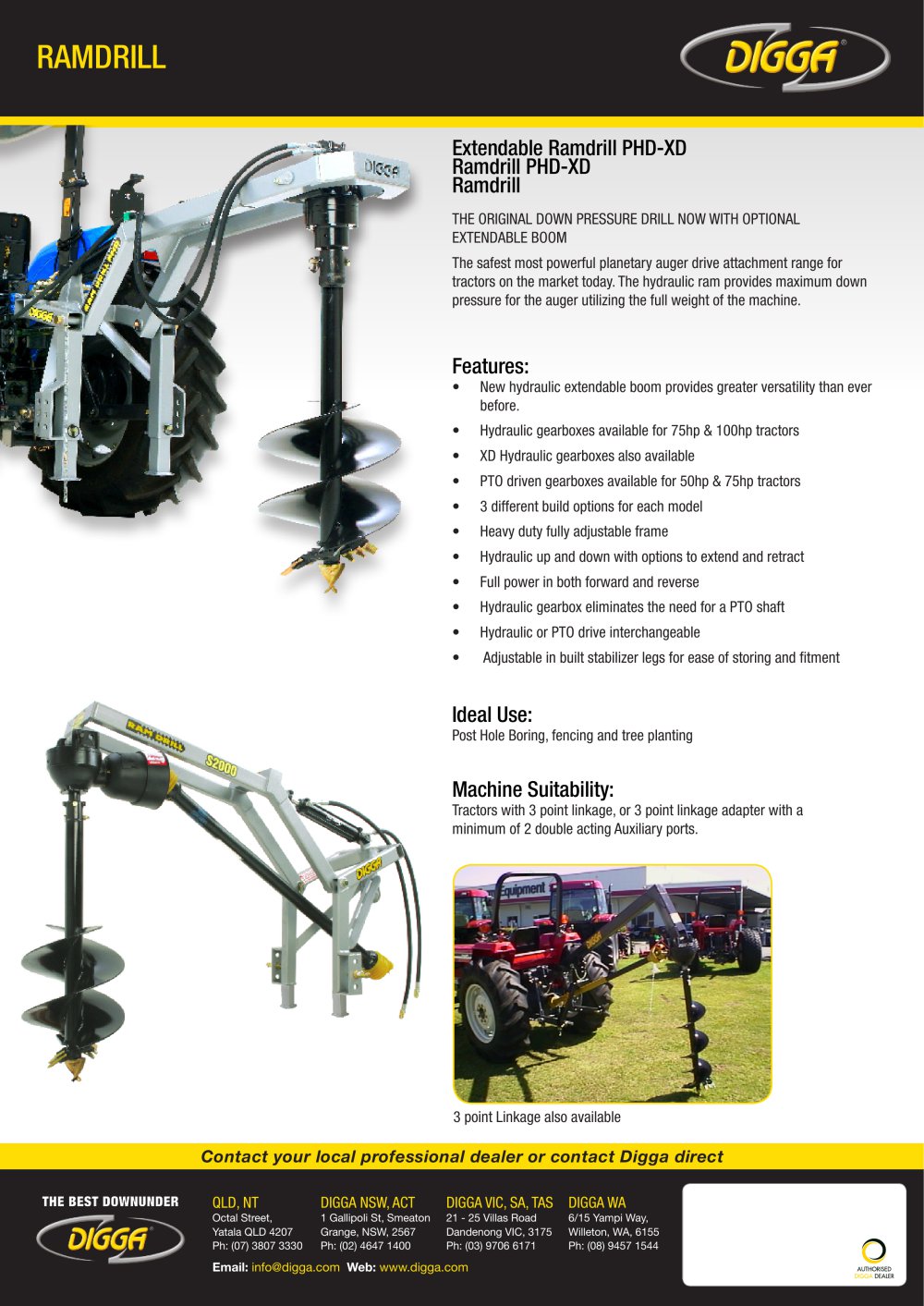

Extendable Ramdrill PHD-XD, Ramdrill PHD-XD, Ramdrill-1

RAMDRILL Extendable Ramdrill PHD-XD Ramdrill PHD-XD Ramdrill THE ORIGINAL DOWN PRESSURE DRILL NOW WITH OPTIONAL EXTENDABLE BOOM The safest most powerful planetary auger drive attachment range for tractors on the market today. The hydraulic ram provides maximum down pressure for the auger utilizing the full weight of the machine. New hydraulic extendable boom provides greater versatility than ever before. Hydraulic gearboxes available for 75hp & 100hp tractors XD Hydraulic gearboxes also available PTO driven gearboxes available for 50hp & 75hp tractors 3 different build options for each model Heavy duty fully adjustable frame Hydraulic up and down with options to extend and retract Full power in both forward and reverse Hydraulic gearbox eliminates the need for a PTO shaft Hydraulic or PTO drive interchangeable Adjustable in built stabilizer legs for ease of storing and fitment Post Hole Boring, fencing and tree planting Machine Suitability: Tractors with 3 point linkage, or 3 point linkage adapter with a minimum of 2 double acting Auxiliary ports. 3 point Linkage also available Contact your local professional dealer or contact Digga direct THE BEST DOWNUNDER Octal Street, Yatala QLD 4207 Ph: (07) 3807 3330 1 Gallipoli St, Smeaton Grange, NSW, 2567 Ph: (02) 4647 1400 Email: [email protected] Web: www.digga.com

Open the catalog to page 1

Extendable Ramdrill PHD-XD, Ramdrill PHD-XD, Ramdrill-2

SPECIFICATIONS RD-000310 Overall Dimensions (mm) PTO Gearbox (fixed boom) Hydraulic Gearbox (retracted boom) Hydraulic Gearbox (extended boom) Hydrualic Gearbox (fixed boom) Width (Overall) Contact your local professional dealer or contact Digga direct THE BEST DOWNUNDER Octal Street, Yatala QLD 4207 Ph: (07) 3807 3330 1 Gallipoli St, Smeaton Grange, NSW, 2567 Ph: (02) 4647 1400 Email: [email protected] Web: www.digga.com

Open the catalog to page 2
