PTFE expanded Ocean

Product catalog summary

Overview: The document provides technical specifications and features of the OCEAN 135 gasket, a product by DIFLON Technology. It is made from 100% pure PTFE, transformed into a fibrous molecular structure, offering unique properties for sealing applications.

Specifications:

Material: 100% pure PTFE
Color: White
pH Range: 0 to 14
Operating Temperature: -160°C to +270°C, up to 290°C for short periods
Operating Pressure: Vacuum to 80 bar

Key Features:

High plastic deformability with reduced cold creep, suitable for complex sealing on various surfaces.
Resistant to all chemicals except some fluorinated compounds and molten alkali metals.
Non-contaminating, non-toxic, and does not release color particles.
Customizable in density and size for specific applications.
Easy application with an adhesive strip, requiring only the removal of a protective film.

Application Instructions: The gasket can be applied by removing the protective film and pressing the strip onto the surface. Ends can be overlapped or cut diagonally for low-pressure applications, resulting in a standard flat gasket.

Technical Data: The document includes a table with dimensions and deformation values under different pressures, providing detailed specifications for various sizes of the OCEAN gasket.

Additional Notes:

Further tightening is necessary once the flanged coupling reaches operating temperature.
High-density materials and other dimensions are available upon request.

Catalog excerpts

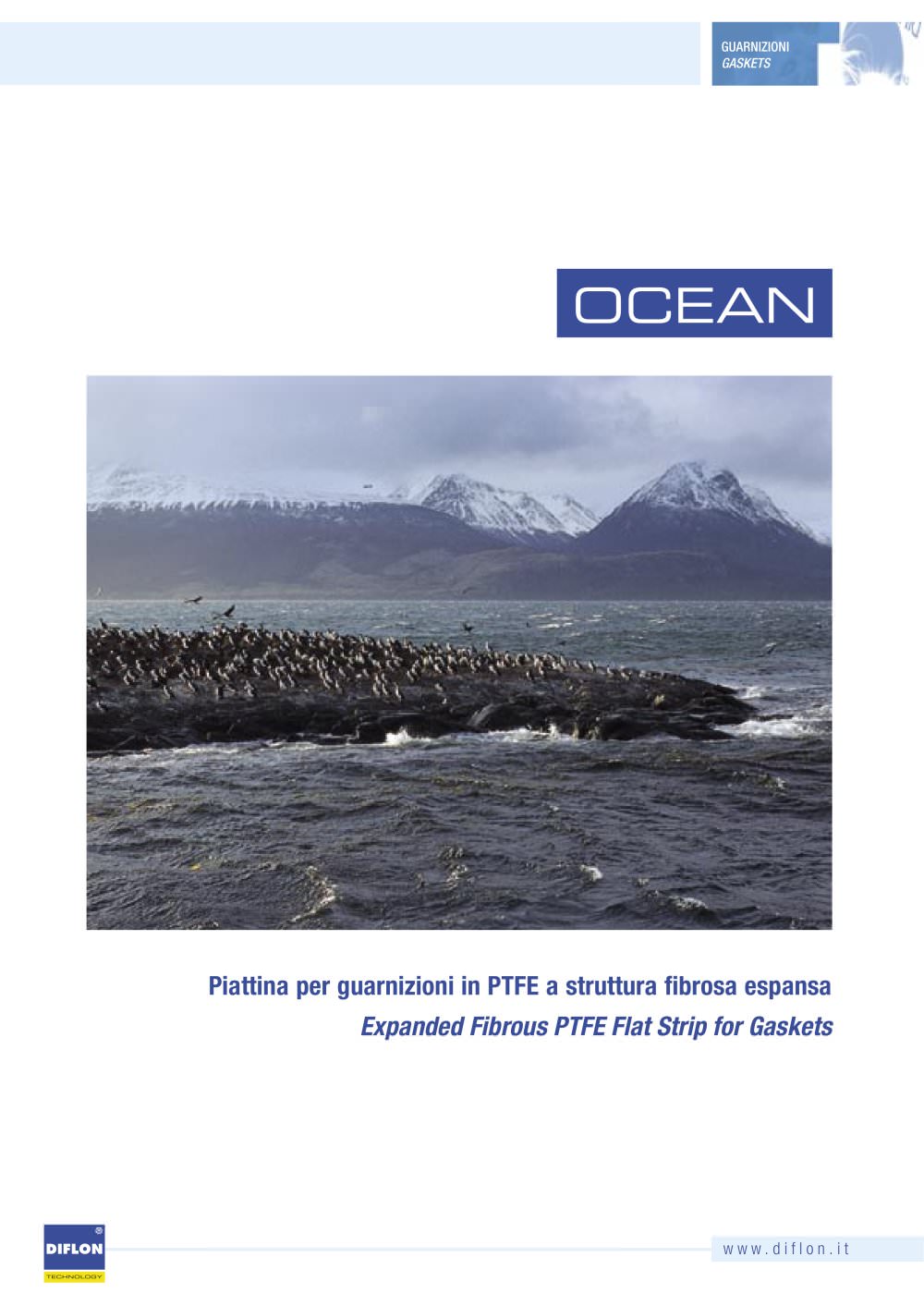

® DIFLON ® TECHNOLOGY GUARNIZIONI GASKETS www.diflon.it Piattina per guarnizioni in PTFE a struttura fibrosa espansa Expanded Fibrous PTFE Flat Strip for Gaskets OCEAN

Open the catalog to page 1

OCEAN ® 135 Ocean DIFLON ® TECHNOLOGY GUARNIZIONI GASKETS w w w . d i f l o n . i t Caratteristiche Ocean La guarnizione piana Ocean è costruita con PTFE puro al 100%, trasformata con un particolare processo produttivo in una struttura molecolare fibrosa. Il risultato è un prodotto con particolari combinazioni di proprietà: • Elevata deformabilità plastica con riduzione dello scorrimento a freddo; ideale per realizzare tenute anche complesse in brevissimo tempo su qualunque superficie. Infatti Ocean, in seguito alla pressione applicata, si trasforma in un sottile nastro che riempie tutte le micro-cavità...

Open the catalog to page 3

DIFLON ® TECHNOLOGY 136 OCEAN Ocean GUARNIZIONI GASKETS www.diflon.it 1 2 3 4 Note/Notes È necessario eseguire un ulteriore serraggio quando il sito flangiato va in temperatura./Once the flanged coupling has reached its operating temperature, it is necessary to further tighten the assembly. È possilbile fornire materiali ad alta densità per impieghi specifici./High-density materials for specific applications are available on request. Altre misure approntabili su richiesta/Other dimensions can be delivered according to the customer’s indications. Il materiale viene fornito in bobine marcate Ocean...

Open the catalog to page 4
