DIATRON 1000

Product catalog summary

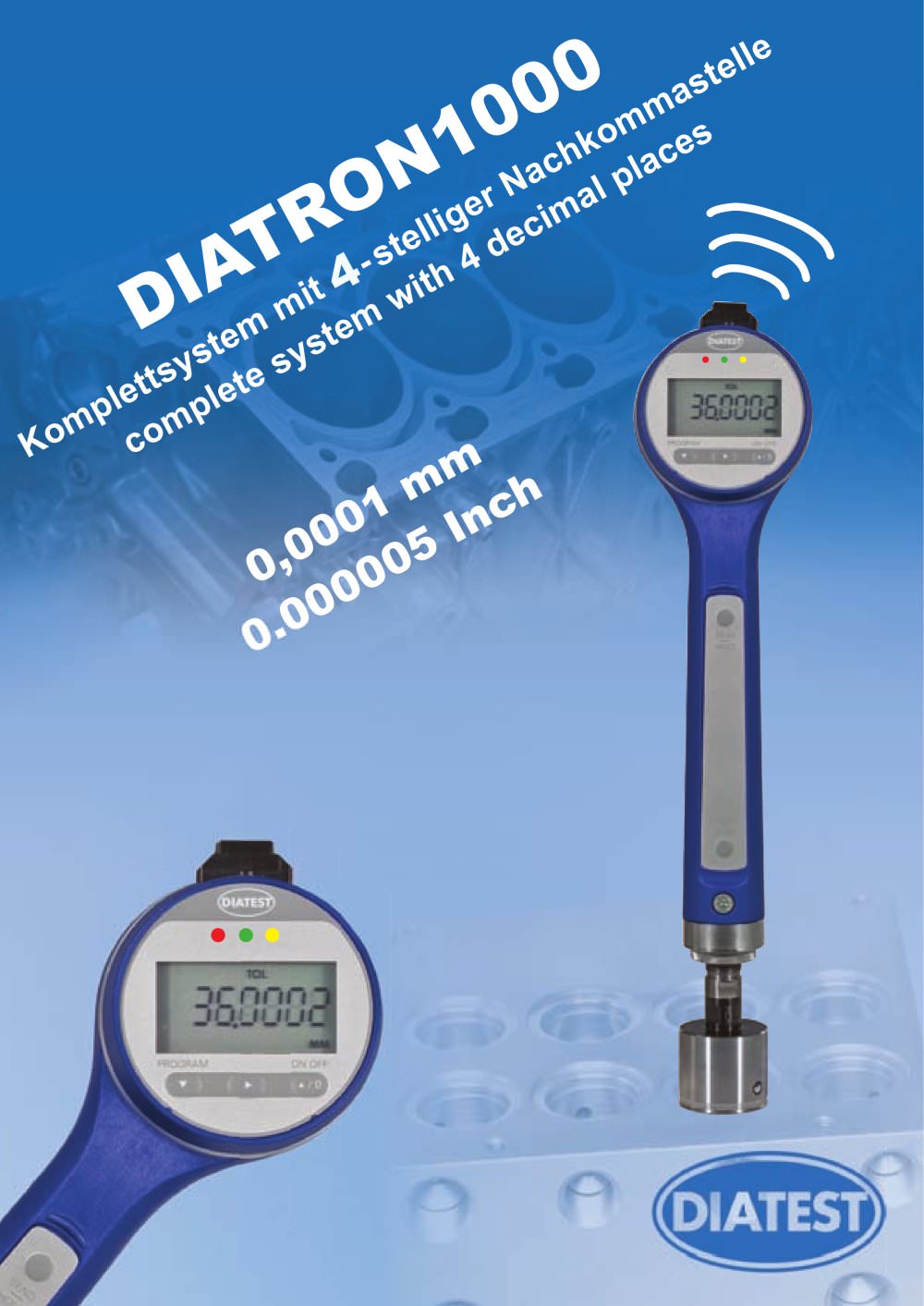

Overview: The DIATRON1000 is a complete measurement system offering high resolution and precision with capabilities for both static and dynamic measurements. It supports real radio transmission as an optional feature.

Specifications:

Resolution: 0.0001 mm / 0.000005 inch
Accuracy: ±0.0002 mm linearity deviation over a 3 mm measurement range, with additional linearization possible.

Measurement Modes:

Supports static and dynamic measurements, including Max/Min/Diff. modes.
Dynamic measurement allows continuous data transmission via radio and cable.
Programming can be password protected.

Display Features:

Switchable between mm and inch.
Tolerance display available in all measurement modes.
Programmable directly via gauge keys.

Interface Options:

Radio (Optional): Connects up to 120 devices to one receiver with a 200 m range in open areas. Supports 2 million data transmissions without battery change, ensuring high data security.
Cable (Optional): Features galvanic isolation, supports programming and data transmission via USB or RS232 connection.

Software: Free software is included for both radio and cable options.
