Diamond Chain - Motorcycle Chain Catalogue

Product catalog summary

Overview: This document provides detailed specifications, maintenance guidelines, and troubleshooting tips for Diamond's motorcycle roller chains, highlighting various models and their unique features.

Specifications:

530 X LO: Top-of-the-line roller chains with high load capacity and extended service life due to the O-Ring lubrication system.
530 ENP: Nickel-plated for rust resistance, featuring standard design and assembly.
530 XDL: DURALUBE® chain with thicker link plates and constant lubrication for higher strength and reduced maintenance.
520/530 MS: Multi-service chains suitable for various applications, utilizing superior parts processing technology.
428 HD: High bushing press-out resistance with thicker link plates to reduce joint tightness.
630 MS: Motorcycle version of industrial #60 roller chain, emphasizing manufacturing and assembly precision.

Maintenance and Lubrication:

Proper installation and maintenance are crucial for maximizing chain life.
Ensure correct tensioning to avoid unnecessary wear or failure.
Use high-viscosity oil for lubrication, applying it to the upper edges of link plates.
Clean chains with kerosene, avoiding damage to O-rings, and inspect for wear.
Replace worn chains and sprockets to prevent reduced service life.

Troubleshooting:

Common issues include excessive noise, chain climbing sprocket teeth, misalignment, and stiff joints.
Causes range from insufficient lubrication to improper tensioning and misaligned sprockets.
Solutions involve checking for obstacles, ensuring proper lubrication, and replacing worn components.

Key Recommendations:

Regularly inspect and maintain chains to prevent premature wear.
Ensure proper alignment and tensioning during installation.
Use appropriate lubrication techniques to extend chain life.

Catalog excerpts

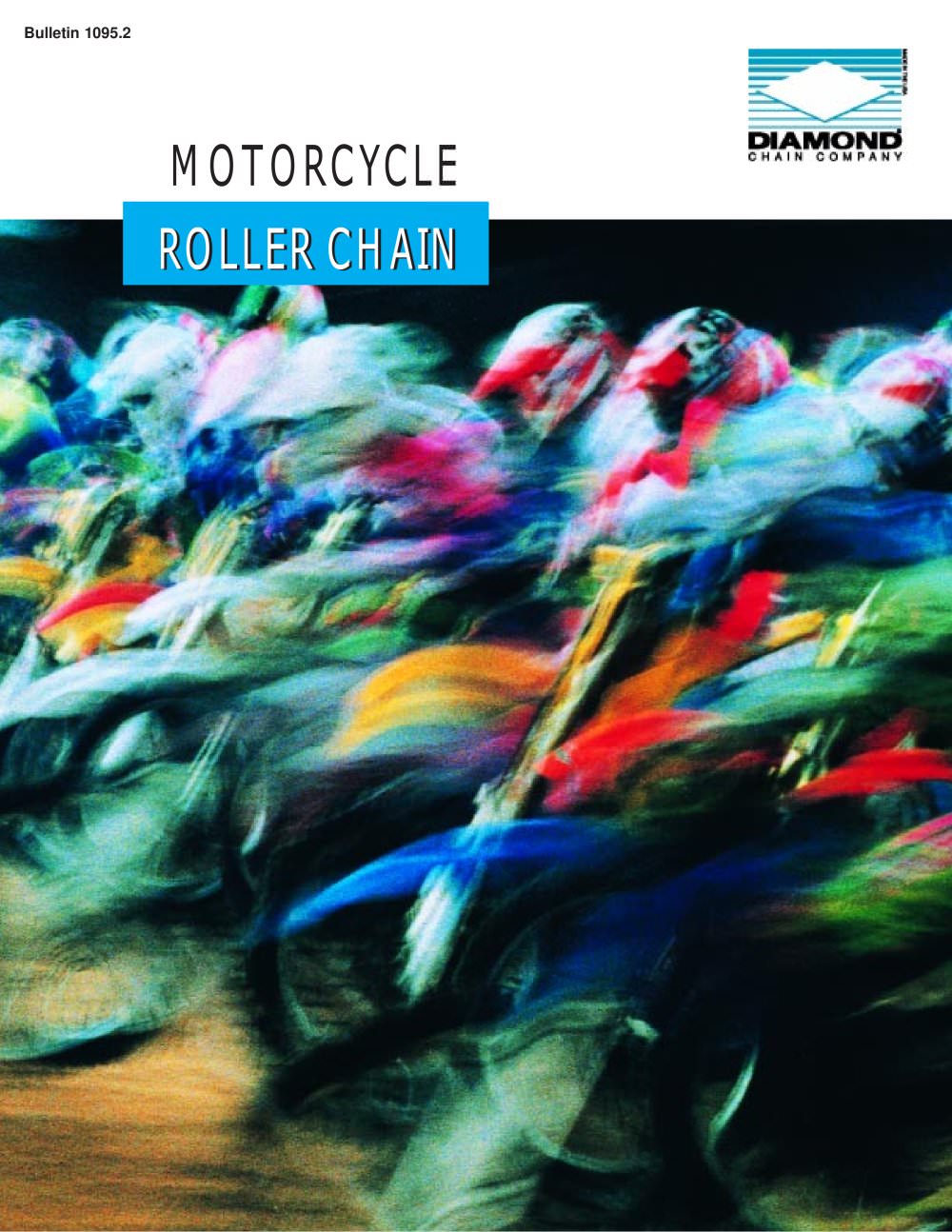

Diamond Chain - Motorcycle Chain Catalogue -1

Bulletin 1095.2 ROLLER CHAIN ROLLER CHAINMOTORCYCLE >

Open the catalog to page 1

Diamond Chain - Motorcycle Chain Catalogue -3

Diamond exercises rigid controls and surveillance throughout production to ensure uniformity of all component parts. Of course, no matterhow superior a roller chain, its full potential will not be realized if it is not properly installed and maintained. > If the chain is too tight or too loose, service life will suffer. A chain that istoo tight creates unnecessary wear. A chain that is too slack can easily top the sprocket teeth and quickly cause a failure. Consult the motorcycle man- ufacturers manual for proper tensioning and mid-span movement. > Perhaps the largest contributor to shortened...

Open the catalog to page 3
