Product Overview Brochure_Layout 1 20/03/2012 16:33 Page 1 PRODUCT overview brochure PINPOINT RANGE DATA CAPTURE POD FAULTFINDER RANGE DEVICE TEST INTERFACES (DTIs) AUTOPOINT DT S5OO S79O SERIES 2 CRS8OOO

Product Overview Brochure_Layout 1 20/03/2012 16:33 Page 2 4 5 9 PinPoint Alpha and Sigma PinPoint Alpha/Sigma The PinPoint Alpha and Sigma systems are flexible, adaptable and modular, allowing you to apply different test methods as required. 6 7 PinPoint II R PinPoint II R The leading bench-top system for the test and fault finding of circuit boards. Integrated ability to reverse engineer schematic diagrams. Product overview 8 9 With innovative features throughout, Diagnosys products provide you with the right complete solutions for the solution for testing, performance proving, diagnostic fault...

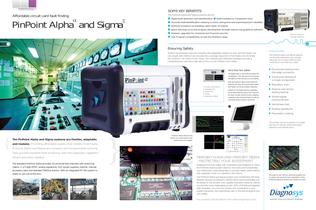

Product Overview Brochure_Layout 1 20/03/2012 16:33 Page 4 PinPoint Alpha/Sigma Affordable circuit card fault finding PinPoint Alpha and Sigma SOME KEY BENEFITS The PinPoint Alpha and Sigma systems deliver: Rapid fault detection and identification Faults isolated to component level Accurate fault identification reducing re-work, saving time and improving board reliability Reduced inventory by enabling rapid repair of boards Quick learning curve and program development through easy-to-use graphical software Modular upgrades for technical and financial security PinPoint Sigma for ultimate flexibility...

Product Overview Brochure_Layout 1 20/03/2012 16:33 Page 6 PinPoint II R PinPoint II R is listed under NATO and US National Stock Numbers Powerful circuit card diagnostics PinPoint II R Comprehensive fault finding High digital test speeds and integrated analog test capabilities with extended libraries give you the confidence that your circuits are tested in-depth and with full fault coverage - quality test ensuring the safe and correct performance of your circuits. 7 6 PinPoint II R gives you the ability to test and fault-find electronics quickly and reliably. It enables you to select and apply...

Product Overview Brochure_Layout 1 20/03/2012 16:33 Page 8 PinPoint UDA Functional testing with diagnostic toolset Powerful test and diagnostic system for modules and circuits PinPoint UDA • Extensive diagnostic toolset • Dynamic functional test of digital components • Dynamic functional test of mixed signal components • Traktest for continuity and opens testing of tracks • Shorts locator to identify the position of short circuits • Boundary scan • Analog signature analysis • Analog stimulus and measurements • Passive component value measurement • LXI, PXI and GPIB instrument integration 9 8...

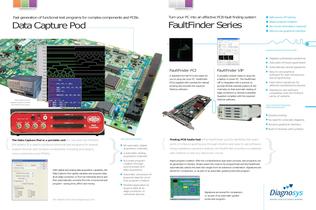

Product Overview Brochure_Layout 1 20/03/2012 16:33 Page 10 Data Capture Pod FaultFinder Range Fast generation of functional test programs for complex components and PCBs Turn your PC into an effective PCB fault finding system Safe power-off testing Data Capture Pod FaultFinder Series Rapid program creation No circuit information required Easy-to-use graphical interface 11 10 Impedance Signature Analysis test with: Digitally synthesised waveforms Auto-learn of known good board FaultFinder PCI A standard format PCI card ready for you to plug into your PC. FaultFinder PCI is supplied with 2 probes...

Product Overview Brochure_Layout 1 20/03/2012 16:33 Page 12 Device Test Interfaces Reliable, accurate and robust test contact Device Test Interfaces Demanding test environments Diagnosys DTIs use sharp pointed probes that greatly increase the contact reliability due to the high pressure at the probe tips. The resulting disruption of the oxide and flux that might cover the contact areas allows the tips to make “contaminate free” connections. The latest in our range of DTIs are 0.4mm designs that are used for the most complex components. Designed for use in demanding test environments and to cater...

Product Overview Brochure_Layout 1 20/03/2012 16:33 Page 14 Autopoint DT Error-free probing for accurate and fast diagnostics Fast and accurate automatic fault probing and identification AutoPoint DT AutoPoint DT uses a vectorless V/I (Voltage / Current) analysis technique to provide a powerful and rapid way to compare signatures learnt from a known good circuit with those seen in a faulty circuit. The technique is ideal for testing networks with passive components such as resistors, inductors, capacitors and semiconductor junctions. However, it can also be applied to test the input and output...

Product Overview Brochure_Layout 1 20/03/2012 16:33 Page 16 S500 Complete functional test solution Functional test system S500 17 16 Integrated functional test programming Diagnosys’ integrated functional test programming can be delivered for all LRU and LLRUs, and provides rapid fault isolation. 1 Easy-to-use interactive user instructions on-screen for all applications 2 Extensive self-test capability providing confidence in testing 3 Industry standard software tools Optional integrated diagnostic solution for any electronic circuit PinPoint bench-top diagnostic system Unique links to S500 for...

Product Overview Brochure_Layout 1 20/03/2012 16:33 Page 18 S790 Series 2 Quality performance Proving performance and finding faults in mission critical circuits S790 Series 2 The S790 Series 2’s unequalled blend of powerful digital electronics and instrumentation facilities outperforms rival machines where it matters most. Its high speed ability permits digital circuit testing at 40MHz pattern rates. Up to 1792 pins are available, each with individually programmable voltage levels. These hybrid test channels also provide analog facilities for in-circuit tests, and functional testing up to 5MHz....

Product Overview Brochure_Layout 1 20/03/2012 16:33 Page 20 CRS 8000 Safe and efficient coating removal for a single node or an entire circuit CRS8OOO Coating Removal System Safe removal of conformal coatings The workstation is statically controlled to ensure the protection of components on printed circuit boards during the stripping process. This is achieved by incorporating a stateof-the-art in-line air/nitrogen ionizer with auto-balancing. A special thermo-set acrylic plastic media is formulated to be as ESD safe as technically possible. When the media is mixed with the ionized air you will...
