Application

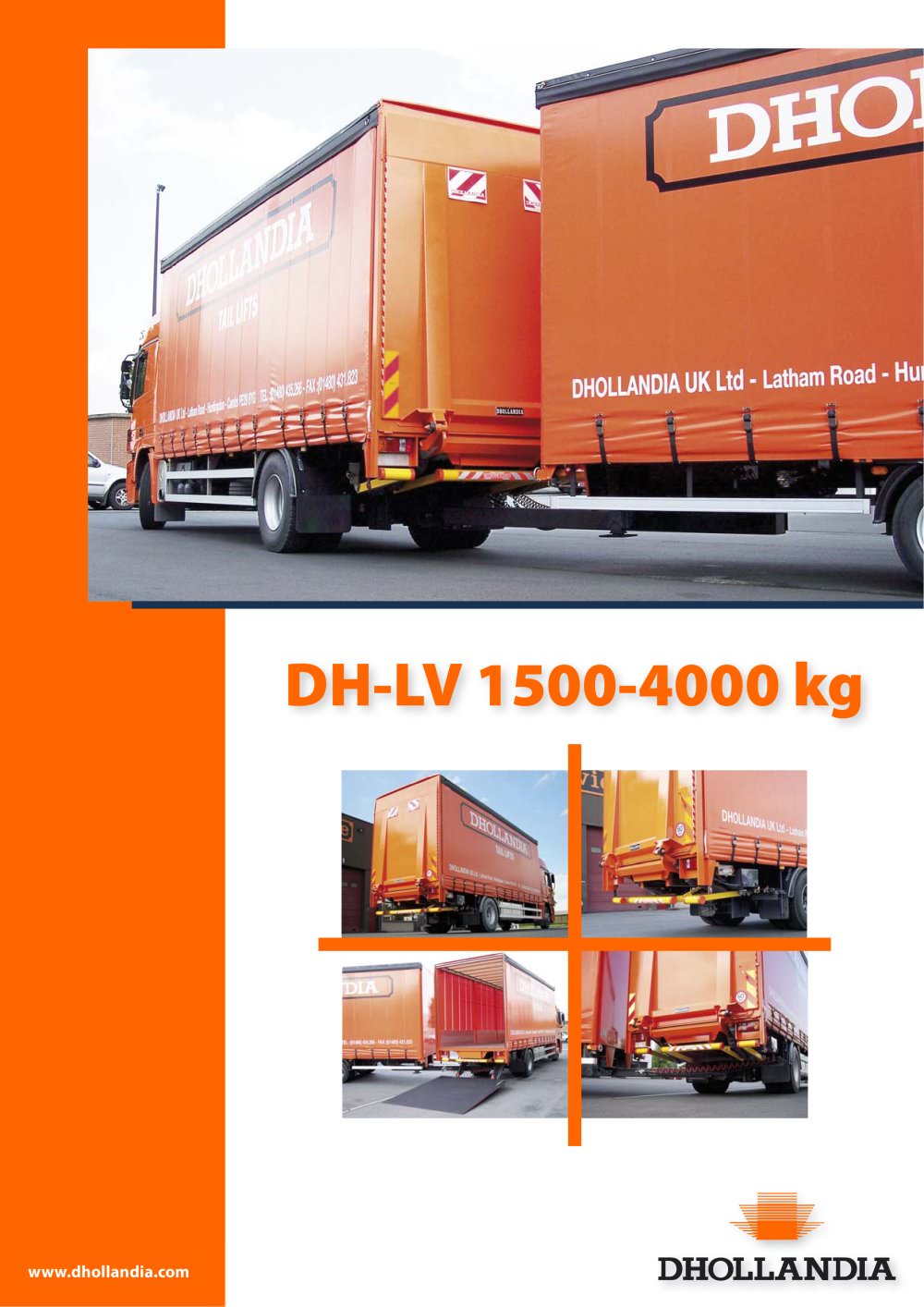

The DH-LV 1500-4000 kg cantilever lift is designed for trucks with a draw bar coupling below the chassis, suitable for use with a centre-axle trailer. It features an articulating bumper bar that adjusts for solo driving or when coupled with a trailer, allowing loading and unloading without uncoupling.

Special Points of Interest
The DH-LV shares components with the DH-LSU heavy duty lift but offers unique advantages:

• Compact Lift Frame: Maximizes clearance between the trailer coupling and lift frame, often eliminating the need for chassis cuts.
• 3-Piece Articulated Bumper Bar: Mounted to the lift frame, it ensures sufficient ground clearance, is easy to operate, and is resistant to technical malfunctions and damage.

Related Applications
For trailers with a turntable front axle, the clearance between the trailer's draw bar and the truck's tail lift can be insufficient during sharp turns, risking mechanical damage. Option S416 (lift arms type LMK) is available to maximize clearance and protect the lifting mechanism.

Capacity Chart
The lift supports a range of capacities from 500 kg to 9000 kg, accommodating various load requirements.
