Cantilever lifts > DH-LSP4

Cantilever lifts > DH-LSP4
4Pages

Catalog excerpts

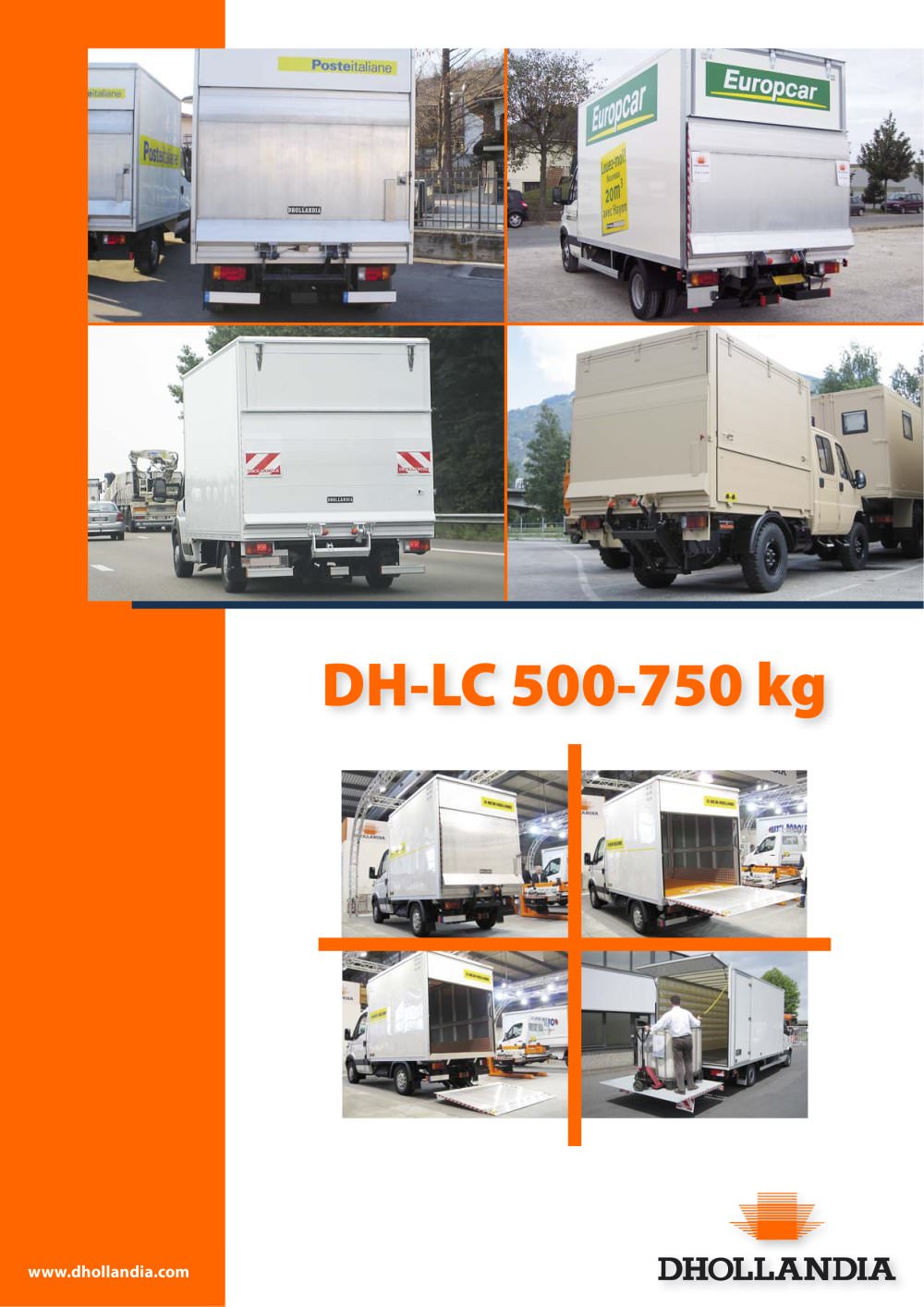

The 2-cylinder lift DH-LC 500-750 kg forms a compact and light-weight alternative for the benchmark- ing DH-LM with 4-cylinder technology. Thanks to its intrinsic simplicity, its low maintenance cost and its attractive pricing, this lift is ideal to equip rental vehicles and non-distribution commercial vehicles. The DH-LC is available with a wide variety of fitting interfaces, to suit most commercial panel vans and light trucks up to 7.5T GVW, as well as most small trailers and semi-trailers. General Specifications • Light weight aluminium platform, with profiles orientated in the...

Open the catalog to page 2

Main options (other options on request) S001 2-button wander lead with spiral cable S006 4-button foot control fitted S094 Built-in exterior controls 3+1 S090 Platform lights mounted S660...662 Various platform flags S215.M Manual roll stops S215.A Automatic roll stops Foldable cantilever platform to reduce wind resistance S314 Quick-fit mounting plates adjusted to various types mounted to the lift frame S275.H01 Platform with horizontal S600...603 Different platform seals vehicle body

Open the catalog to page 3

DH-LC2 500-750 kg A Application The DH-LC2 500-750 kg is a special execution of Dhollandia’s compact 2-cylinder tail lift, adapted to suit factory built panel vans with regular C-shaped chassis (Iveco Daily, Mercedes Vario…). It’s mounting system has been engineered to maximize the ground clearance under the lift frame, and it’s frame has been redesigned to reduce the cut-outs in the rear traverse of the vehicle floor to a negligible minimum. G General Specifications The DH-LC2 for factory built panel vans shares many characteristics and components with the standard DH-LC which is designed...

Open the catalog to page 4
