The DH-ESU heavy-duty tail lift is designed for extreme lift capacities ranging from 5000 to 9000 kg. It is primarily used for transporting heavy machinery such as forklifts and agricultural tractors. The platform depth is customizable to meet specific customer needs. Standard features include hydraulic stabilizing legs and a 4000 W fan-cooled electric motor. The lift can also be modified to function as a ramp, provided the chassis is adequately reinforced.

General Specifications

Platform: Made of reinforced steel, shot-blasted, and zinc sprayed, with steel rollers for ground protection.
Mechanical Characteristics: Features a reinforced lift frame for extreme capacities, automatic hydraulic tilting at ground level, and adjustable platform tilt.
Hydraulic Characteristics: Includes 2 or 3 single-acting central lift cylinders, electric safety valves, and accelerated lowering for higher capacity versions. The cylinder piston rods are made of chromed stainless steel.
Electrical Controls: Operates without electronic components, includes a battery switch with a removable key, and a 2-handed control system.
Fitting of the Lift: Requires coordination with the vehicle manufacturer for chassis work and fitting details.
Finish and Maintenance: Conforms to CE safety directives, with zinc-plated and chromed pins, and a 2K polyester primer coating.

Capacity Chart
The lift capacities range from 5000 to 9000 kg, with standard platform depths and widths available. Longer platforms and other widths are optional. The proper weight indications vary based on the execution of the tail lift.

Main Options
Options include a 2-button wander lead, various platform flags, a 4-button foot control, a battery box, platform lights, aluminum scuff plates, and mechanical locking pins. Additional options are available upon request.

Alternatives
Alternative models in the same capacity range include hydraulic ramps with single-piece or double-fold steel platforms.

Catalog excerpts

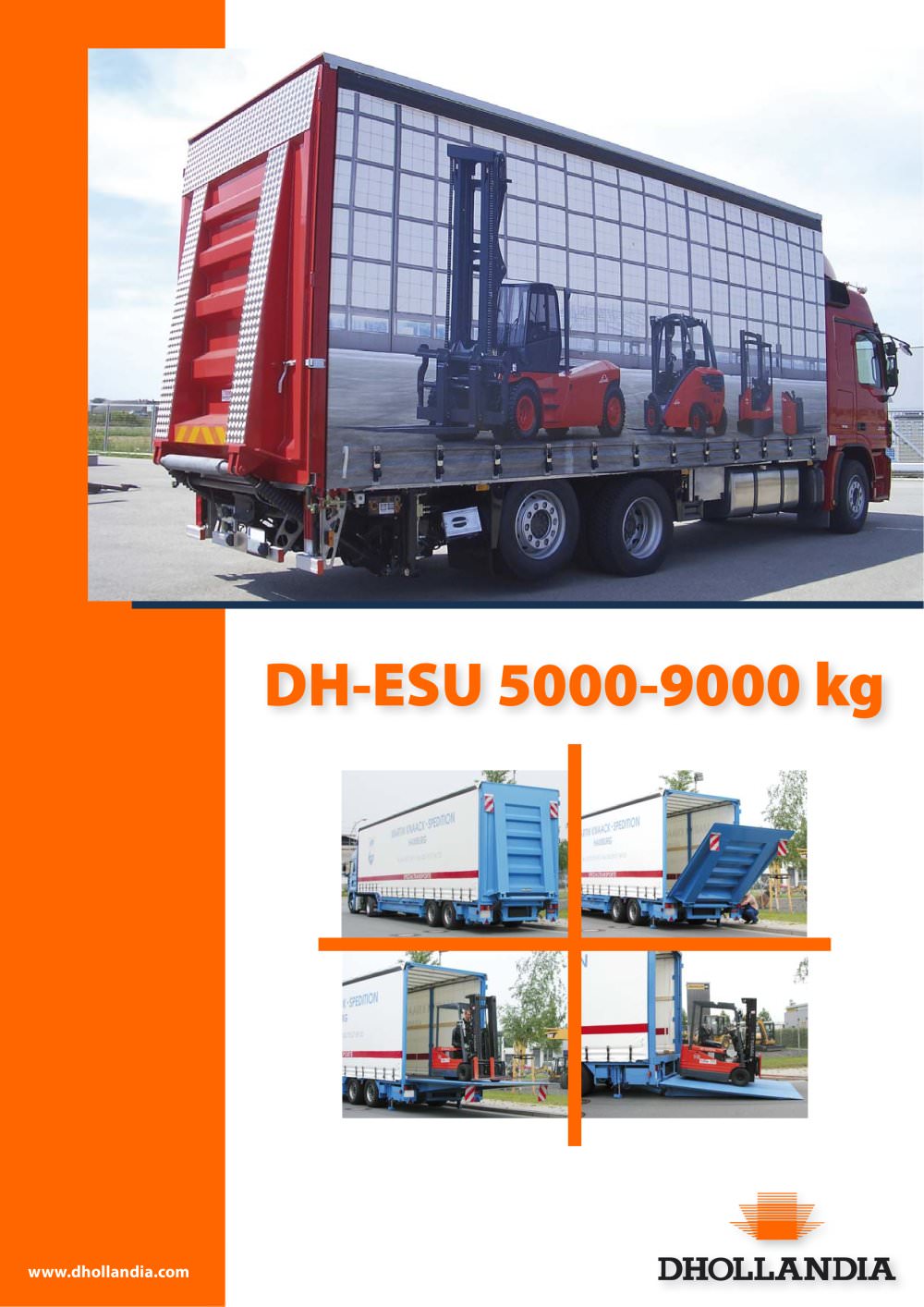

DH-ESU 5000-9000 kg A Application The heavy duty tail lift model DH-ESU has been designed for extreme lift capacities from 5000 to 9000 kg, and is mainly used for the transport of heavy machinery, forklifts, agricultural tractors etc… The platform depth is produced to meet individual customer requirements. In addition to the standard equipment, the DH-ESU is equipped with hydraulic stabilising legs and a powerful 4000 W fan cooled electric motor. On request, the DH-ESU can be modified to serve as a ramp. It is important to have the chassis sufficiently reinforced for the mounting of this type...

Open the catalog to page 2

• Technical specifications • Main options (other options on request) S001 2-button wander lead with S006 4-button foot control fitted S040 Battery box 24V- spiral cable onto the platform batteries not included S090 Platform lights mounted onto S660...662 Various platform flags S201 Steel platform flat between the platform the main beams S203 Extension of platform depth S273 Aluminium scuff plates to S370 Mechanical locking pins per 10 cm protect the steel platform under the lift arms

Open the catalog to page 3

S239.LSU Foldable platform with reinforced hinge construction (on request-subject to prior approval) S408 Inclination of the platform in S600...603 Various platform seals ramp position for the rear frame of the vehicle body • Alternatives in the same capacity range DH-AR 3T- 5T-9T-16T Hydraulic ramp with a single-piece steel platform DH-AR2 3T-5T-9T-16T Hydraulic ramp with a double-fold steel platform www.dhollandia.com • [email protected] • UK: [email protected]
