Product catalog summary

Materials of Construction
The BRS Resilient Seated Butterfly Valves are available in sizes from 2 to 36 inches. Materials used include cast iron, ductile iron, bronze, and stainless steel, selected based on valve size and application requirements to ensure durability and compliance with ASTM and AWWA standards.

Valve Selection
Designed for zero-leakage shutoff at specified pressure ratings, these valves support a maximum pipeline velocity of 20 feet per second. Detailed weight specifications are provided for wafer and lugged valve designs across different sizes.

Flow Characteristics
The valves meet several ANSI and AWWA standards, ensuring reliable performance. The document details inherent flow characteristics, providing Cv and Kv values for various valve sizes and opening percentages.

Ordering Information
Customers must specify valve style, size, end connection, seat material, body material, shaft material, and additional options like flange seals. A comprehensive guide is provided for constructing the order code based on these parameters.

Actuators
Various actuator options are described, including lever actuators with ten-position and infinite-position levers, manual gear actuators, and PowerRac® cylinder actuators. Each type offers precise control and durability, with specific ordering codes and mounting options.

Overview
The document provides technical specifications and dimensions for various actuators and resilient seated butterfly valves, including diaphragm actuators, Compak cylinder actuators, and BRS resilient seated butterfly valves.

Diaphragm Actuators
These actuators offer on-off or modulating control with spring-to-open or spring-to-close options, featuring external position indication and optional safety lockout devices. Refer to Bulletin 70.00-1 for technical details and Bulletin 70.00-2 for sizing information.

Compak Cylinder Actuators
Designed with a versatile rack-and-pinion mechanism, these actuators are available as double-acting or spring-return units. Their compact, modular design allows for low-profile assembly, matched to each valve's torque requirements for economical specification. Ordering information is in DeZURIK Bulletin 71.00-1.

BRS Resilient Seated Butterfly Valves
Detailed dimensions are provided for butterfly valves ranging from 2" to 36" (50mm to 900mm), including measurements for various components. Note that dimensions are subject to change, and certified drawings should be requested for precise piping layouts.

Additional Information
SPX Process Equipment is ISO 9001 certified. The company reserves the right to make design and material changes without notice. For further information, certified drawings, and local representatives, visit the SPX Process Equipment website or contact their sales and service department.

Catalog excerpts

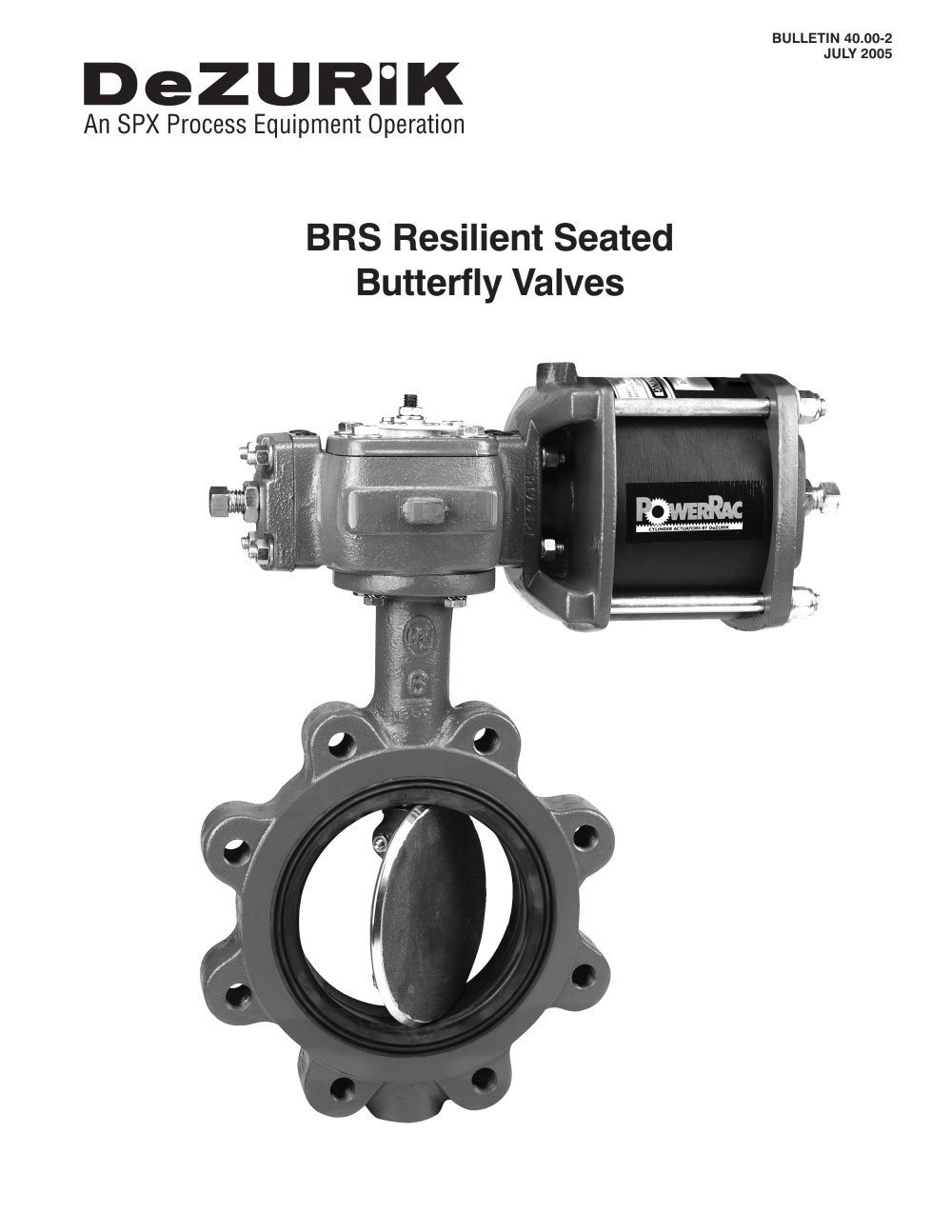

BULLETIN 40.00-2 JULY 2005 BRS Resilient Seated Butterfly Valves >

Open the catalog to page 1

Materials of Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Valve Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Flow Characteristic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Ordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

Open the catalog to page 3

ItemDescriptionMaterials > A1BodyCast Iron, ASTM A126 Class BDuctile Iron, ASTM A536 Grade 65-45-12 (meets AWWA C504)A2DiscBronze, ASTM B584/B763, Grade C84400Ductile Iron electroless nickel plated, ASTM A536 Grade 65-45-12 Ductile Iron with nickel edge, ASTM A536 Grade 65-45-12 (520") (meets AWWA C504) 316 stainless steel, ASTM 473, Grade CF-8M A3Shaft316 stainless steel, ASTM A276416 stainless steel, ASTM A582A4SeatXNBR - Carboxylic-Acrylonitrile-ButadieneNBR - Acrylonitrile-Butadiene CR - Chloroprene EPDM - Ethylene Propylene a Diene Terpolymer CSM - Chloro-Sulfonyl-Polyethylene EU - Polyether...

Open the catalog to page 5

ItemDescriptionMaterial > A1BodyCast Iron, ASTM A126 Class BDuctile Iron, ASTM A536, Grade 65-45-16 (meets AWWA C504)A2Disc316 stainless steel, ASTM 743, Grade CF-8MBronze, ASTM B584/B763, Grade C84400 Ductile Iron with nickel edge, ASTM A536, Grade 65-45-12(meets AWWA C504)316 stainless steel, ASTM 473, Grade CF-8M A3Shaft316 stainless steel, ASTM A276416 stainless steel, ASTM A582A4Stud18-8 stainless steel A5PackingNBR - Acrylonitrile-Butadiene PTFE A6BearingFiber reinforced PTFE A7Thrust BearingTeflon with 304 stainless steel backing A8Retaining Ring302 stainless steel A9Spring302 stainless...

Open the catalog to page 7

* Add to valve weights above if valve has bronze disc. 24" (600mm) - 35 lbs (15.9 kg), 30" (750mm) - 75 lbs (34.0 kg), 36" (900mm) - 135 lbs (61.2 kg) >

Open the catalog to page 8

Inherent Flow Characteristics Applicable Standards > ANSI B16.1 Conforms to ANSI Class 125 flange drilling, material, testing and exceeds the wall thickness. ANSI B16.5 Conforms to ANSI Class 150 flange drilling. ANSI B16.104 Exceeds Class VI shutoff requirements. AWWA Class 75B Diameter of stainless steel shaft meets AWWA Class 75B standard. AWWA Class 150B Body wall thickness exceeds the AWWA Class 150B standard for butterfly valves. AWWA C504 The welded nickel edge on the 436" cast iron disc conforms to AWWA C504. MSS SP-25 Markings and identification conform to the requirements. International...

Open the catalog to page 9

BRS 6, W1, CI, NBR, NBR, CI- S4 * > Valve Style Valve Size End Style Body Material Seat Material Shaft Seal Disc Material Shaft Material Actuator Code Trim Combination Valve Style Body Material Give size code as follows: Give body material code as follows: > BRS = Butterfly Rubber Seated - Includes flange seals CI = Cast IronDI = Ductile Iron Valve Size Give size code as follows: Shaft Seat > 2 = 2" (50mm) 12 = 12" (300mm) 2.5 = 2.5" (65mm) 14 = 14" (350mm) 3 = 3" (80mm) 16 = 16" (400mm) 4 = 4" (100mm) 18 = 18" (450mm)) 5 = 5" (125mm) 20 = 20" (500mm) 6 = 6" (150mm) 24 = 24" (600mm) 8 = 8" (200mm)...

Open the catalog to page 10

Lever Style Size Range Order Code > 10 Position Lever 26" (50֖150mm) LT 812" (200֖300mm) LT Infinite Position Lever 26" (50֖150mm) LI Seat Side Seat Side > Standard Position 90а Position > Seat Side Seat Side Ordering Example: BRS,6,W1,CI,NBR,CI-S4*LT >

Open the catalog to page 11

PowerRac > ή double-acting and spring-return actuators feature a proven rack-and-pinion design. PowerRac > provides high torque output throughout the full stroke for accurate control. Refer to Bulletin 74.00-2 for technical details, 74.00-1 for design and construction information, and Bulletin 74.00-4 for sizing information. > DeZURIK spring-diaphragm actuators feature all steel, cast iron and stainless steel construction with no aluminum parts to corrode in caustic environments. The output shaft is supported at the top and bottom with bronze bearings that absorb side thrust and ensure smooth,...

Open the catalog to page 12
