Car Operating Panel

Product catalog summary

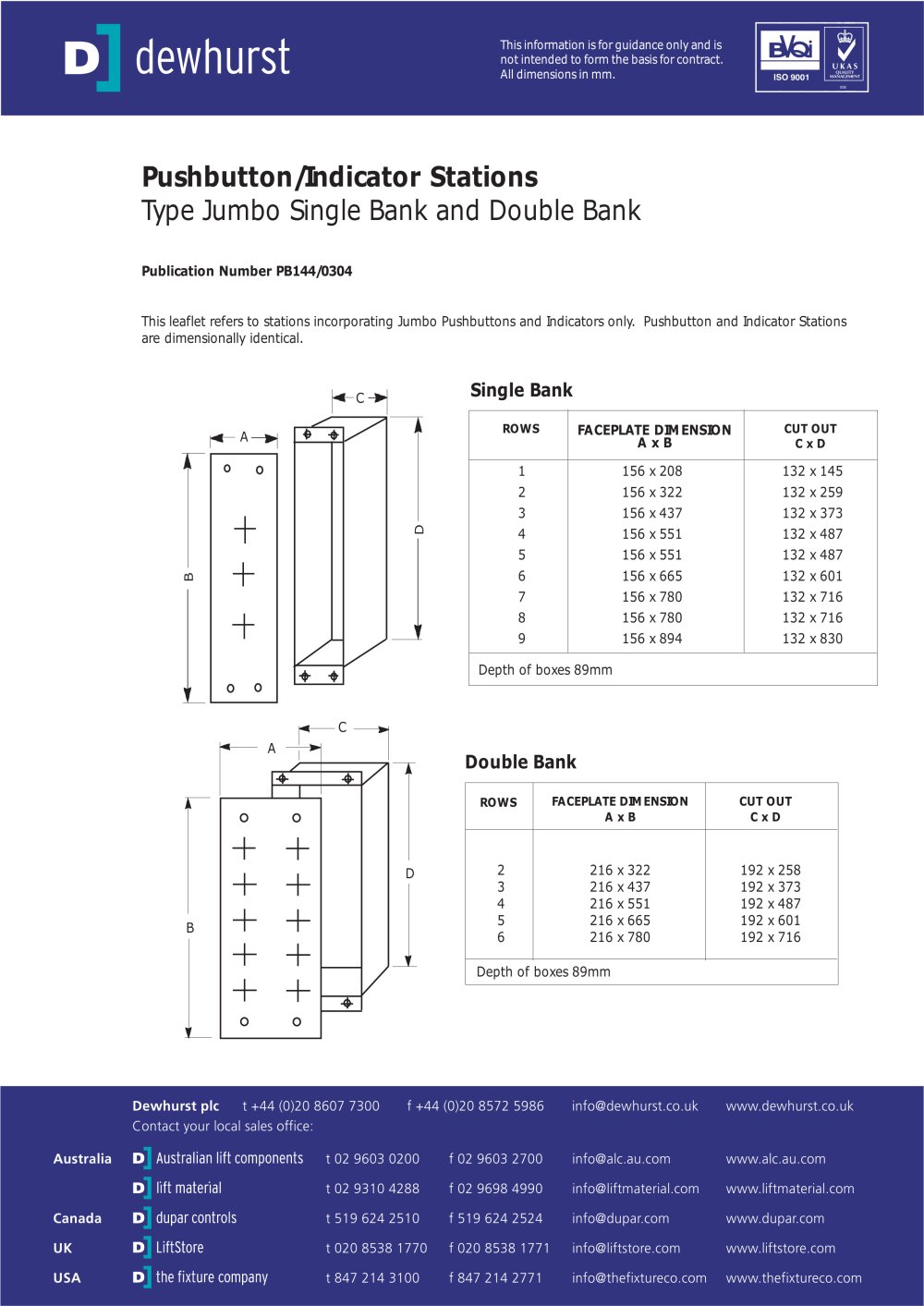

Overview: This document provides specifications for Jumbo Pushbutton and Indicator Stations, available in both single and double bank configurations. The stations are dimensionally identical, with detailed measurements provided for faceplate dimensions and cut-out sizes.

Specifications:

Double Bank: Available in configurations with 2 to 6 rows. Faceplate dimensions range from 216 x 322 mm to 216 x 780 mm, with corresponding cut-out dimensions from 192 x 258 mm to 192 x 716 mm. The depth of the boxes is consistently 89 mm.
Single Bank: Available in configurations with 1 to 9 rows. Faceplate dimensions range from 156 x 208 mm to 156 x 894 mm, with corresponding cut-out dimensions from 132 x 145 mm to 132 x 830 mm. The depth of the boxes is also 89 mm.

Contact Information: Dewhurst plc provides contact details for various regional offices, including Australia, Canada, the UK, and the USA, for further inquiries and sales support.

Disclaimer: The information provided is for guidance only and is not intended to form the basis for a contract. All dimensions are in millimeters.

Catalog excerpts

This information is for guidance only and is not intended to form the basis for contract. All dimensions in mm. Publication Number PB144/0304 This leaflet refers to stations incorporating Jumbo Pushbuttons and Indicators only. Pushbutton and Indicator Stationsare dimensionally identical. C > A > ROWS FACEPLATE DIMENSIONA x B > CUT OUTC x D B D Depth of boxes 89mm 1 156 x 208132 x 1452 156 x 322132 x 2593 156 x 437132 x 3734 156 x 551132 x 4875 156 x 551132 x 4876 156 x 665132 x 6017 156 x 780132 x 7168 156 x 780132 x 7169 156 x 894132 x 830 C A > ROWS FACEPLATE DIMENSIONA x BCUT OUTC x D D 23 4 5 6216 x 322216 x 437 216 x 551 216 x 665 216 x 780192 x 258192 x 373 192 x 487 192 x 601 192 x 716 B Depth of boxes 89mm Dewhurst plc t +44 (0)20 8607 7300 f +44 (0)20 8572 5986 [email protected] www.dewhurst.co.uk Contact your local sales office: Dewhurst plc t +44 (0)20 8607 7300 f +44 (0)20 8572 5986 [email protected] www.dewhurst.co.ukContact your local sales office: Australia t 02 9603 0200 f 02 9603 2700 [email protected] www.alc.au.com t 02 9310 4288 f 02 9698 4990 [email protected] www.liftmaterial.com >
