Product catalog summary

Overview: The IPIX 700 Series is a wireless, point-of-care mobile computer system designed for hospital and healthcare environments. It addresses the challenges of using mobile computers in clinical settings by providing high-performance computing for electronic patient records, electronic prescribing, e-booking, PACS, RIS applications, and data management.

Main Features:

Integrated high-performance Pentium-M™ CPU with a 17” or 20” LCD monitor in a single sealed unit, allowing for full clean down and disinfection.
Constructed from anti-microbial plastic for enhanced hygiene.
Lightweight, sealed lead acid battery providing 8-10 hours of operation.
Compact, lightweight, and easily maneuverable cart with adjustable height.
Secure attachment of CPU and monitor to the cart.
Optional integrated 802.11 b/g wireless LAN and waterproof keyboard and mouse.

Technical Specifications:

CPU: Standard Mobile Intel® Pentium-M™ Processor, 1.6 GHz with 1MB cache; options include Intel Celeron-M, 1.3 GHz with 512KB cache, and Intel LV Pentium-M™, 1.4 GHz with 2MB cache.
System Memory: 256MB to 1GB DDR DRAM.
Data Storage: Minimum 40 GB HDD.
Ports: 2 USB, 1 DVI-I, 1 Serial RS-232, 1 PCMCIA/CardBus slot, 1 compact flash socket, LAN 10/100 BaseT Ethernet, optional WIFI.
Video: Up to 64MB video memory shared with system memory.
LCD Screen: 17” diagonal with 1280x1024 SXGA resolution or 20” diagonal with 1600x1200 UXGA resolution.
Touchscreen: Optional 5-wire resistive.
Operating System: Windows™ 2000 or XP.
Compliance: CE, EN60601.

D-Cart Specifications:

Height adjustable work surface from 30" to 40.5".
Work surface area of 11" x 18.5".
Keyboard tray with adjustable angle and slide-out mouse tray.
Base dimensions of 18" x 18" with 5" diameter swivel wheels.

Battery:

Sealed lead acid battery with a capacity of 20ah.
Weight less than 20 lbs (9kg).
Universal power input of 90-264 VAC.
5-level charge indicator LEDs.

Contact Information: Devlin Electronics Limited, Unit D1, Grafton Way, Basingstoke, Hampshire RG22 6HZ, UK. Tel: +44(0)1256 467367, Email: [email protected], Website: www.devlin.co.uk

Catalog excerpts

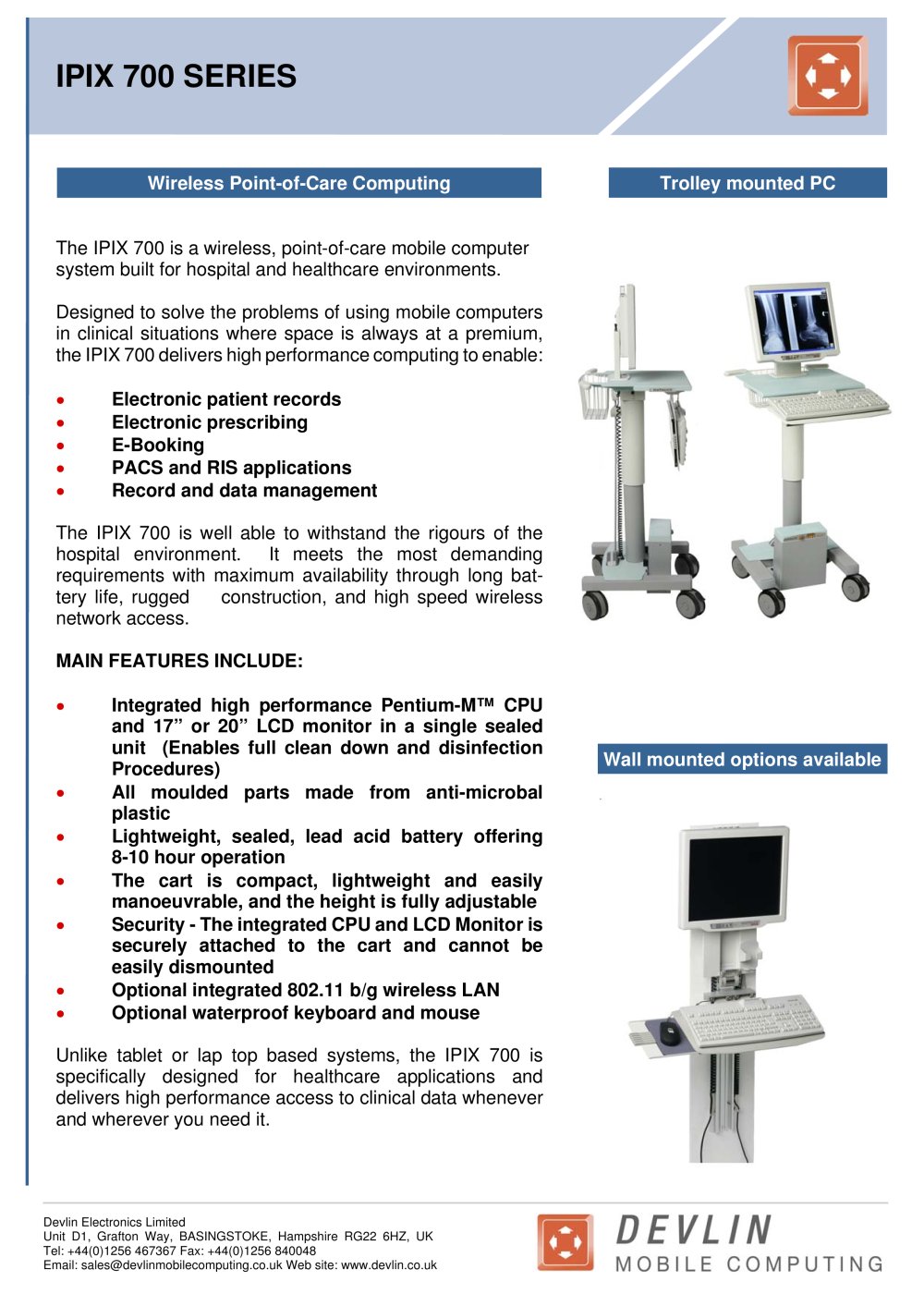

CPU Option 1 Touchscreen CPU Standard 5-wire resistive Intel Celeron-M, 1.3 Ghz with 512KB cache Mobile Intel Pentium-MΙ Processor, 1.6 Ghz with 1MB cache (second level) (optional) (optional) CPU Option 2 Video LCD screen Weight Up to 64MB video memory (shared with system memory) 11.0 lbs (5 kg) Colour active matrix: -17 diagonal, 1280x1024 SXGA resolution -20Ԕ diagonal, 1600x1200 UXGA resolution Intel LV Pentium-M, 1.4Ghz with 2MB cache System mem. Size 15.5ٔ x 13.5 x 2.4Ԕ (393 x 343 x 61mm) 256MB to 1GB DDR DRAM Data storage O.S. Windows 2000 or XP 40 GB minimum HDD Sound Ports Compliance 2...
