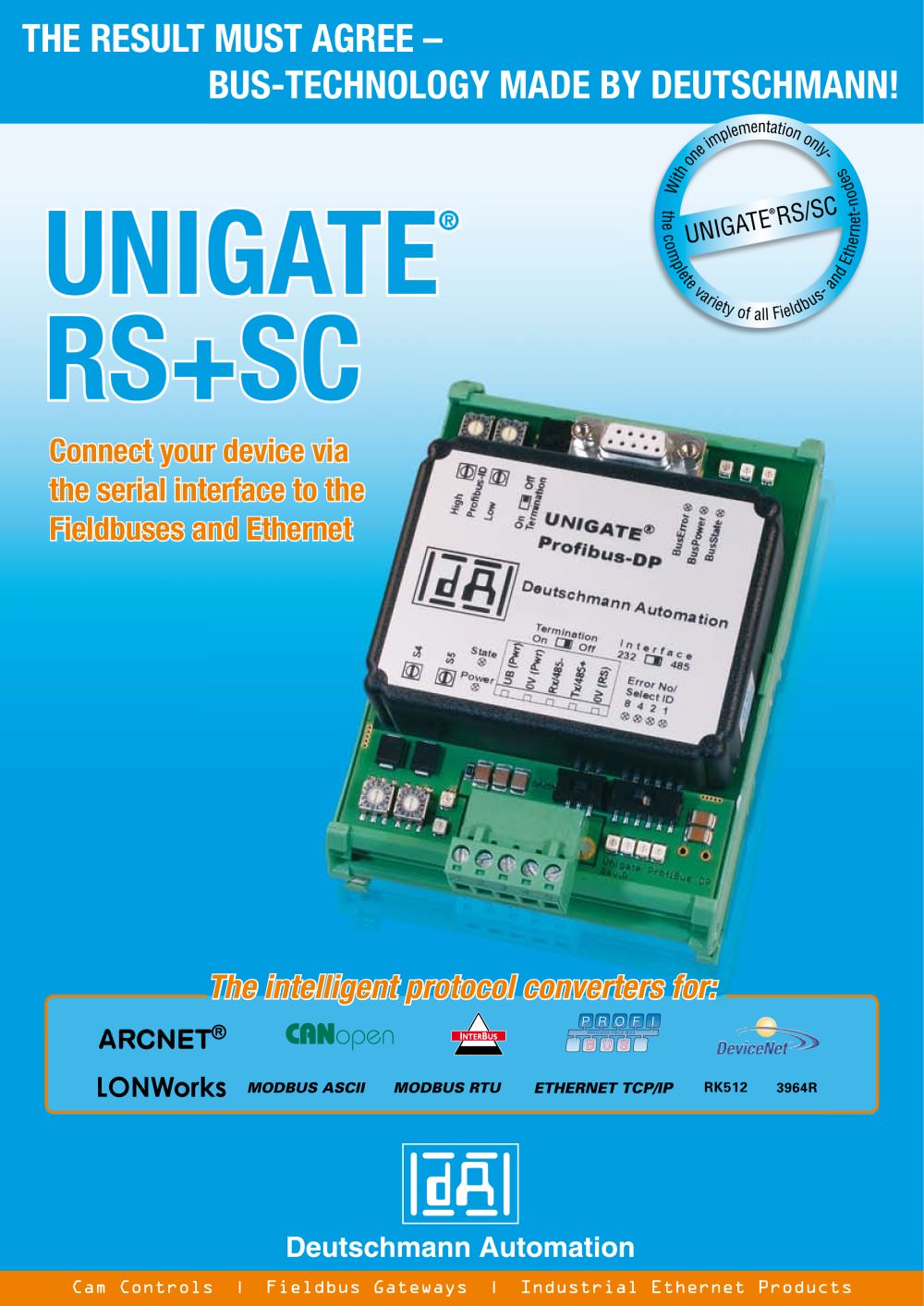

Connect your device via the serial interface to the Fieldbuses and Ethernet > MODBUS ASCII MODBUS RTU ETHERNET TCP/I P RK512 3964 R size="-5">

Two solutions for all devices with serial interface The UNIGATE > Gateway by Deutschmann connects devices, such as auto-mation components via their serial interface to Fieldbuses and Ethernet. Here UNIGATE a uto - n et. > ή takes on the task of a protocol converter and converts the different interfaces. UNIGATE h e > RS/SC features the interfaces RS232 and RS485 or RS232 and RS422.With the type series UNIGATE d > ETHERNET TCP/I P ή RS you can either configure the ad-aptation to your product or to the protocol or the capability of the UNIGATE - > SC protocol converter can be expanded considerably...

s All UNIGATE > RS/SC-products have identical mechanical dimensions and the same structure on the serial side. The Fieldbus- or the Ethernet-side complies with the standards or the commer- cially available versions. Configurations or Scripts that have been generated for one bus can be used for other buses more or less without any changes. s UNIGATE > ή SC-products offer you the full flexibility by free programming of a Script through the PC-tool Protocol DeveloperӔ. This way also extensive customized protocols can be copied and/or the data can be further processed as desired and you do not have...

■ ■ ■ Interfaces Optional RS232 and RS485 switchable on board or RS232 and RS422 switchable Baud rates of the serial interface 110 Baud up to 625 KBaud Fixing Standard device: DIN-rail module with integrated grounding. Optional pure circuit board for installation on own mechanics. Optional different housings in high-grade steel and aluminum pressure die casting to protection type IP67 ■ ■ Input buffer RS-side UNIGATE RS-connection and supply voltage Through 5pol. screw-plug connector, optional through 9pol. D-SUB (standard at RS232/RS422-combination) > SC: 1024 bytes input- and output-buffer...
