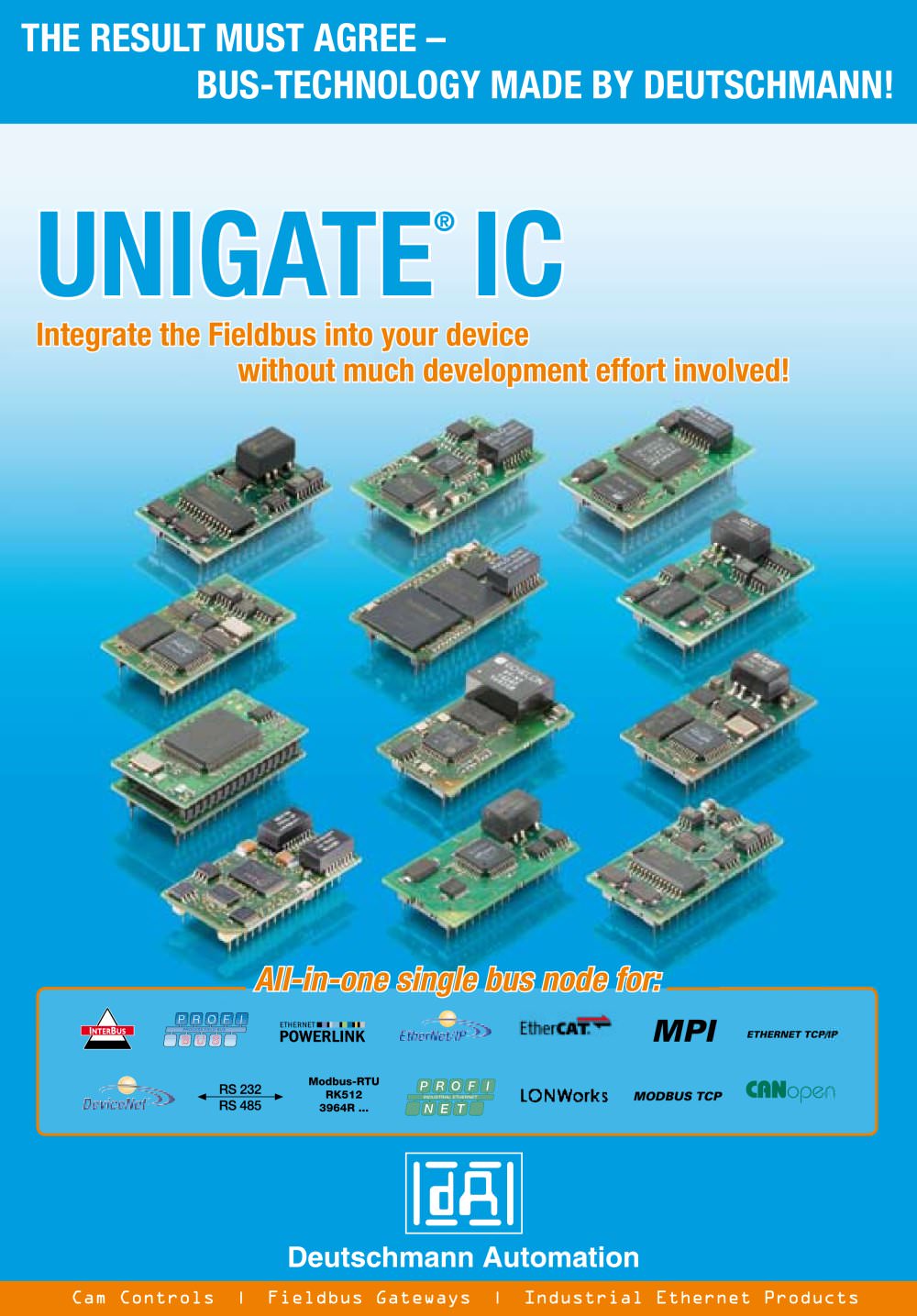

The Deutschmann UNIGATE > ή IC is a complete singlechip bus-solution in a 32-DIL-housing. On a space of 45 x 25 mm only, the device contains all necessary components, such as microcontrollers, Flash, RAM, bus-chip and of course the analog com-ponents, such as optocoupler and bus driver. The UNIGATE > IC is connected to the microprocessor of the terminal equipment or it can be operated stand-alone. UNIGATE > ή ICs are certified and/or tested on the bus and through numerous applications, the problem-free operation with all marketable master systems has been proven.The integrated microprocessor...

In case UNIGATE > IC is used in systems with own microprocessor, it is connected to the processor of the final product via an UART interface. The UNIGATE > ή IC takes on the complete communication part including the bus-side and as a result it relieves the device processor of this considerable effort. The communication between the device processor and UNIGATE > IC is controlled by the Script. Through the Script technology it is possible to reproduce complex protocols, data can be processed, buffered between, charged, etc. And the Firmware of the terminal equipment is not touched. > The connection...

ETHERNET TCP/I P ETHERNET TCP/I P Assembly consists of standard components > Connection to the host processor via a UART-interface > Expandable via synchronous-serial interface for instance for Stand-alone operation (applications without processors) ֖ Shift register connection Switches for bus-ID, LEDs ֖ Analog/digital converters, e. g. 4-20mA f or s ) Modbus-RTURK5123964R ... > Simple integration into your electronic system > All required components are included in the IC > Integrated potential separation and optocoupler > With one development only the most important Fieldbuses and Industrial...

You are rather inflexible with the usual configuration tools for Protocol Converters and Gateways and you have to stick to standard specifications. Adapting the Firmware to a certain protocol or observing a fixed way of proceeding is unwanted or too extensive, particularly in case of an existing software. Subsequent changes and customized adaptations are hardly pos- sible. A profound knowledge of the buses is partially expected. For that reason the Deutschmann Script language came into being in the year 1999 already. Our customer only has to pro-cess the data of the bus and he does not have to...

On the right side of the window (picture 1) you see a Script, that shows the simple structure of the syntax. The Protocol Developer is meant as a tool for an easy generation of a Script for our Script Gateways. Its operation is exactly aimed at this use.Typical for Windows Script commands can be added by means of the mouse or the keyboard. As far as defined and required for the corresponding command, the dialog to the corresponding command is displayed, and after entering the values the right text is automatically added to the Script. > After the Script was generated it is compiled. The resulting...

For each Script command the scope of de- livery of the free PROTOCOL DEVELOPER also includes a commented example Script. More support is available from our free Hotline and on our website the current ver-sions of our instruction manuals and the software tools are also available free of charge (www.deutschmann.de). > Picture 7: Extensive library for example Scripts No changes required in your own Firmware > Flexible and powerful Script language; especially generated for the bus communication > Easy to handle. Based upon current tools, such as C++ > On request customized commands, e. g. in case...
