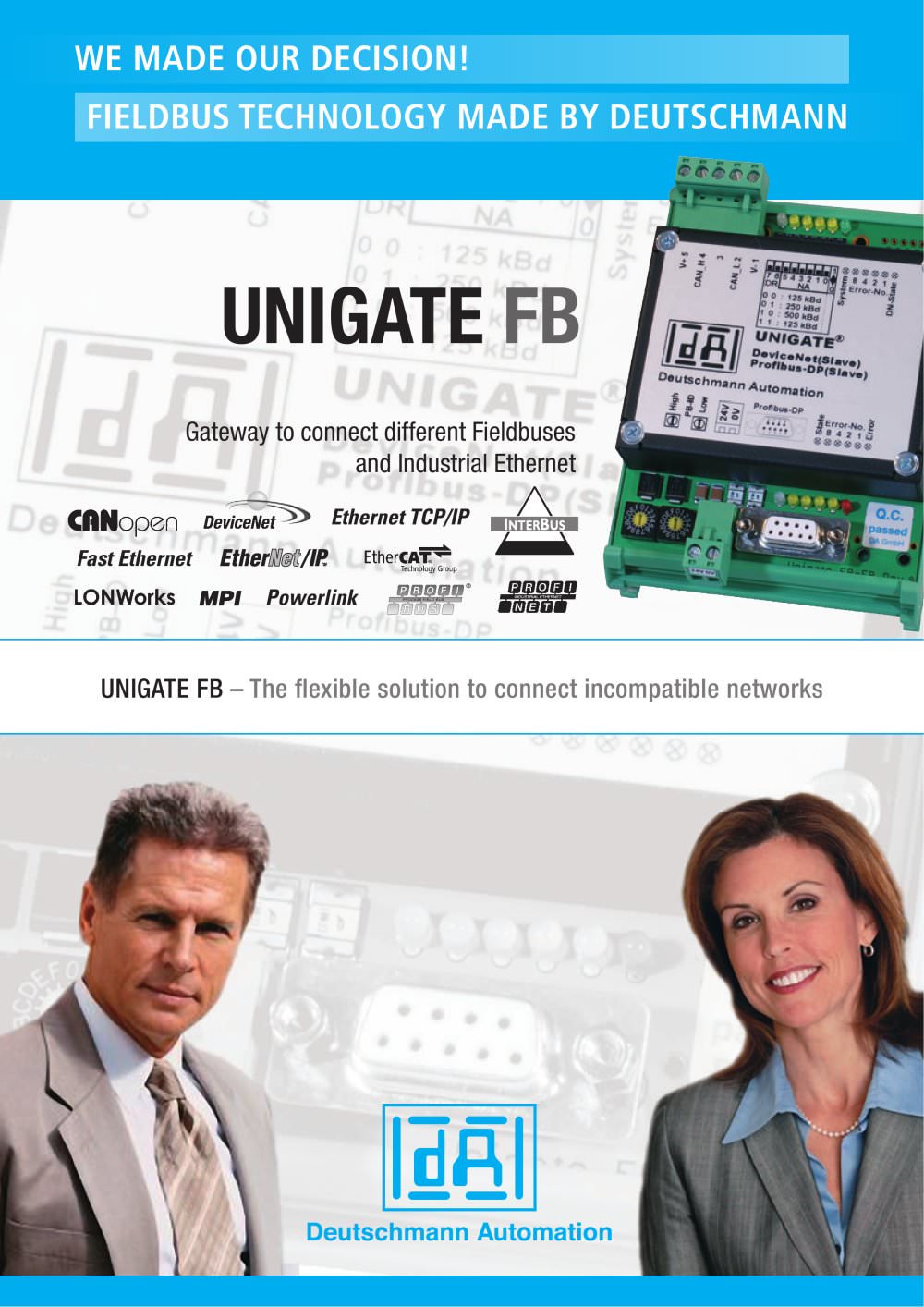

WE MADE OUR DECISION! FIELDBUS TECHNOLOGY MADE BY DEUTSCHMANN UNIGATE FB Gateway to connect different Fieldbuses and Industrial Ethernet Ethernet TCP/IP Fast Ethernet Powerlink UNIGATE FB The flexible solution to connect incompatible networks

Connecting incompatible networks In the field of automatic control many different Fieldbuses and Industrial Ethernet became established worldwide. Again and again the task of interconnecting these incompatible networks comes up. The UNIGATE FB-series was created exactly for that task. The series contains Fieldbus-Slave as well as Industrial Ethernet versions. The UNIGATE FB is designed as DIN-rail module and contains the selected Fieldbuses or Ethernet in the mechanical variant carried out in the respective standard. Internally the product is realized by using two UNIGATE ICmodules that are mounted...

General description All UNIGATE FB-products have identical mechanical dimensions and the same structure, where the Fieldbus- or Ethernet-side corresponds to the standards or the commercially available versions. UNIGATE FB-products offer you the full flexibility by free programming of a Script through the PC-tool ,,Protocol Developer". This way also complex tasks can be realized. Available Fieldbuses and Industrial Ethernet: Netzwerk 2 Ethernet TCP/IP Fast Ethernet Netzwerk 1 Example: DeviceNet Powerlink Example: ProfibusDP Slave

You receive the configuration tool WINGATE, the Protocol Developer for Script generation as well as extensive Script examples, device description files and much more free of charge. For further information and the mentioned tools please log on to our website at www.deutschmann.de General technical data for all versions Fixing Standard device: DIN-rail module with integrated grounding Optional pure circuit board for installation on own machanics Optional different housings in plastic, high-grade steel, aluminum pressure die casting to protection type IP67 Through 2pol. screw-plug connector 10.8...
