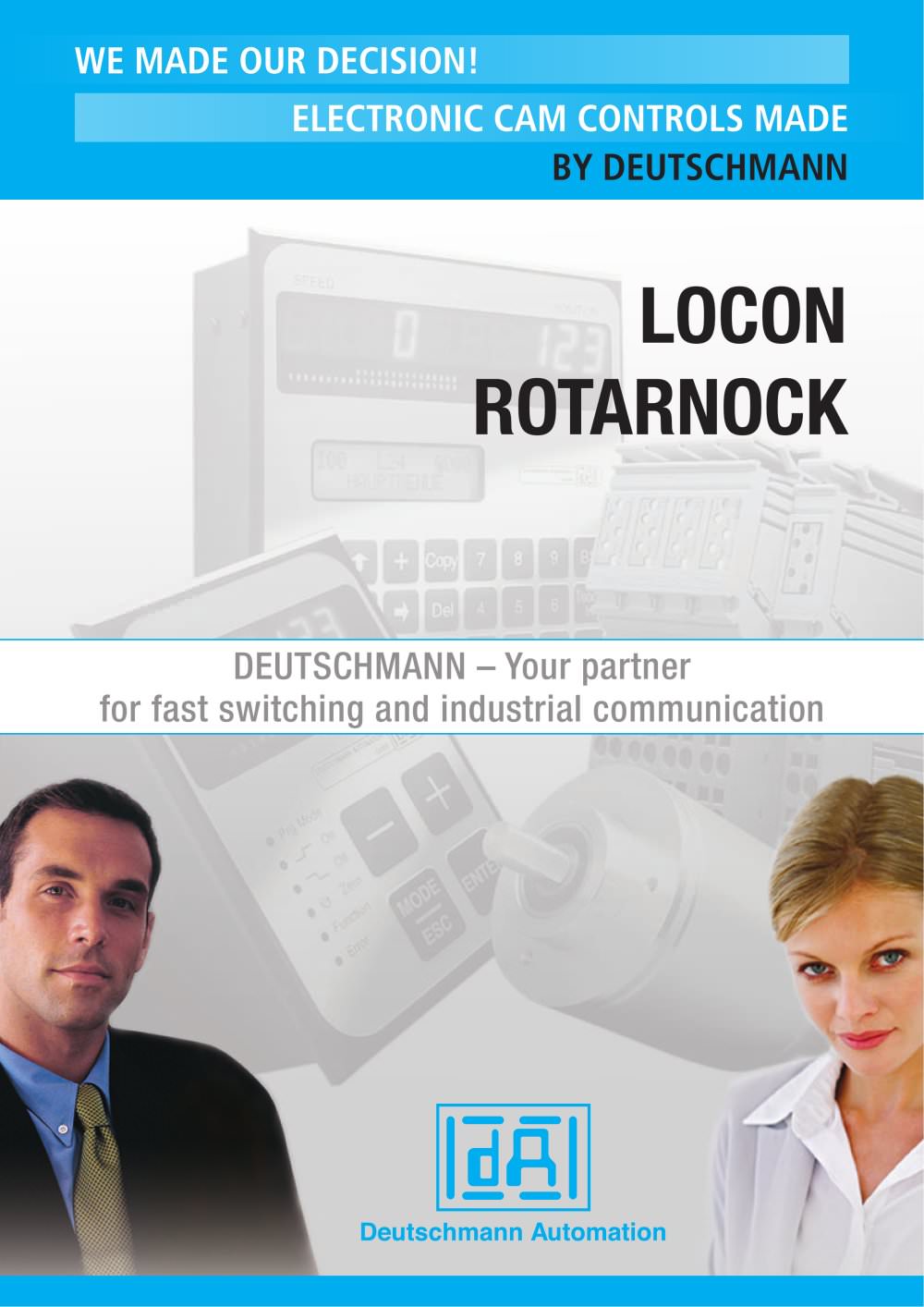

WE MADE OUR DECISION! ELECTRONIC CAM CONTROLS MADE BY DEUTSCHMANN LOCON ROTARNOCK DEUTSCHMANN Your partner for fast switching and industrial communication

Deutschmann Automation GmbH & Co. KG Development and production of electronic cam controls since 1982. Since 1990 the brand names LOCON and ROTARNOCK stand for reliable and fast electronic cam controls. LOCON The classic concept of separate control and separate actual-value acquisition. ROTARNOCK ͭ The intelligent solution: Electronic cam controls and actual-value acquisition combined in one housing. We do not rest and we are steadily working on the further development of the products and the expansion of our product range. So new models have been created in order to adapt the LOCON- and ROTARNOCK-series...

LOCON 200 Fast ular d and mo Expansion module I/O8 With this module LOCON 200 is expanded by 8 I/Os up to the maximum configuration level of 144 I/Os stepby-step. The expansion module contains its own processor. Therefore, the switching accuracy (cycle time) is independent of the LOCON 200(-PB) basic module or in other words: the configuration-dependent cycle time remains the same independent of the configuration level. In the I/O8, the idle time can be configured in a module-related way. Besides, the device supports logic functions. That way logic connections can be realized in a module-related...

LOCON 100 Deutschmann Automation GmbH & Co. KG fl Powerau sible n and exp Expansion module I/O32 With this module the basic device LOCON 100(-PB) is expanded by 32 to a total of 48 I/Os. The expansion module does not contain an own processor. Therefore, the switching accuracy (cycle time) depends on the LOCON 100(-PB), its configuration and programmed data records. LOCON 100 consists of a basic unit with a total of 16 I/Os. They can be configured depending on the respective application. If, for instance, you require a 9-bit encoder only, other encoder connections are not wasted but can be put...

LOCON 24, 48, 64 The onals ncti multifu The position recording at this model-series can be carried out either with incremental encoders, absolute encoders parallel up to 13 bits and with SSI-systems 24 bits. Here it does not make a difference whether it is a rotary encoder or for instance a linear measuring system. Optionally, LOCON 24 is available with 16 inputs for logic connections (simple PLC-function). This allows simple tasks to be relocated from the PLC to the cam control, thus performing these tasks much faster or enable-functions can be realized easily at a lower cost. Further this performance...

LOCON 16, LOCON 17 Deutschmann Automation GmbH & Co. KG The compact solution with DIN size of 72 x 96 mm (W x H) and an overall depth of only 70 mm. With integrated operating unit the device is mounted in the front plate, the version without keypad is mounted on a DIN-rail. The "four-key operator interface" has proven its worth in thousands of applications and can be operated easily after a brief training period. 16 outputs, 16 programs, blockwise and bitwise idle time compensation are available as standard in the basic unit. nd satileaat Ver mp c co LOCON 16, 17 with front plate IP65 LOCON 16,...

The ROTARNOCK-family The wiring effort is reduced since no additional rotary encoder has to be wired up. And the Profibus-version ROTARNOCK 100 unfolds its cost advantages even more. ROTARNOCK 80 With the ROTARNOCK-series Deutschmann Automation took a new innovative path. The entire cam control was integrated in the housing of the absolute encoder. This saves work and money. The wiring of the encoder can be dispensed with entirely. The outputs of the cam control are applied directly to the device via its connector. The devices ROTARNOCK 80 and 100 are available with integrated Profibus-interface....

Profibus-connection The devices ROTARNOCK 80 and 100 as well as the devices LOCON 100 and 200 are available with integrated Profibus-interface. The device versions with Profibus can be connected easily to SIEMENS SIMATIC S7 and other PLCs and Soft-PLCs. The data exchange between the PLC and the cam control is carried out via a data component. The data component for S7 can be generated by the user himself by means of the data component generator that is available free of charge. A data component in the version required in each case is generated by the data component generator, so that no unnecessary...

DB generator PC-software data component generator In a simple manner the program makes it possible to generate an AWL source file. Due to the clear arrangement of the component options they can be entered fast and easily. By means of these settings the program generates the AWL source file. On the basis of a configuration file the program receives information on parameters and the size of this component. While initializing the program this file is read. It is also possible to read this file at a later time again. Generating the S7-program code έ fast and easy After the program has been started,...

Display and control units TERM 6 The small ones Deutschmann Automation GmbH & Co. KG The "four-key operation" which has proven its worth over the years in countless applications can be operated easily after a short familiarization period only. A clear structure and practical symbols on the seven-segment display, in conjunction with the function LEDs, made this interface very popular. The integrated and switchable RS232- and RS485interfaces allow communication with any Deutschmann cam control. Besides the version for front-panel installation, also a version for DIN-rail mounting and a portable...

TERM 24 The compact ones This multi-lingual menu driven user-interface in connection with the decimal keypad and the function keys offers a high level of convenience. Encoder position and speed are displayed simultaneously on the seven-segment display. Depending on the kind of application, you can choose between the housing versions IP54 and IP65. This terminal can be used with any Deutschmann cam control thanks to the RS232- or RS485-interface TERM 24 front plate IP54 TERM 24 front plate IP65 Dynamic switching accelerator SPEEDY Switching on and off magnetic controlled connect elements lead...
