Production Range 2009
6Pages

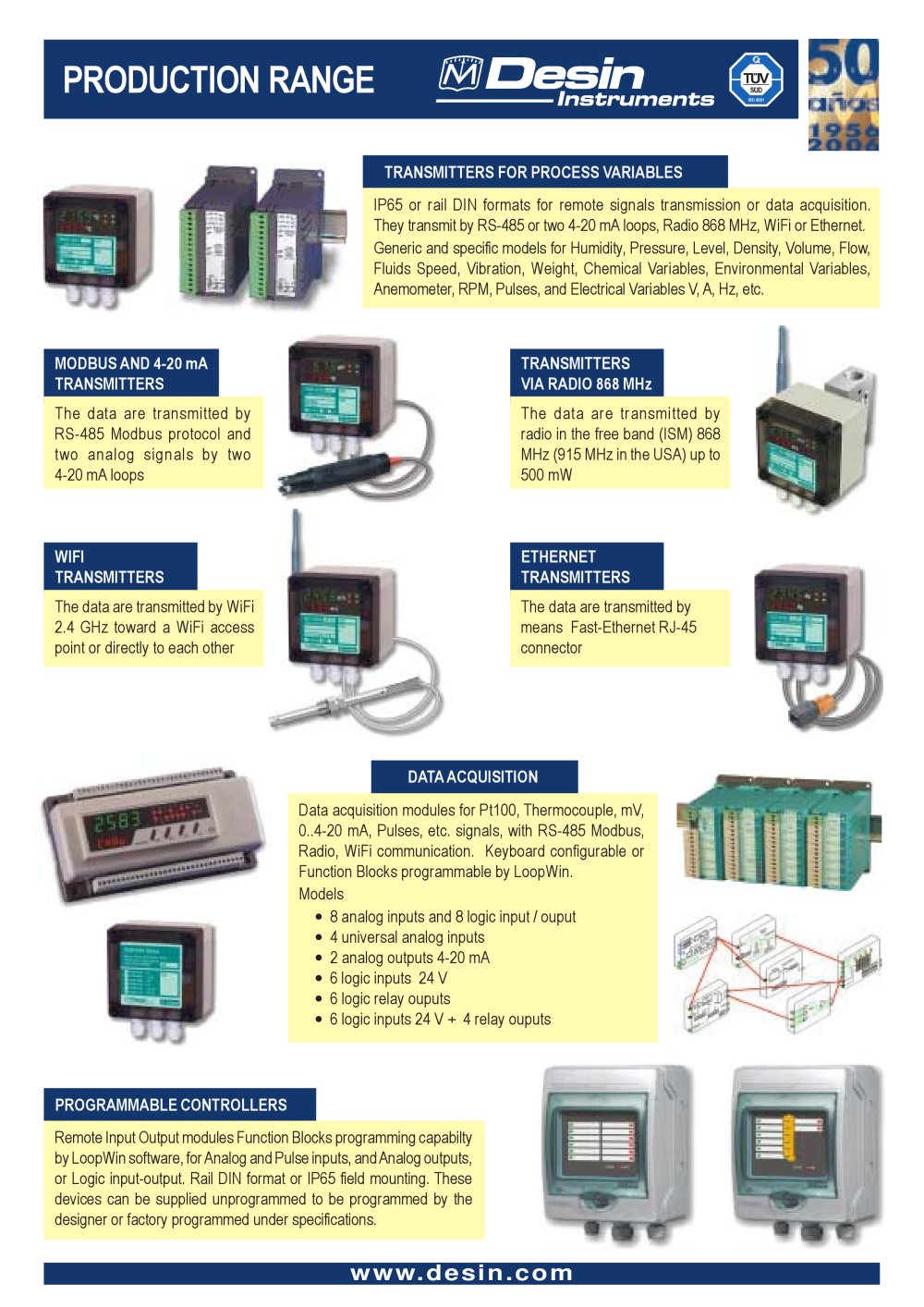

TRANSMITTERS FOR PROCESS VARIABLES IP65 or rail DIN formats for remote signals transmission or data acquisition.They transmit by RS-485 or two 4-20 mA loops, Radio 868 MHz, WiFi or Ethernet.Generic and specific models for Humidity, Pressure, Level, Density, Volume, Flow,Fluids Speed, Vibration, Weight, Chemical Variables, Environmental Variables, Anemometer, RPM, Pulses, and Electrical Variables V, A, Hz, etc. MODBUS AND 4-20 mATRANSMITTERS TRANSMITTERSVIA RADIO 868 MHz The data are transmitted byRS-485 Modbus protocol and two analog signals by two 4-20 mA loops The data are transmitted by radio in the free band (ISM) 868 MHz (915 MHz in the USA) up to 500 mW ETHERNETTRANSMITTERS WIFITRANSMITTERS The data are transmitted bymeans Fast-Ethernet RJ-45 connector The data are transmitted by WiFi2.4 GHz toward a WiFi access point or directly to each other DATA ACQUISITION Data acquisition modules for Pt100, Thermocouple, mV, 0..4-20 mA, Pulses, etc. signals, with RS-485 Modbus, Radio, WiFi communication. Keyboard configurable or Function Blocks programmable by LoopWin.Models ? 8 analog inputs and 8 logic input / ouput ? 4 universal analog inputs ? 2 analog outputs 4-20 mA ? 6 logic inputs 24 V ? 6 logic relay ouputs ? 6 logic inputs 24 V + 4 relay ouputs PROGRAMMABLE CONTROLLERS Remote Input Output modules Function Blocks programming capabiltyby LoopWin software, for Analog and Pulse inputs, and Analog outputs, or Logic input-output. Rail DIN format or IP65 field mounting. These devices can be supplied unprogrammed to be programmed by the designer or factory programmed under specifications. >

MULTILOOP CONTROLLERS Graphic controllers from 6 PID loops in SS IP65enclosure with touch screen and guard of data in memory, with Function Blocks programming capability by software LoopWin. Control outputs 4-20 mA, 3-15 psi, relays, etc. FIELD MOUNTING CONTROLLERS One, two or three loop PID Controller in IP65 enclosure forfield mounting and Modbus communication. Generic or specific models are available for Humidity, Weight, Pressure, Level, Density, Volume, Speed of Fluids, Vibration, Chemical, Environmental, Electrical Variables PANEL MOUNTING MULTIVARIABLE CONTROLLERS One, two or three...

PAPERLESS CHART RECORDERS > Configurable and Parameterizable graphic chart recorder for panel mounting,expandable from 8 up to 256 analog and logic channels, the charts are displayed in 999 selectable screens with several channel trend and a recording speed from 1 to 900 div. /hour. Formed by a 15" color touch screen and several independent modules for measurement and data acquisition. PROGRAMABLE CONDITIONERS Configurable 0..4-20 mA 4-wire signal conditioners for rail DINmounting. Configurable 4-20 mA 2-wire transmitters for temperature probe head mounting. ATEX transmitters assemblies for...

RS-485 INTERFACES Communication modems for RS-485 to USB, RS-232,Radio 868 MHz, WiFi and Ethernet, GSM/GPRS, etc. Manufactured in IP65 enclosure and rail DIN for panel mounting.REPEATER model for signal radio 868 MHz retransmitting 0..4-20 mAREPEATERS PRESSURE - LEVELTRANSMITTERS RELAYREPEATERS Wireless modular systems forremote repetition up to 20 channel of mA signals via radio 868 MHz or WiFi 2.4 GHz communication. VARIABLEDETECTORS Wireless systems of two matched modules for activation up to 5 remote relays via radio 868 MHz. Low cost threshold detectors in IP65 or high range IP66....

SOFTWARE SCADAPROASIS DCS SERIES > Modular Software for supervision of data by PC according to the directive 21 CFR part 11 of FDA (Food and Drug Administration). Specific versions for HTG tanks mana- gement, Production management, Silos Supervision, etc. SUPERVISION OFSWIMMING POOLS SAFETY OFBOYLERS Remote measurement and large size display system of variables of the water quality and the ambient air of public swimming pools. Control and Security system for steam boilers formed by several modules with its probes or transmitters for Low Level, Salt Purge, Boiler Filling, PID Control of...

TEMPERATURE byINFRARED PROBES HUMIDITY > Transmitters by mA, Radio or WiFiand Controllers for %HR, Absolute humidity, Dew point, Enthalpy by capacitive sensor or Psychrometric calculation. Transmitters by mA, Radio or WiFiand Controllers with Track and Hold with Infrared Temperature probes of Monochromatic type for common uses or Multichromatic type for Aluminum and metal casting, glass, cement, forge, lamination, etc. GAS - LIQUID FLOW FLUID SPEED pH, ORP, CONDUCTIV. O2, CL, OZ,TURBIDITY ION SELECTIVE MEAS. Transmitters by mA, Radio or WiFiand Controllers for Gas mass-flow from 0.001...
