Introduction to TFT Technology
Thin Film Transistor (TFT) is a type of LCD flat-panel display screen where each pixel is controlled by one to four transistors. TFT technology offers the best resolution among flat-panel techniques and is also known as active-matrix LCDs.

How TFT Works
In TFT screens, a matrix of transistors is connected to the LCD panel, with one transistor for each color (RGB) of each pixel. These transistors drive the pixels, reducing issues like ghosting and slow response times found in non-TFT LCDs. TFT screens achieve response times of 50 ms or less and contrast ratios of 200:1 or higher. The TFT acts as a switch, with its gate electrode connected to a scan line, the source electrode to a data line, and the drain electrode to a storage capacitor.

Advantages of TFT

High Pixel Density: Greater than 100 ppi
Scalable Resolution: From 128x128 dots to QUXGA
Crisp Colors: High color saturation and contrast
Excellent Readability: Due to high contrast and wide viewing angle
Portrait/Landscape Support: Enabled by symmetric viewing cone
Multimedia Capability: High speed

Applications of TFT Technology
TFT displays are used in various devices requiring electronic display panels, including:

Communications
Industrial
Medical
Marine
Consumer
Office Equipment
White Goods
Dynamic Information Displays

TFT Evaluation Kits
Densitron offers user-friendly evaluation kits for easy assessment of its TFT display range.

TFT Display Specifications
The document provides detailed specifications for various TFT display modules, including size, resolution, dimensions, brightness, interface, backlight type, mode, and driving board. These specifications are organized in tables, highlighting the diversity of options available for different applications.

Conclusion
Densitron Display Solutions offers a wide range of TFT displays and complementary accessories, with detailed specifications available for each module. For more information, visit their website or contact their sales team.

Catalog excerpts

What is TFT? The advantages of using TFT How does TFT work? Applications of TFT technology > TFT E VALUATION K ITS size="-2">

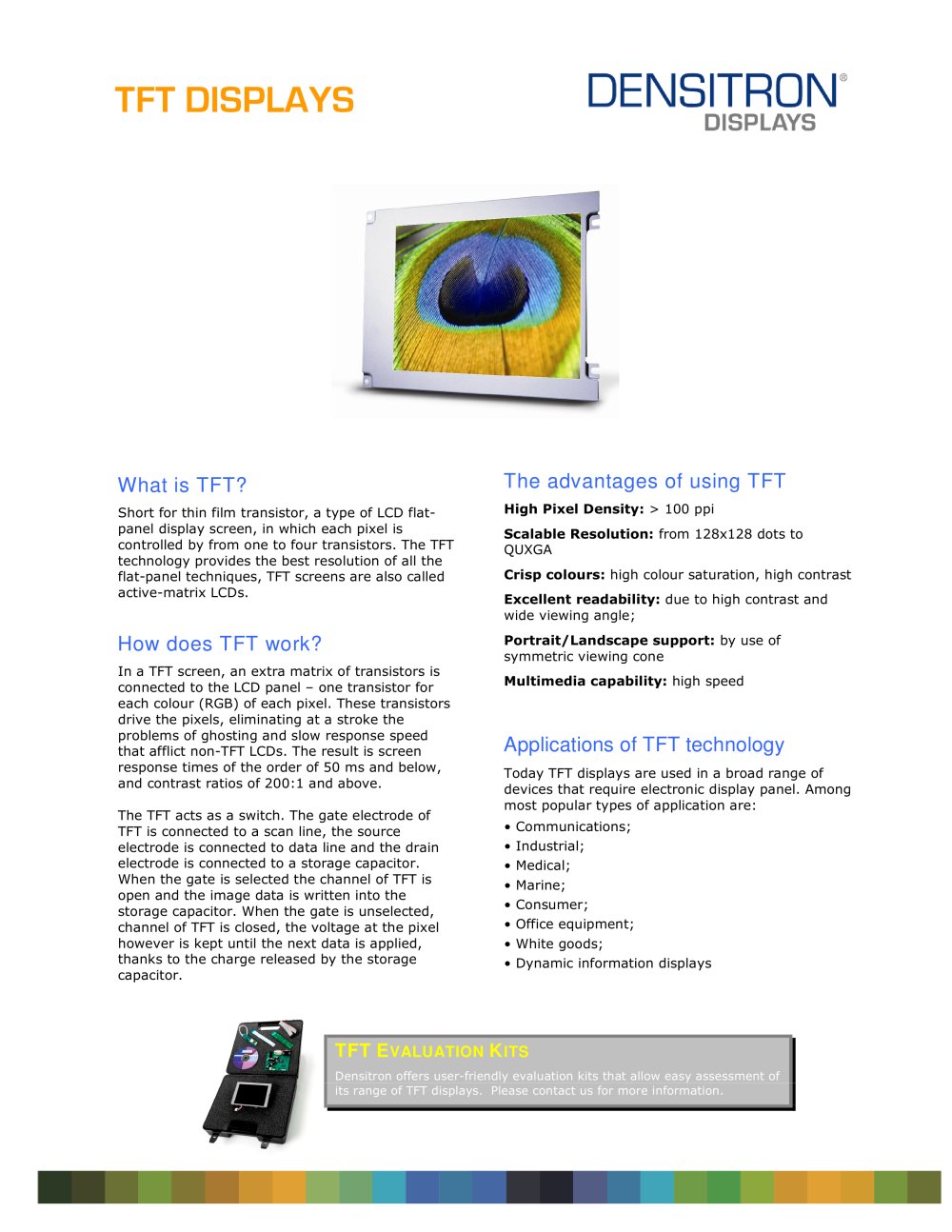

Open the catalog to page 1
