Open Frame Monitors
Open Frame Monitors
Planar's open frame monitors are high-performance TFT displays designed for easy integration into enclosures. They come in sizes of 15", 17", and 19" and offer various video input options including analogue, DVI, and composite. Touch screen options are available in resistive and capacitive forms.
These displays are suitable for outdoor applications requiring high sunlight readability and reliability. They are available in sizes from 8" to 15" and feature rugged housings for mechanical protection. Options include thermal management systems, automatic dimming, and anti-vandal glass.
The LC monitor family is tailored for demanding outdoor kiosk applications such as gas pumps, ATMs, and advertising boards, as well as indoor environments like point-of-sale and financial kiosks. They are available in sizes from 8.4" to 15" and can be customized with thermal management systems or vandal glass.
The document provides detailed specifications for various models, including size, resolution, module dimensions, brightness, interface, backlight type, and driving board. For example, the LC08 model is 8.4" with a resolution of 800 x 600, brightness of 1000 cd/m2, and uses an analogue interface with CFL backlight.
Catalog excerpts

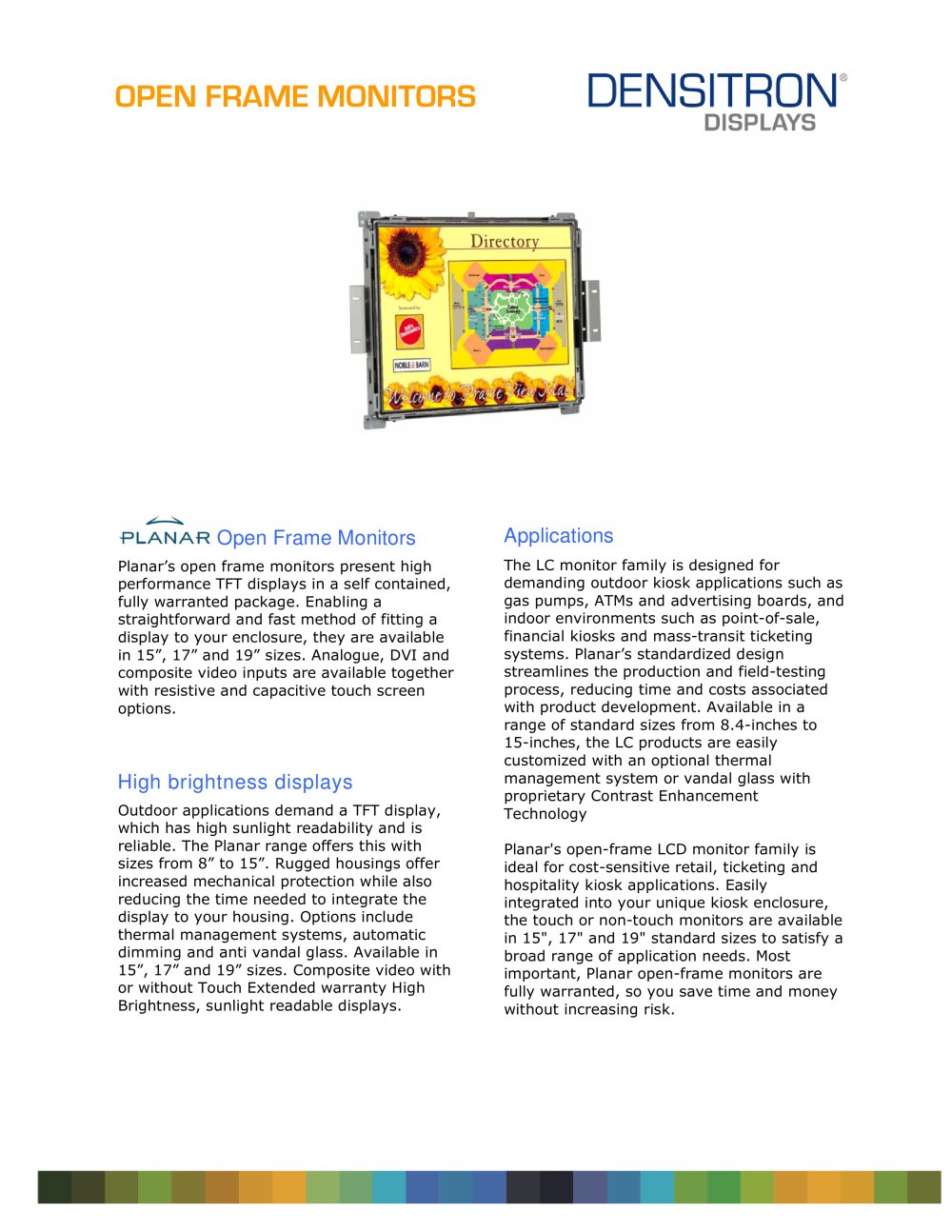

Open Frame Monitors Applications High brightness displays >
Open the catalog to page 1
Module No. Size Resolution Module Dimension Mode Brightness Interface Backlight Driving > (Inches) WxHxD mm (cd/m2) Board LC08 8.4 800 x 600 245 x 180 x 110 Transmissive 1000 Analogue CFL Yes LC640 10.4 640 x 480 272.3 x 199.9 x 27 Transmissive 1000 TTL 18 bit CFL Yes LX1200 12 800 x 600 307 x 262 x 47 Transmissive 1000 Analogue CFL Yes LC1200R 12 800 x 600 301 x 235 x 63 Transmissive 1500 Analogue CFL Yes LC12 12 800 x 600 340 x 310 x 105 Transmissive 1500 Analogue CFL Yes LC1502R 15 1024 x 768 333 x 262 x 78 Transmissive 1000 Analogue CFL Yes LC1502RC 15 1024 x 768 333 x 262 x 78 Transmissive...
