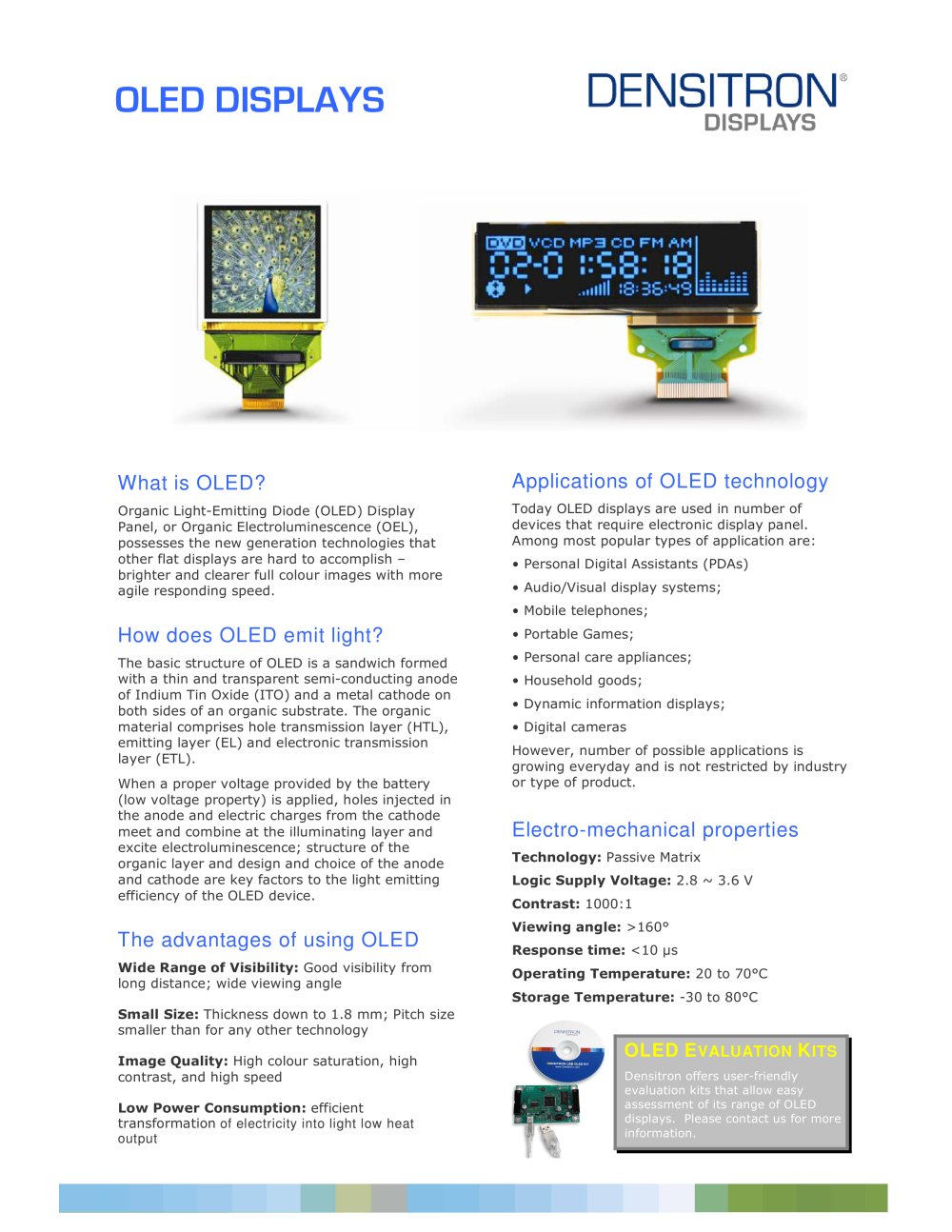

Introduction to OLED: OLED stands for Organic Light-Emitting Diode, a technology that offers brighter and clearer full-color images with faster response times compared to other flat displays.

Light Emission Mechanism: OLEDs consist of a thin, transparent anode made of Indium Tin Oxide (ITO) and a metal cathode, sandwiching an organic substrate. This substrate includes a hole transmission layer (HTL), emitting layer (EL), and electronic transmission layer (ETL). When voltage is applied, holes and electrons combine in the emitting layer to produce light.

Advantages of OLED: OLEDs offer a wide range of visibility, small size, high image quality, and low power consumption. They provide good visibility from a distance, a wide viewing angle, high color saturation, high contrast, and efficient electricity-to-light conversion.

Applications: OLED technology is used in various devices such as PDAs, audio/visual systems, mobile phones, portable games, personal care appliances, household goods, dynamic information displays, and digital cameras. The range of applications is continually expanding.

Electro-mechanical Properties: OLEDs typically use passive matrix technology, with a logic supply voltage of 2.8 to 3.6 V, a contrast ratio of 1000:1, a viewing angle greater than 160°, a response time of less than 10 µs, and an operating temperature range of 20 to 70°C.

OLED Evaluation Kits: Densitron offers evaluation kits for easy assessment of OLED displays. Contact information is provided for further inquiries.

Product Specifications: The document lists various OLED display modules with details such as screen size, resolution, module dimensions, viewing area, and controller type. These modules range in size from 0.66 inches to 3.12 inches, with varying resolutions and dimensions.
