New 7" TFT
New 7" TFT
- Screen Size: 7-inch diagonal TFT display
- Resolution: WVGA 800x480 pixels
- Color Support: 262k colors
- Dimensions: 165.0 x 104.0 x 5.0 mm
- Active Area: 152.4 x 91.44 mm
- Pixel Pitch: 0.1905 x 0.1905 mm
- Brightness: 220 nits (typical)
- Contrast Ratio: 400:1
- Viewing Angle: 140° horizontal / 110° vertical
- Interface: Digital 18-bit TTL
- Backlight: Dimmable LED, 5.0V input
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +95°C
- Power Supply: 3.3V for logic
- Compliance: RoHS compliant
- Ultra-wide operating temperature range suitable for various environments.
- Very slim profile of 5 mm, ideal for compact applications.
- High contrast and brightness for clear visibility.
- Wide viewing angle for better display visibility from different positions.
- Includes a driving board kit with VGA, video composite, and S-video input, along with on-screen display (OSD) capabilities.
- Website: www.densitron.com
- Email: [email protected]
Catalog excerpts

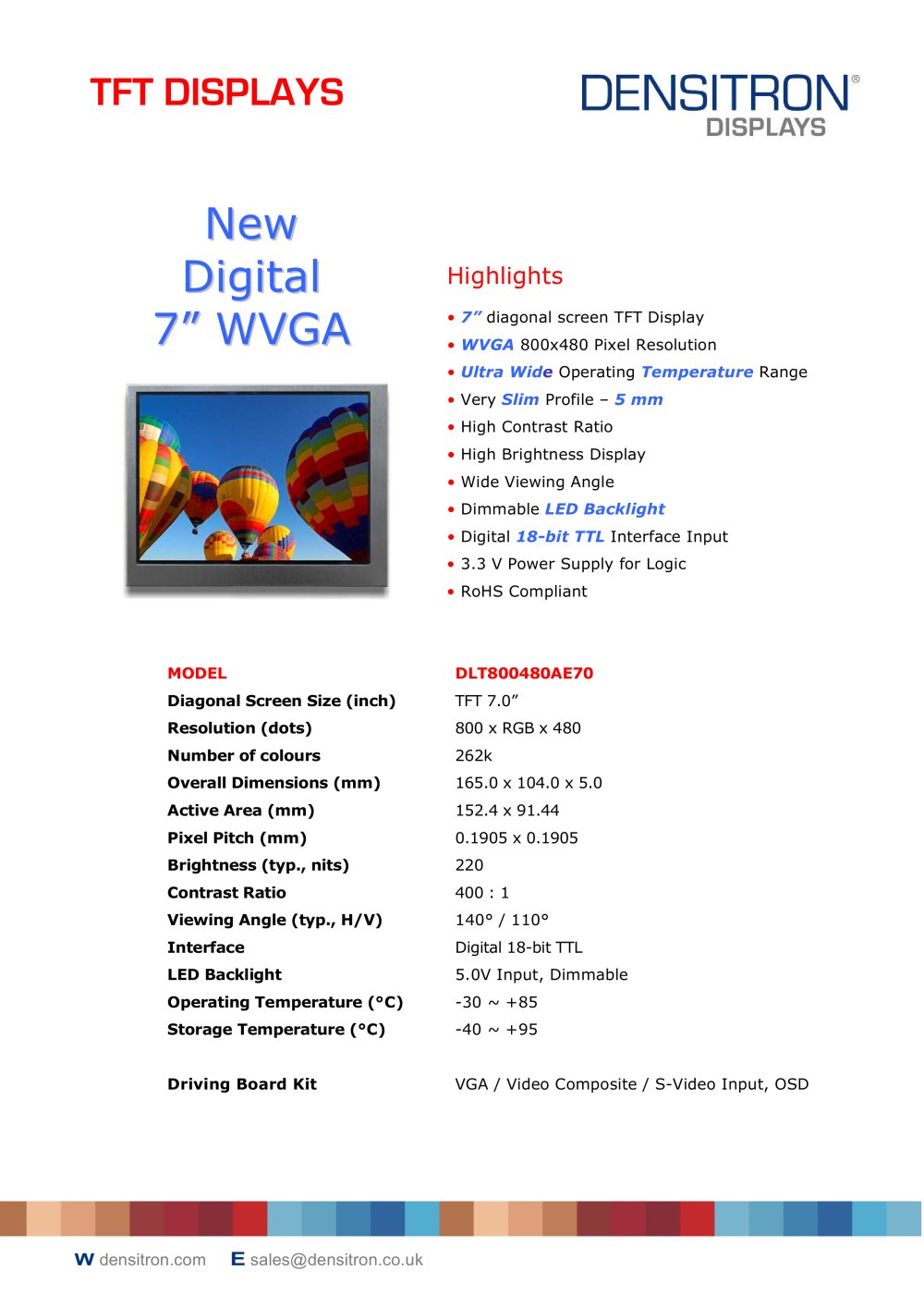

? 7 diagonal screen TFT Display ? WVGA 800x480 Pixel Resolution ? Ultra Wide Operating Temperature Range ? Very Slim Profile Ԗ 5 mm ? High Contrast Ratio ?High Brightness Display ?Wide Viewing Angle ? Dimmable LED Backlight ? Digital 18-bit TTL Interface Input ? 3.3 V Power Supply for Logic ? RoHS Compliant MODELDLT800480AE70 Diagonal Screen Size (inch) TFT 7.0 Resolution (dots) 800 x RGB x 480 Number of colours 262k Overall Dimensions (mm) 165.0 x 104.0 x 5.0 Active Area (mm) 152.4 x 91.44 Pixel Pitch (mm) 0.1905 x 0.1905 Brightness (typ., nits) 220 Contrast Ratio 400 : 1 Viewing Angle (typ., H/V) 140 / 110 Interface Digital 18-bit TTL LED Backlight 5.0V Input, Dimmable Operating Temperature (аC) -30 ~ +85 Storage Temperature (C) -40 ~ +95 Driving Board Kit VGA / Video Composite / S-Video Input, OSD >
