Evaluation Kits
Evaluation Kits
Densitron's OLED evaluation kits are designed for easy demonstration of OLED displays via a USB connection to a PC. The kit includes a USB controller card, mini USB cable, interchangeable OLED display card, and software on a CD. It is hot-pluggable, requiring no additional power supply, and allows for quick image downloads and slideshow creation. Multiple kits can be connected to a single PC for simultaneous display comparisons, with controls for brightness and slide timing.
Densitron offers evaluation kits for Kyocera TFT displays, compatible with VGA or DVI ports of a PC or the TFT LCD interface of an SBC. Each kit includes a driver card or SBC, a TFT display, an inverter (if needed), a power supply, necessary cables, and a CD with manuals and datasheets. The kits support long-term availability of Kyocera TFT modules, and the driver card/SBC can be reconfigured for different displays within the Kyocera range.
The document lists various TFT evaluation kits with details such as kit number, display size, description, single board computer system, driver card input, and backlight type. For example, the TFT-I-KIT-001 features a 10.4-inch VGA display with an AMD Geode LX driver card supporting DVI & Analogue RGB with CFL backlight.
Catalog excerpts
TFT Evaluation Kits OLED Evaluation Kits >

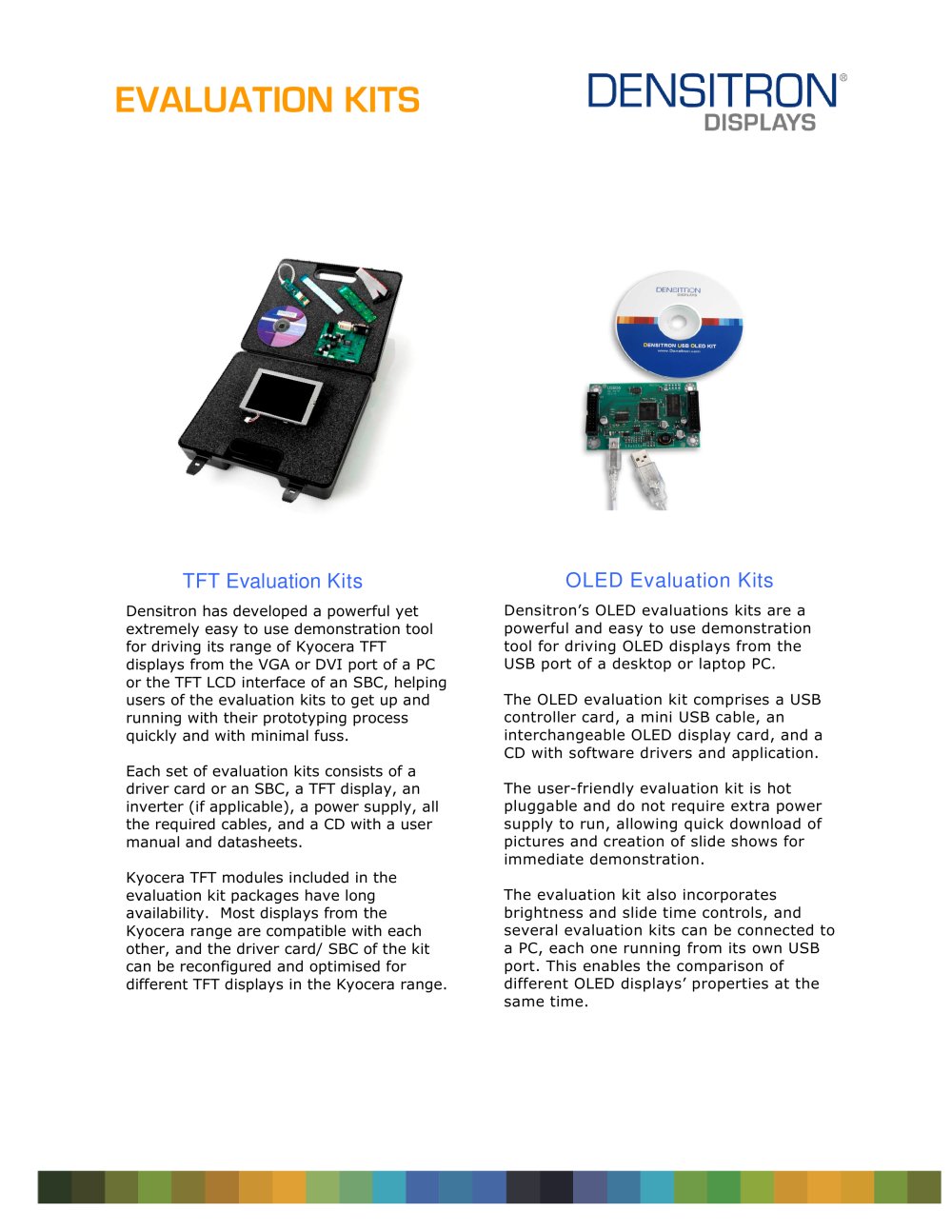

Open the catalog to page 1
Kit Number Size Display Single Board System Driver Card Driver Card Input Backlight > (Inches) Description Computer TFT-I-KIT-001 10.4 TCG104VG2A A-G00,VGA EDD502000F-R AMD Geode LX - DVI & Analogue RGB CFL TFT-I-KIT-002 8.5 TCG085WV1A B-G00, WVGA EDD502000F-R AMD Geode LX - DVI & Analogue RGB CFL TFT-I-KIT-003 7.5 KCG075VG2B E-G00, VGA EDD502000F-R AMD Geode LX - DVI & Analogue RGB CFL TFT-I-KIT-004 5.7 TCG057VGLA C-G00, VGA EDD502000F-R AMD Geode LX - DVI & Analogue RGB LED TFT-I-KIT-005 5.7 TCG057QV1A C-G10, QVGA EDD502000F-R AMD Geode LX - DVI & Analogue RGB CFL TFT-I-KIT-006 5.7 THG057CGLA...
