Composite Video

Product catalog summary

Overview: The document provides detailed specifications for a range of TFT displays offered by Densitron Display Solutions. These displays are designed for various applications requiring high-quality video output.

Specifications: The displays vary in size from 3.5 inches to 8 inches, with resolutions primarily at 960 x 234 pixels, except for larger models which have higher resolutions. Brightness levels range from 250 to 400 cd/m2. The displays support NTSC/PAL autoswitching and operate on DC power supplies ranging from 10V to 30V, depending on the model. Backlighting is provided by either EdgeLed or CFL, and all models include a driving board.

Key Models:

CSM-3501N/P: 3.5-inch displays with NTSC or PAL interfaces, respectively.
HC3511A1: 3.5-inch with NTSC/PAL autoswitching.
HC4501A: 4.5-inch with higher brightness of 400 cd/m2.
CM-5033A: 5-inch with stereo audio capability.
HC7011A: 7-inch with a resolution of 1440 x 234 pixels.
CSM-8001A: 8-inch with a resolution of 1440 x 468 pixels.

Applications: These displays are suitable for CCTV, remote inspection, automotive infotainment, and self-edge advertising, among other uses where high-quality video display is essential.

Additional Features: The displays are available in both housed and kit forms, making them versatile for different installation needs. They require only a DC power supply and a composite video signal for operation.

Catalog excerpts

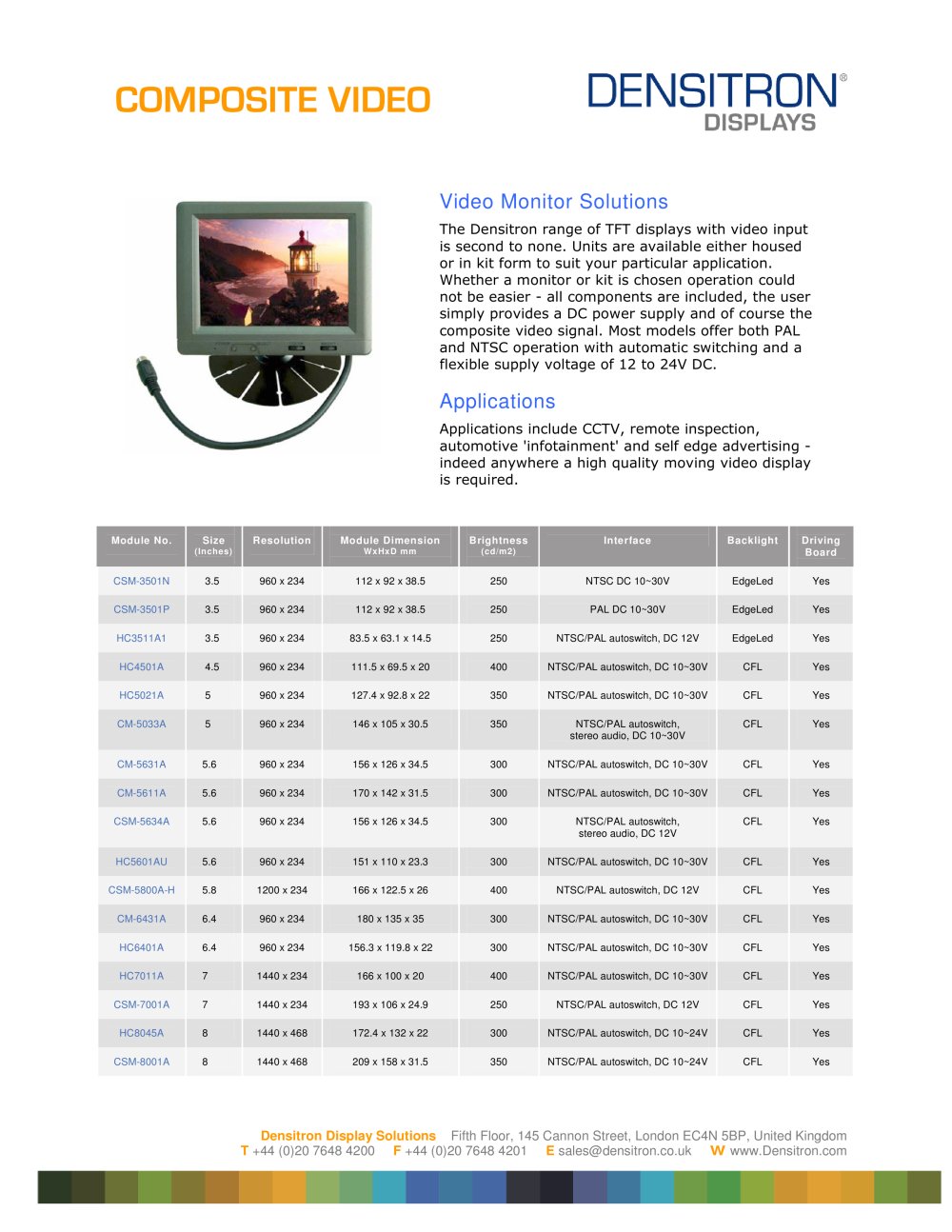

Module No. Size Resolution Module Dimension Brightness Interface Backlight Driving > (Inches) WxHxD mm (cd/m2) Board CSM-3501N 3.5 960 x 234 112 x 92 x 38.5 250 NTSC DC 10~30V EdgeLed Yes CSM-3501P 3.5 960 x 234 112 x 92 x 38.5 250 PAL DC 10~30V EdgeLed Yes HC3511A1 3.5 960 x 234 83.5 x 63.1 x 14.5 250 NTSC/PAL autoswitch, DC 12V EdgeLed Yes HC4501A 4.5 960 x 234 111.5 x 69.5 x 20 400 NTSC/PAL autoswitch, DC 10~30V CFL Yes HC5021A 5 960 x 234 127.4 x 92.8 x 22 350 NTSC/PAL autoswitch, DC 10~30V CFL Yes CM-5033A 5 960 x 234 146 x 105 x 30.5 350 NTSC/PAL autoswitch, CFL Yes stereo audio, DC 10~30V CM-5631A 5.6 960 x 234 156 x 126 x 34.5 300 NTSC/PAL autoswitch, DC 10~30V CFL Yes CM-5611A 5.6 960 x 234 170 x 142 x 31.5 300 NTSC/PAL autoswitch, DC 10~30V CFL Yes CSM-5634A 5.6 960 x 234 156 x 126 x 34.5 300 NTSC/PAL autoswitch, CFL Yes stereo audio, DC 12V HC5601AU 5.6 960 x 234 151 x 110 x 23.3 300 NTSC/PAL autoswitch, DC 10~30V CFL Yes CSM-5800A-H 5.8 1200 x 234 166 x 122.5 x 26 400 NTSC/PAL autoswitch, DC 12V CFL Yes CM-6431A 6.4 960 x 234 180 x 135 x 35 300 NTSC/PAL autoswitch, DC 10~30V CFL Yes HC6401A 6.4 960 x 234 156.3 x 119.8 x 22 300 NTSC/PAL autoswitch, DC 10~30V CFL Yes HC7011A 7 1440 x 234 166 x 100 x 20 400 NTSC/PAL autoswitch, DC 10~30V CFL Yes CSM-7001A 7 1440 x 234 193 x 106 x 24.9 250 NTSC/PAL autoswitch, DC 12V CFL Yes HC8045A 8 1440 x 468 172.4 x 132 x 22 300 NTSC/PAL autoswitch, DC 10~24V CFL Yes CSM-8001A 8 1440 x 468 209 x 158 x 31.5 350 NTSC/PAL autoswitch, DC 10~24V CFL Yes >
