Alphanumeric Displays

Product catalog summary

Overview: Densitron offers a wide range of alphanumeric display modules, with over 25 different types ranging from 1x8 to 4x40 character displays. These modules are suitable for various applications and can be customized to meet specific needs.

Specifications: The displays operate within a temperature range of -20°C to +70°C and feature standard backlight options, including low-power electroluminescent and high-brightness EcoBrightTM. Non-powered backlights are available by special order. The modules include an HD44780 compatible controller with font options in Standard, European, Cyrillic, Russian, or Greek.

Product Range: The document lists several models with specifications such as character count, module dimensions, viewing area, character size, package mode, and backlight type. For example, the LC2302 model features a 1x20 character display with dimensions of 180 x 40 x 10.2 mm and a viewing area of 149 x 23 mm.

Applications: Alphanumeric displays are typically used in rack-mounted servers, portable monitoring and measuring devices, multilingual instrumentation, and medical monitoring equipment.

Customization: Densitron offers more than 40,000 different combinations in their regular range and provides options for full or semi-customization to suit specific application requirements.

Catalog excerpts

Module No. Characters, Module Dimension Viewing Area Character Package Mode Backlight Dots or Digits > WxHxD mm WxH mm or Dot Size LM4465 1 x 8 32 x 58 x 14.1 35 x 15 5.81 SMT SMD LED LC4828 1 x 16 122.2 x 33.2 x 14.9 99 x 13 9.66 COB Edge LED LC2302 1 x 20 180 x 40 x 10.2 149 x 23 14.54 COB SMD LED LC2303 1 x 24 208 x 40 x 12.6 178 x 23 14.54 COB EL LC4070 2 x 8 58 x 32 x 13 35 x 15 5.545 COB SMD LED LC4212 2 x 12 55.7 x 32 x 16.3 45.2 x 15.5 5.5 COB SMD LED DVR3002 2 x 16 69.5 x 25.05 x 2.85 61 x 15.1 5.55 COG - LMR2052 2 x 20 80 x 21.5 x 5.3 75 x 15 2.95 COB - LC2227 2 x 24 118 x 36 x 10.7 93.5 x 15.8 5.55 COB EL LC2218 2 x 40 182 x 33.6 x 10.6 152.2 x 16.5 5.55 COB EL LC2433 4 x 16 87 x 60 x 11 61.8 x 25.2 4.75 SMT EL DVR4434 4 x 20 98.8 x 60.2 x 14 76 x 25.5 0.55 COB - LM2457 4 x 40 190 x 54 x 11.3 147 x 29.5 4.89 SMT EL The models shown above are only a small selection from Densitrons extensive range of Alphanumeric Display Modules. The full range can be viewed at >

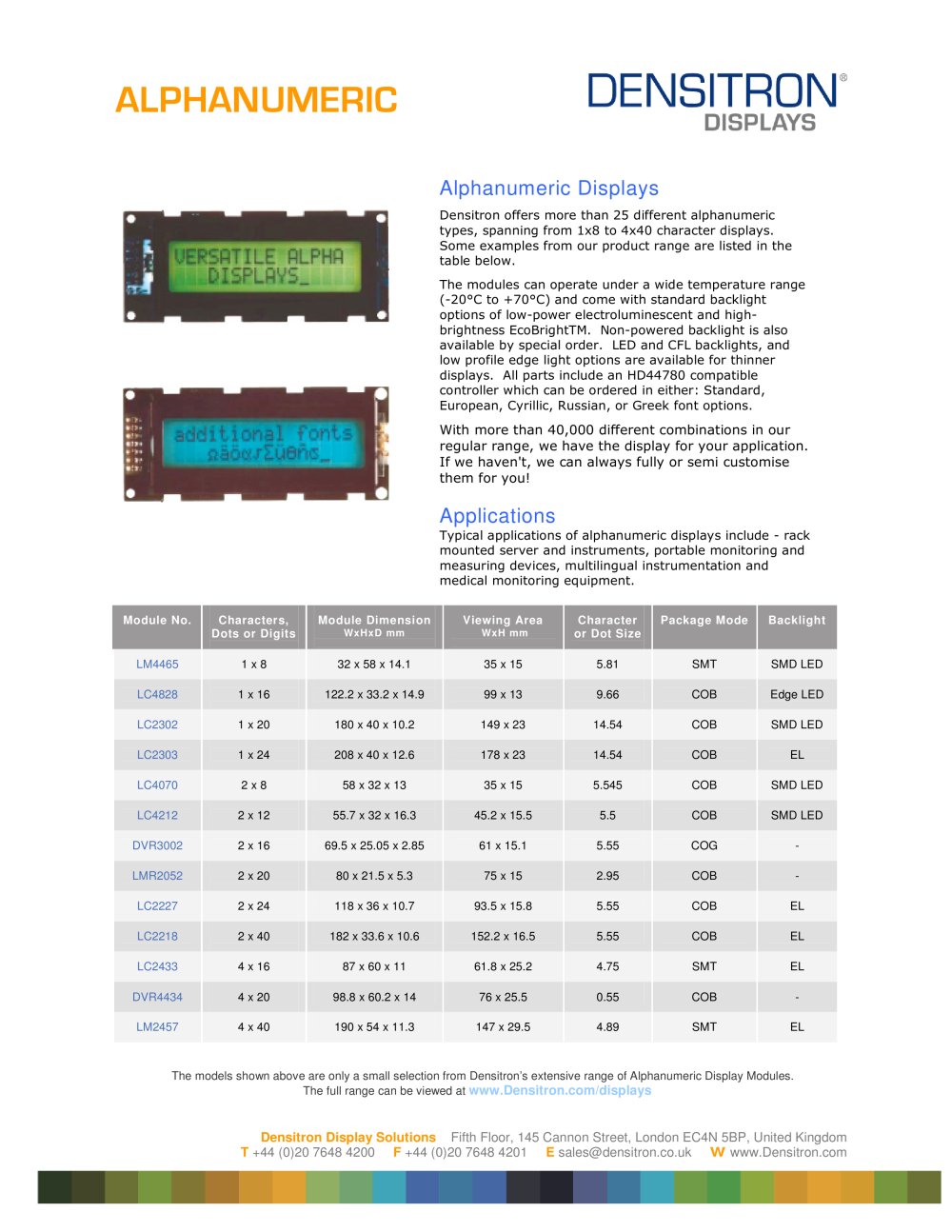

Open the catalog to page 1
