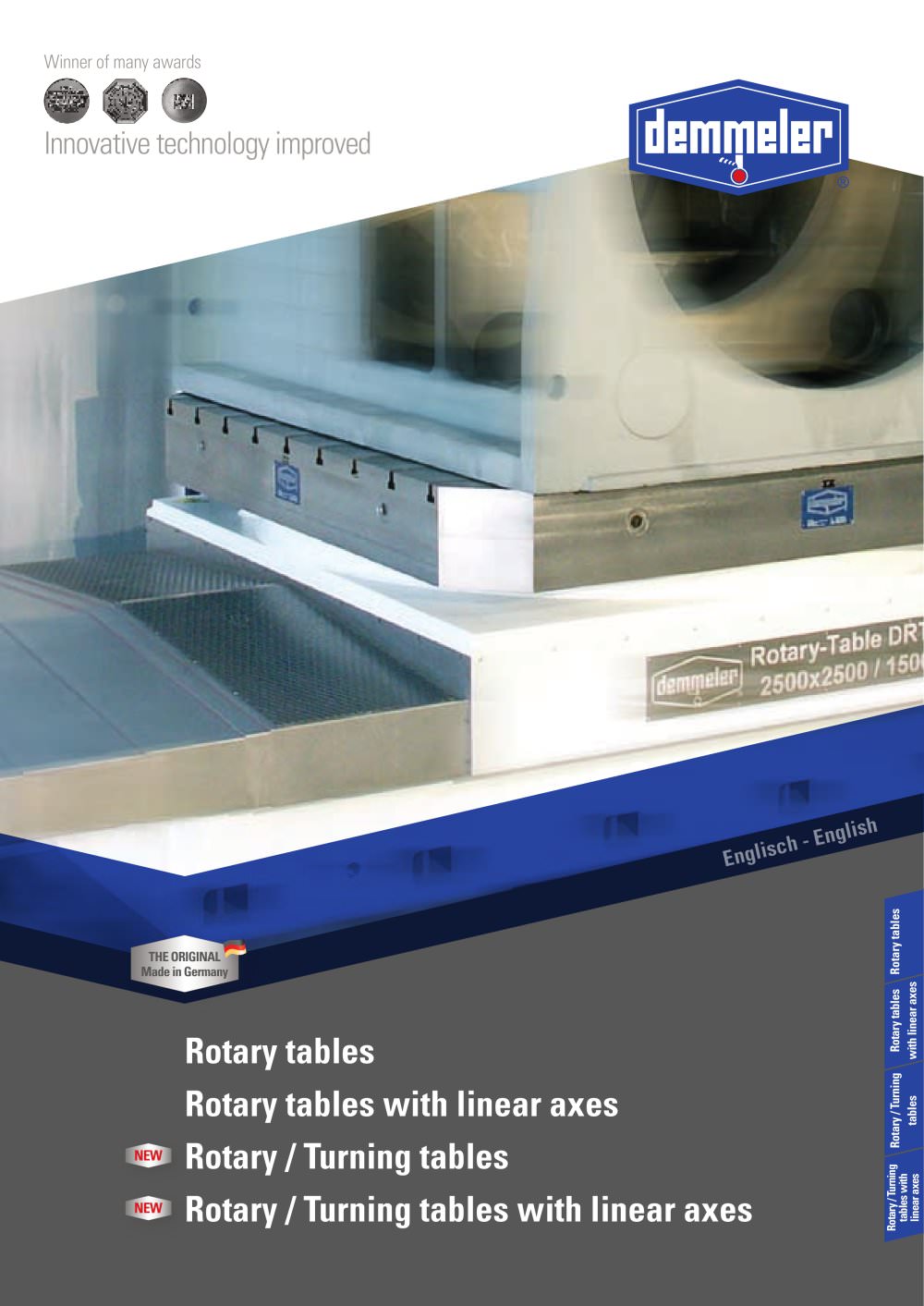

Rotary tables / Turning tables
1 / 16 PagesView full catalog
Rotary tables / Turning tables
Product catalog summary
Overview: The document provides detailed specifications and features of Demmeler's rotary tables, including standard and heavy-duty versions, with and without linear axes. It highlights the innovative technology and manufacturing capabilities that contribute to the product's stability, precision, and performance.
Specifications:
- Rotary Tables: Available in standard (DRTN) and heavy-duty (DRTS) versions, with load capacities ranging from 10 to 100 tons. Table dimensions vary from 1200x1200 mm to 5000x5000 mm, with revolutions per minute decreasing as size increases.
- Rotary Tables with Linear Axes: Models include DRLTN (standard) and DRLTS (heavy-duty), offering similar load capacities and dimensions. These tables feature a W-axis for additional linear movement, enhancing versatility.
Key Features:
- Modular construction allows for diverse configurations based on customer requirements.
- High precision ensured by direct measuring systems and hydrostatic bearings, minimizing wear and enhancing longevity.
- Optional features include rotary unions for media transfer, various hole patterns, and T-slot systems for flexible tool clamping.
Technological Innovations:
- Use of advanced 3D-CAD systems for design, ensuring up-to-date technology.
- Integration of highly dynamic servo motors and low-backlash gearboxes for precise positioning and operation.
- Energy-efficient and space-saving designs with easy maintenance access.
Applications: The tables are suitable for state-of-the-art manufacturing processes, including pivot mounting and circular milling, with capabilities to handle large workpieces and high loads efficiently.
Conclusion: Demmeler's rotary tables and rotary tables with linear axes offer robust, precise, and customizable solutions for various industrial applications, backed by innovative technology and extensive user experience.
