DELTRON
Precision guide- Metric

Precision guide- Metric

Product catalog summary

Introduction
Del-Tron Precision specializes in high-quality, cost-effective anti-friction linear bearings for automated equipment manufacturers. Established in 1974, the company pioneered the sub miniature ball bearing slide assembly and has expanded globally.

Company Overview
Del-Tron Precision Inc. is known for its innovative ball slide assemblies used in various automated equipment, including medical devices and semiconductor processing equipment. The company operates a highly automated manufacturing facility in Connecticut and has a global distribution network.

Quality Policy
Del-Tron is committed to delivering products that meet or exceed customer expectations, ensuring consistent quality and timely delivery at competitive prices.

Product Index
The guide includes a comprehensive index of products such as Ball Slide Assemblies, Anti-Creep Ball Slide Assemblies, Non-Magnetic Ball Slide Assemblies, Crossed Roller Slide Assemblies, and various precision series.

Selection Guide
The selection guide provides detailed specifications for different series of slides, including load capacity, travel length, and accuracy. Key series include MINI, DA-SA3, RDA, REA-RSA3, MA-2SS-SA5-7SS, RSA2SS-RSA5SS, and HPMA-HPSA5.

Ball Slides
Del-Tron ball slides offer factory preload adjustment to prevent sideplay and backlash, lightweight aluminum construction, and high load capacity. They feature a low coefficient of friction and require minimal lubrication.

Specifications
Standard Del-Tron ball slides offer straight line accuracy of 0.013mm/25mm of travel and positional repeatability of 0.005mm. They are constructed with aluminum carriages and bases, hardened steel shafts, and balls.

Conclusion
Del-Tron Precision provides a wide range of linear motion components designed to meet the needs of various industries, ensuring high performance and reliability in automated systems.

Specifications and Features
Del-Tron Posi-Drive Stages are compact and economical solutions for motion control systems. They feature positive lead screw drive, zero backlash, and friction-free linear ball or roller slides. These stages are available in one, two, or three-axis configurations with travel up to 300mm.

Limit and Position Switches
The Posi-Drive series can be equipped with End Of Travel (EOT) and Home Position Switches (HPS). These switches operate on a supply voltage of 5 to 24 VDC with a repeatability of 0.005mm and a response time of 100μseconds.

Air Actuators
Del-Tron Air Actuators feature pneumatically actuated crossed roller slide assemblies with low friction and stiction characteristics. They operate at low pressure and are ideal for precise, repeatable motion.

Ball Slide Positioning Stages
Del-Tron offers over 60 models of ball slide positioning stages for gaging and positioning light and medium loads. These stages provide accuracy to 0.013mm/25mm of travel and repeatability of 0.003mm.

Overview of Del-Tron® Recirculating Ball Slide Guides (BSGS)
The BSGS features a four-point contact system that allows it to carry loads and moments in all directions, enhancing stability and performance. Available in stainless steel for superior corrosion resistance.

Life Formula for Ball and Roller Slides
The document provides a formula to calculate the real life of linear slides, specifically ball and roller slides, using the L10 life rating.

Terms of Sale
All shipments are FOB from the factory in Bethel, CT, with payment terms of net 30 days. The risk of loss and title transfers to the purchaser upon delivery to the carrier.

Warranty and Liability
Del-Tron offers a limited warranty to repair or replace defective products within 30 days of acceptance. The warranty excludes any liability for mishandled or misapplied products.

Catalog excerpts

Precision Linear Motion Components & Accessories Product Guide Metric Version

Open the catalog to page 1

Our Mission Del-Tron Precision was founded in order to serve the needs of automated equipment manufacturers for innovative, high quality and reasonably priced anti-friction linear bearings. Our Company The originator of the sub miniature ball bearing slide assembly; Del-Tron Precision Inc. began operations in 1974 supplying original equipment manufacturers with the world's first commercially available sub miniature ball slide, model D-1. Since then, thousands of Del-Tron® slides have been incorporated into automated equipment throughout the world. Manufacturers of medical analyzing and testing...

Open the catalog to page 2

Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P 4 Ball Slide Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P 7 Anti-Creep Ball Slide Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P 10 Non-Magnetic Ball Slide Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . .P 13 Crossed Roller Slide Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P 16 Precision Series (Ball & Crossed Roller Slides) . . . . . . . . . . . . . . . . . . .P 19 High...

Open the catalog to page 3

Selection Guide BALL SLIDES SERIES ANTI-CREEP BALL SLIDE ASSEMBLIES SERIES NON-MAGNETIC BALL SLIDES SERIES CROSSED ROLLER SLIDES SERIES PRECISION BALL SLIDE SERIES SERIES PRECISION CROSSED ROLLER SLIDE SERIES SERIES HIGH PRECISION SERIES BALL SLIDES (LOW PROFILE & FLANGE BASE) SERIES

Open the catalog to page 4

Selection Guide HIGH PRECISION SERIES CROSSED ROLLER SLIDES (LOW PROFILE & FLANGE BASE) SERIES BALL SLIDE POSITIONING STAGES (MICROMETER DRIVEN) Available in X, XY, and XYZ configurations. SERIES WORK SURFACE 101PMM-3206-PMM 1.8 - 27 (11 MODELS, X and XY ONLY, no micrometers) CROSSED ROLLER POSITIONING STAGES (MICROMETER DRIVEN) Available in X, XY, and XYZ configurations. SERIES WORK SURFACE R101PMM-R3204PMM 10 - 73 (11 MODELS, X and XY ONLY, no micrometers)

Open the catalog to page 5

Selection Guide LOW PROFILE CROSSED ROLLER TABLES SERIES LPTA-1025-3205 23 - 375 (21 MODELS) Stainless steel available. CROSSED ROLLER RAIL SETS SERIES MINI NB1 NB2-NB6 (49 MODELS) Stainless steel available. ANTI-CREEP CROSSED ROLLER RAIL SETS SERIES NB2-AC / NB6-AC CROSSED ROLLER SLIDE TABLES (ALUMINUM) SERIES MINI NBT-1AM NBT-2AM-NBT-6AM (72 MODELS) Stainless steel available. ANTI-CREEP CROSSED ROLLER SLIDE TABLES (ALUMINUM) SERIES CROSSED ROLLER SLIDE TABLES (STEEL) SERIES BALL SLIDE GUIDES SERIES

Open the catalog to page 6

Ball Slides 6 Reasons to choose Del-Tron® Ball Slides Del-Tron ® Ball Slides Load Ratings and Life Estimates The rated load capacity of Del-Tron® ball slides may be a mass load on a horizontal slide,or a force load normal to the mounting surface in any position. The rated load must be centered and distributed over the slide, and the base must be fully supported on a flat mounting surface so that the ball slide does not act as a beam subject to concentrated or distributed bending forces. Loads supported by protruding arms reduce accuracy and load capacity by acting as levers or ratio arms, and...

Open the catalog to page 7

Ball Slide Assemblies moment load ratings + load / life formulas. pg.91 * Minimum Centered around Mean Position CARRIAGE HOLE SPACING BASE DIMENSIONS HOLE HEIGHT WIDTH SPACING H F G SERIES CA CARRIAGE M2 4 HOLES (I) THREAD BASE HOLE d M2 THREAD BASE HOLE D1 BASE HOLE h COUNTER BORE SCREW SIZE

Open the catalog to page 8

Straight Line Accuracy .013mm/25mm of travel Coefficient of Friction 0.003 typical Construction Aluminum carriage and base, hardened steel shafts and balls, mild steel end caps. Finish Clear anodize standard Black anodize available at no extra cost. moment load ratings + load / life formulas. pg.91 *Minimum Centered around Mean Position LOAD CAPACITY TRAVEL (kg) CARRIAGE HOLE SPACING

Open the catalog to page 9

Anti-Creep Linear Slides 6 Reasons to choose Del-Tron® Anti-Creep ™ Ball Slides 1. Ideal for vertical applications. 2. Increased life with overhanging loads. 3. Positive internal stops. 4. Low friction, straight line design. 5. Factory preload controls side play and backlash. 6. .013mm/25m″ straight line accuracy. Del-Tron ® Anti-Creep ™ Slides In certain applications, uneven loads, improper preload, vertical mounting, or offset forces may cause the ball retainers to become misaligned relative to each other. The misalignment (“creep”) can ultimately cause a reduction in overall travel, the need...

Open the catalog to page 10

Anti-Creep Linear Slides moment load ratings + load / life formulas. pg.91 * Minimum Centered around Mean Position CARRIAGE HOLE SPACING BASE DIMENSIONS HOLE HEIGHT WIDTH SPACING H F G SERIES CA CARRIAGE M2 4 HOLES (I) THREAD BASE HOLE d M2 THREAD BASE HOLE D1 BASE HOLE h COUNTER BORE SCREW SIZE

Open the catalog to page 11

Straight Line Accuracy 0.13mm/25mm of travel Coefficient of Friction 0.003 typical Construction Aluminum carriage and base, hardened steel shafts and balls, mild steel end caps. Finish Clear anodize standard black anodize available at no extra cost. moment load ratings + load / life formulas. pg.91 *Minimum Centered around Mean Position LOAD CAPACITY TRAVEL* (kg) CARRIAGE HOLE SPACING

Open the catalog to page 12

Non-Magnetic Linear Slides 6 Reasons to choose Del-Tron® Non-Magnetic Ball Slides Del-Tron ® Ball Slides Load Ratings and Life Estimates The rated load capacity of Del-Tron ball slides may be a mass load on a horizontal slide,or a force load normal to the mounting surface in any position. The rated load must be centered and distributed over the slide, and the base must be fully supported on a flat mounting surface so that the ball slide does not act as a beam subject to concentrated or distributed bending forces. Loads supported by protruding arms reduce accuracy and load capacity by acting as...

Open the catalog to page 13

Non-Magnetic Linear Ball Slides * Minimum Centered around Mean Position LOAD CAPACITY TRAVEL* (kg) CARRIAGE HOLE SPACING BASE DIMENSIONS HOLE HEIGHT WIDTH SPACING H F G SERIES CARRIAGE 4 HOLES (I) BASE HOLE d BASE HOLE D1 BASE HOLE h COUNTER BORE SCREW SIZE

Open the catalog to page 14

All DELTRON catalogs and technical brochures

Archived catalogs

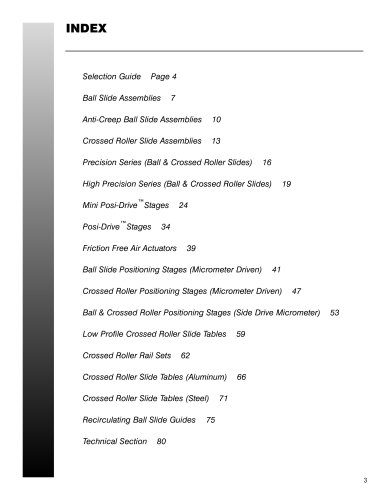

Inch Catalog Rev 3
