Deltrol Controls

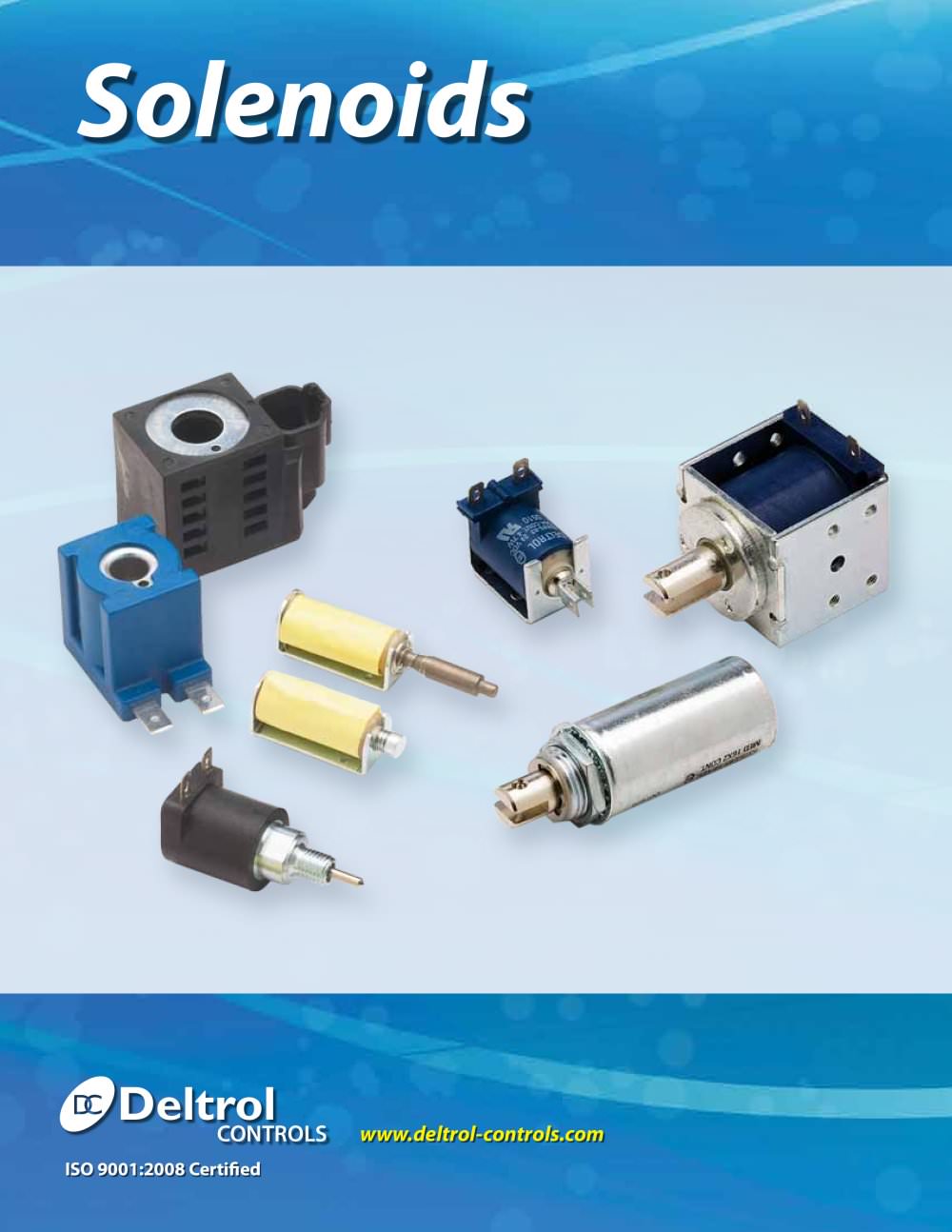

Solenoid Catalogue

Solenoid Catalogue

Product catalog summary

Overview: Deltrol Controls, a subsidiary of Deltrol Corp, specializes in designing and manufacturing solenoids, valves, relays, and custom assemblies. The company is ISO 9001:2008 certified and operates a 110,000 sq. ft. facility in Milwaukee, Wisconsin, with additional global manufacturing capabilities.

Product Line: The brochure details Deltrol's standard solenoid product line, which includes C-Frames, D-Frames, Tubular, and Magnetic Latching solenoids. These products are used in various applications such as appliances, HVAC, medical equipment, and more.

Customization: Deltrol offers customization of standard products or the design of entirely new products to meet specific application needs. Customers are encouraged to contact Deltrol directly for custom solutions.

UL Approval: Most continuous duty solenoids have UL approval, listed under UL File NO. E57982. Specific UL approval information is available in the online catalog.

Technical Specifications: The brochure provides detailed specifications for each solenoid model, including dimensions, coil treatment, maximum stroke, voltage types, duty cycles, and typical force at various strokes. Models are available in both DC and AC voltage types, with continuous, intermittent, and pulse duty cycles.

Contact Information: For more information, customers can visit the website or contact Deltrol Controls directly via phone or email.

Catalog excerpts

Our Standard Solenoid Product Line This product brochure provides gnral information on our standard product line of solenoids. Compl驨te product information can be obtained by visiting our website www.deltrol-controls.com. Custom Solenoid Models At Deltrol Controls we take pride in our ability to customize a standard product or design an entirely new product specific to your application. Please contact Deltrol Controls directly to discuss your application with a Sales Engineer. UL Approval Most of our continuous duty solenoids have UL approval, and are listed in the UL File NO. E57982. Refer to...

Open the catalog to page 2

rame Model Size (in) LxWxH Coil Treatment Maximum Stroke (in) Voltage Type (2) Duty Cycle (3) Typical Force (oz) 100% Voltage, 77° F at the following strokes (in). 0.000 0.125 0.250 0.500 C-4 0.768 x 0.687 x 0.765 TW 0.300 DC DC DC AC AC AC Cont, 3.5 W Int, 8 W Puise, 35 W Cont, 4.5 VA Int, 12 VA Puise, 45 VA 18.0 27.0 46.0 23.0 45.0 90.0 2.2 5.0 15.0 2.4 5.0 15.0 0.8 2.0 6.0 0.8 1.7 5.0 C-5 0.969 x 0.734 x 0.812 TW 0.400 DC DC DC AC AC AC Cont, 3.7 W Int, 11 W Puise, 42 W Cont, 4.7 VA Int, 14 VA Puise, 47 VA 25.0 38.0 62.0 24.0 50.0 86.0 3.0 12.0 34.0 3.5 9.5 25.0 1.5 5.0 19.0 2.0 5.5 15.0 C-6...

Open the catalog to page 3

iUUlUI Model Size (in) Diax L Coil Treatment Maximum Stroke (in) Voltage Type (2) Duty Cycle (3) Typical Force (oz) 100% Voltage, 77° F at the following strokes (in). 0.000 0.250 0.500 0.750 MED 12 x 1.5 00.750 x 1.500 TW 0.600 DC DC DC Cont, 6 W Int, 15 W Puise, 58 W 38.0 50.0 64.0 3.0 10.0 26.0 1.5 4.0 16.0 MED 16x 1.125 01.OOOX 1.125 TW 0.400 DC DC DC Cont, 8 W Int, 19 W Puise, 77 W 94.0 126.0 180.0 4.0 10.0 50.0 MED 16x2 01.000x2.000 TW 0.800 DC DC DC Cont, 10 W Int, 24 W Puise, 96 W 129.0 149.0 201.0 18.0 36.0 115.0 8.0 15.0 77.0 5.0 8.0 60.0 MED 19x2.7 01.187 x 2.700 TW 1.400 DC DC DC Cont,...

Open the catalog to page 5

Deltrol Controls Products Deltrol Controls designs and manufactures dispensing valves, inlet valves, solenoids, relays, hose sets and fittings, proportional valves and custom assemblies. We offer an extensive line of standard products and have an in-house engineering staff that will work with you to design a custom product specific to your application. Please visit www.deltrol-controls.com for further information. [. ^ Dispensing Valves Inlet Valves .i M- Relays Solenoids Hose Sets Custom Assemblies Deltrol Controls Overview Deltrol Controls is located in Milwaukee, Wisconsin USA and is a wholly-owned...

Open the catalog to page 6
