Deltrol Controls
PS-75 D-Frame Solenoid

PS-75 D-Frame Solenoid

Product catalog summary

Electrical Specifications
The Deltrol Controls D-frame solenoid operates with coil voltages ranging from 6 to 115 VDC and a continuous coil power of 150 Watts. It features wire lead coil termination and a continuous duty cycle. The coil is tape wrapped and has an insulation class of Class A, rated at a maximum of 105ºC (221ºF). Dielectric strength is specified at 500 VRMS for voltages 30 volts and under, and 1000 VRMS plus twice the rated voltage for over 30 volts.

Mechanical Specifications
The solenoid measures 2.625 inches in length, 1.562 inches in width, and 1.828 inches in height. It includes a plunger with a diameter of 0.500 inches made from brass, and the mounting is facilitated by six #8-32 UNC-2B mount holes. The plunger weighs 1.91 oz, with a total weight of 19 oz. The life expectancy is 250,000 cycles, depending on load conditions.

Features
The solenoid offers a balance of cost and performance and is available in DC configurations.

Dimensional View
Dimensions are provided in inches with a tolerance of ± .015 inches (0.38 mm).

Schematic and Force Curve
The document includes a schematic and force curve for the solenoid with the plunger at 0 stroke.

Standard Part Numbers
The document lists various part numbers with corresponding voltages, duty cycles, power, resistance, and typical force at different strokes. For example, part number 51073-80 operates at 6 VDC with a continuous duty cycle and provides a pull force of 200 oz at 0.000” stroke.

Catalog excerpts

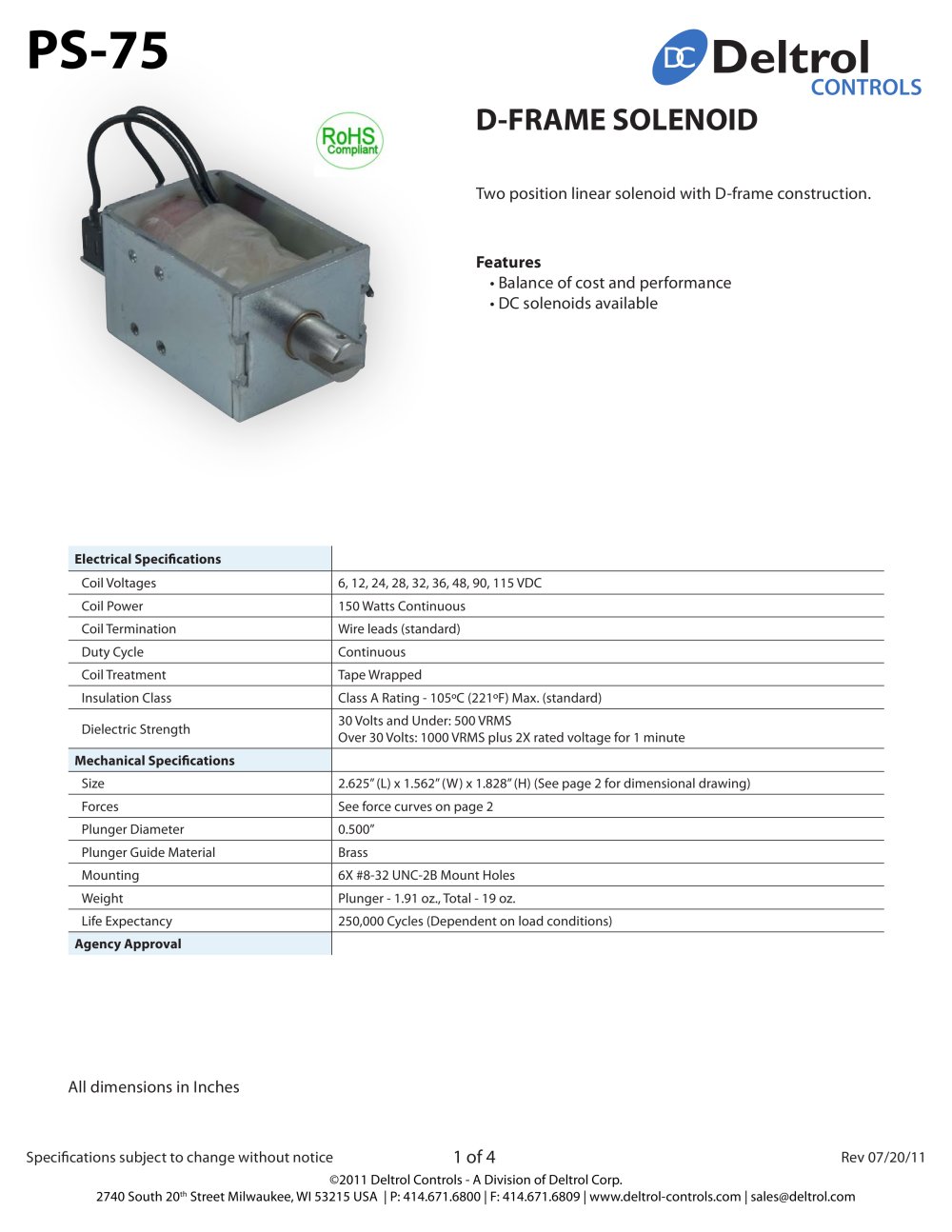

PS-75 iJ?Deltrol CONTROLS D-FRAME SOLENOID Two position linear solenoid with D-frame construction. Features * Balance of cost and performance DC solenoids available Eloctrical Spթcifications Coil Voltages 6, 12, 24, 28, 32, 36,48,90, 115 VDC Coil Power 150 Watts Continuous CoilTermination Wireleads (standard) Duty Cycle Continuous Coil Treatment Tape Wrapped InsulationClass Class A Rating - 10S°C (221°F) Max. (standard) Dielectric Strength 30 Volts and Under: 500 VRMS Over 30 Volts: 1000 VRMS plus 2X rated voltage for 1 minute Mechanical Spcifications Slze 2.625* (L) x 1562* (W) x 1 28* (H) (See page 2 for dimensional drawing) Forces See force curves on page 2 PlungerDiametef 0500* Plunger Guide Material Brass Mounting 6X #8-32 UNC-2B Mount Holes Weight Plunger-1.91 oz-.Total - 19oz. Life Expectancy 250,0OOCj*:les (D飩pendent on load conditions) Agency Approval Ali dimensions in Inches Spcifications subject to change without notice 1 of 4 Rev 07/20/11 32011 Deltrol Controls - A Division of Dettrol Corp. 2740 South 2CT Street Milwaukee,WI 53215 USA | P:414.671.68001 F:414.671.68091 www.deltrol-controls.com | sales@<leltrolcom

Open the catalog to page 1

PS-75 i^Deltrol CONTROLS Force Curve 9 A M M strok* riche* Schematic [With plunger at 0 stroke) PULL COIL N.C. 5WI1CH HOLD COIL Rev 07/20/11 Spcifications subject to change without notice 3 of 4 ©2011 Deltrol Controls - A Division of Dettrol Corp. 2740South 20" Street Milwaukee, Wl 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrof-eontrols.com | salescadeltrol.cam

Open the catalog to page 3

PS-75 4j9Deltrot CONTROLS Standard Part Numbers Parts No. Voltage Duty Cycle Power Rsistance Opration Typical Force (oz). 100% Voltage, 77° F, Stroke @ (Ohms) 0.000" 0.125" 0.250" 0.500" 0.750" 51073-80 6VDC 0.24 Pull 2.75 Hold 51073-81 驕 12VDC 0.96 Pull 11 Hold 51073-83* 24VDC 3.84 Pull 44.2 Hold 51073-85 28VDC 5.2 Pull 60 Hold 51073-87 32VDC Continuous 1S0 Watt 6.8 Pull 78.6 Hold Pull 200 250 205 125 80 51073-88 36VDC 8.6 Pull 99 Hold 51073-89 48VDC 15.4 Pull 176.6 Hold 51073-90 90VDC 54 Pull 620 Hold 51073-93 115VDC 88 Pull 1020 Hold (*) Normally Stocked Non slocked items require a minimum...

Open the catalog to page 4
