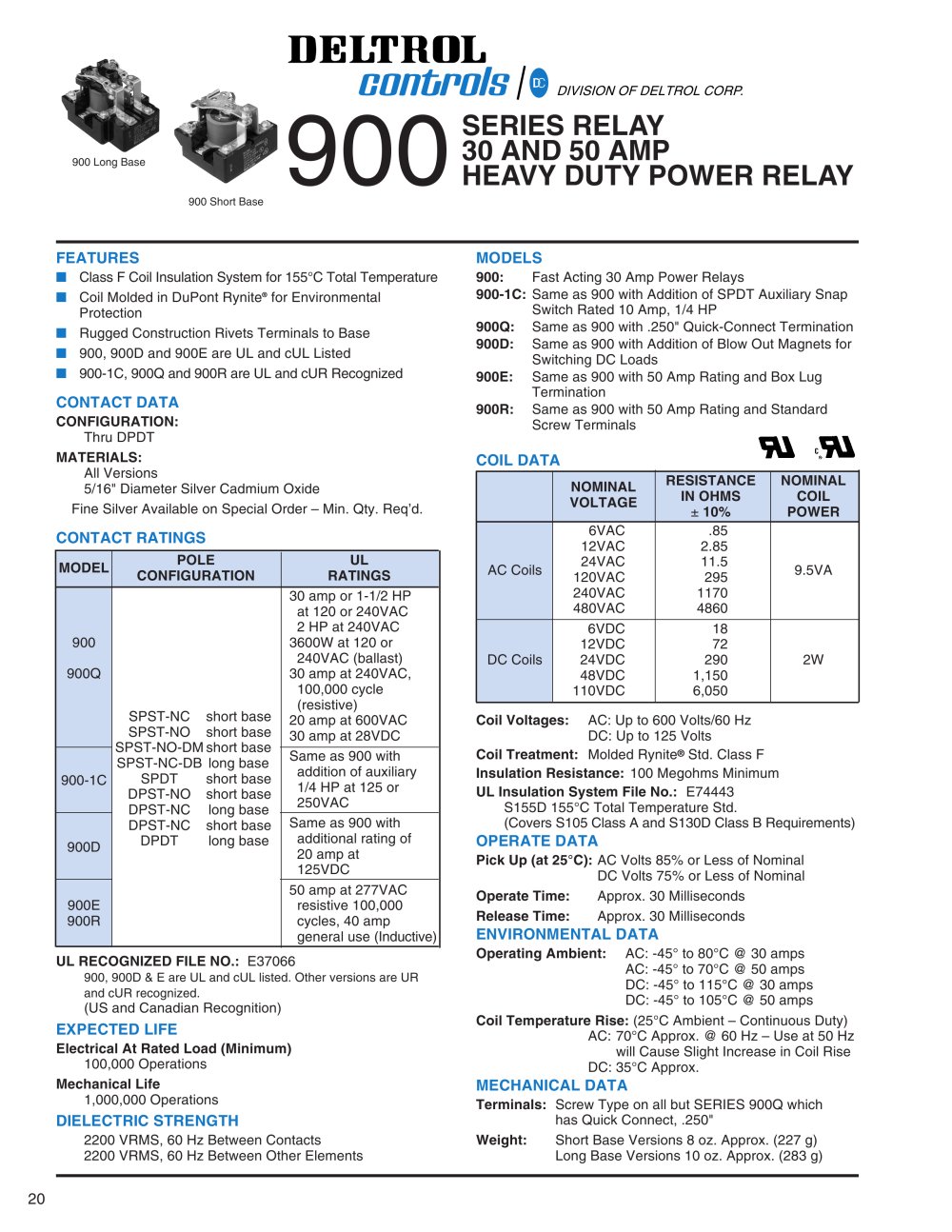

20 900SERIES RELAY 30 AND 50 AMP HEAVY DUTY POWER RELAY FEATURES Class F Coil Insulation System for 155°C Total Temperature Coil Molded in DuPont Rynite® for Environmental Protection Rugged Construction Rivets Terminals to Base 900, 900D and 900E are UL and cUL Listed 900-1C, 900Q and 900R are UL and cUR Recognized CONTACT DATA CONFIGURATION: Thru DPDT MATERIALS: All Versions 5/16" Diameter Silver Cadmium Oxide Fine Silver Available on Special Order – Min. Qty. Req’d. CONTACT RATINGS MODEL POLE UL CONFIGURATION RATINGS 30 amp or 1-1/2 HP at 120 or 240VAC 2 HP at 240VAC 900 3600W at 120 or 240VAC (ballast) 900Q 30 amp at 240VAC, 100,000 cycle (resistive) 20 amp at 600VAC 30 amp at 28VDC Same as 900 with 900-1C addition of auxiliary 1/4 HP at 125 or 250VAC Same as 900 with 900D additional rating of 20 amp at 125VDC 50 amp at 277VAC 900E resistive 100,000 900R cycles, 40 amp general use (Inductive) UL RECOGNIZED FILE NO.: E37066 900, 900D & E are UL and cUL listed. Other versions are UR and cUR recognized. (US and Canadian Recognition) EXPECTED LIFE Electrical At Rated Load (Minimum) 100,000 Operations Mechanical Life 1,000,000 Operations DIELECTRIC STRENGTH 2200 VRMS, 60 Hz Between Contacts 2200 VRMS, 60 Hz Between Other Elements MODELS 900: Fast Acting 30 Amp Power Relays 900-1C: Same as 900 with Addition of SPDT Auxiliary Snap Switch Rated 10 Amp, 1/4 HP 900Q: Same as 900 with .250" Quick-Connect Termination 900D: Same as 900 with Addition of Blow Out Magnets for Switching DC Loads 900E: Same as 900 with 50 Amp Rating and Box Lug Termination 900R: Same as 900 with 50 Amp Rating and Standard Screw Terminals COIL DATA NOMINAL RESISTANCE NOMINAL VOLTAGE IN OHMS COIL ± 10% POWER 6VAC .85 12VAC 2.85 AC Coils 24VAC 11.5 120VAC 295 9.5VA 240VAC 1170 480VAC 4860 6VDC 18 12VDC 72 DC Coils 24VDC 290 2W 48VDC 1,150 110VDC 6,050 Coil Voltages: AC: Up to 600 Volts/60 Hz DC: Up to 125 Volts Coil Treatment: Molded Rynite® Std. Class F Insulation Resistance: 100 Megohms Minimum UL Insulation System File No.: E74443 S155D 155°C Total Temperature Std. (Covers S105 Class A and S130D Class B Requirements) OPERATE DATA Pick Up (at 25°C): AC Volts 85% or Less of Nominal DC Volts 75% or Less of Nominal Operate Time: Approx. 30 Milliseconds Release Time: Approx. 30 Milliseconds ENVIRONMENTAL DATA Operating Ambient: AC: -45° to 80°C @ 30 amps AC: -45° to 70°C @ 50 amps DC: -45° to 115°C @ 30 amps DC: -45° to 105°C @ 50 amps Coil Temperature Rise: (25°C Ambient – Continuous Duty) AC: 70°C Approx. @ 60 Hz – Use at 50 Hz will Cause Slight Increase in Coil Rise DC: 35°C Approx. MECHANICAL DATA Terminals: Screw Type on all but SERIES 900Q which has Quick Connect, .250" Weight: Short Base Versions 8 oz. Approx. (227 g) Long Base Versions 10 oz. Approx. (283 g) SPST-NC short base SPST-NO short base SPST-NO-DM short base SPST-NC-DB long base SPDT short base DPST-NO short base DPST-NC long base DPST-NC short base DPDT long base 900 Short Base 900 Long Base DIVISION OF DELTROL CORP.
