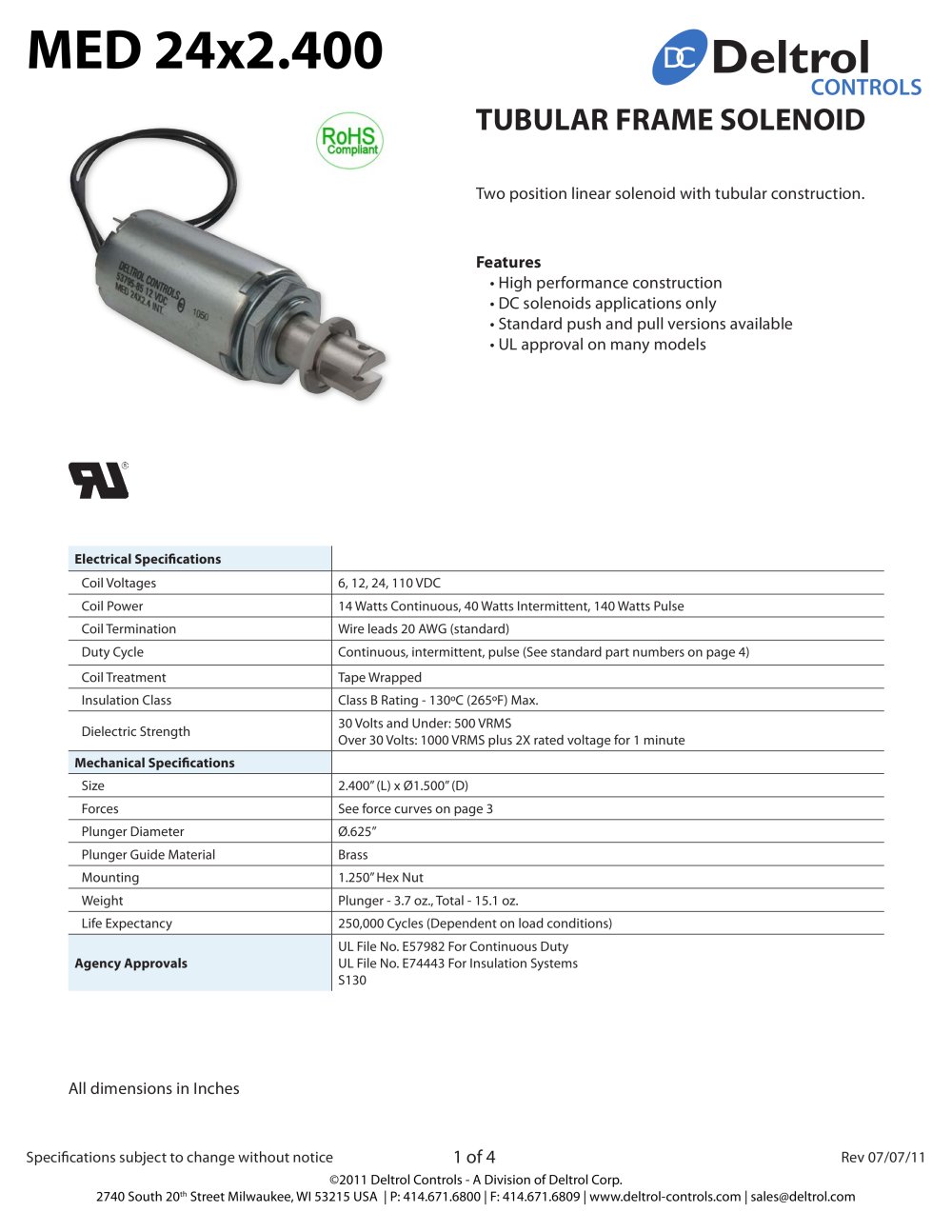

MED 24x2.400 Deltrol ^ CONTR TUBULAR FRAME SOLENOID Two position linear solenoid with tubular construction. Features High performance construction Օ DC solenoids applications only Standard push and pull versions available Օ UL approval on many models Electrical Specifications Coil Voltages 6, 12, 24, 110 VDC Coil Power 14 Watts Continuous, 40 Watts Intermittent, 140 Watts Pulse Coil Termination Wire leads 20 AWG (standard) Duty Cycle Continuous, intermittent, pulse (See standard part numbers on page 4) Coil Treatment Tape Wrapped Insulation Class Class B Rating - 130°C (265°F) Max. Dielectric Strength 30 Volts and Under: 500 VRMS Over 30 Volts: 1000 VRMS plus 2X rated voltage for 1 minute Mechanical Specifications Size 2.400" (L) x 01.500" (D) Forces See force curves on page 3 Plunger Diameter 0.625" Plunger Guide Material Brass Mounting 1.250" Hex Nut Weight Plunger - 3.7 oz., Total - 15.1 oz. Life Expectancy 250,000 Cycles (Dependent on load conditions) Agency Approvals UL File No. E57982 For Continuous Duty UL File No. E74443 For Insulation Systems S130 All dimensions in Inches Specifications subject to change without notice 1 of 4 Rev 07/07/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com

Open the catalog to page 1

MED 24x2.400 Dimensional View Units: Inches [mm] Deltrol CONTROLS PULL 2.449 ±030 [62.20±.76] .875 ±030 [22.23 ±.76] .500 [12.70] .156 [3.96] 0.625 ±003 [15.88±08] PLUNGER 2X6.500 M,N ^ [165.10] MIN- .375 ±.oio [9.53 ±.25] 01.500 138.10] 1 LOCK WASHER .188 ±oio [4.76 ±.25] 2X0.128 ±.003 [3.25 ± .os] PLUNGER STOP AND BUFFER HEX NUT 1.25 ACROSS FLATS #1-27 UNS-2A PLUNGER STOP AND BUFFER PUSH UNLESS OTHERWISE SPECIFIED INCHES ± .015 (MILLIMETERS 0.38) 1.656 ±030 [42.06 ±76] 0.625±oo3 [15.88±08] PLUNGER .165 [4.19] MAX. 0.188± 003 [4.76 ±08] PUSHROD Specifications subject to change without...

Open the catalog to page 2

MED 24x2.400 Force Curves Deltrol CONTR 1S0 160 110 120 100 ao □ 00 10 30 0 DC Continuous Duty - 14 Watts / Force Coki ruir/n voltage 0 Gap 200.5 Oz. 1 1 F~nr믣^ 1 ol 100% Voltage 65.8 O. / OGap 1 0.00 0.10 0.20 0.30 0.40 0 50 0.60 0.70 0.80 0 90 1 00 StrokiXIn.) DC Intermittent Duty - 40 Watts 303 250 200 150 me 50 c / Force l-oiq luvyo vorrage 0 Gap 2S5 Oz. I I I ' r Force Kot 100% Voltage 0 Gap 220 Oi 0 00 0.10 0 20 0 30 040 0.50 0.60 0.70 0.80 O.SO 100 Strokofln,} 550 300 250 200 o 1S0 a. 105 50 0 DC Pulse Duty - 140 Watts -orceCoM 100% Voltage ) Gap 326.5 Oz r~ Force Hot 100% Voltage 0...

Open the catalog to page 3

MED 24x2.400 & Deltrol CONTROLS Standard Part Numbers Parts No. Voltage Duty Cycle Power Resistance (Ohms) Operation Typical Force (oz). 100% Voltage, 77°, Stroke @ 0.000" 0.125" 0.250" 0.500" 0.750" 53795-80 6 VDC Continuous 14 Watts 2.57 Pull 200 100 52 25 17 53796-80 6 VDC 2.57 Push 53795-81* 12 VDC 10.3 Pull 53796-81 12 VDC 10.3 Push 53795-82* 24 VDC 41.1 Pull 53796-82 24 VDC 41.1 Push 53795-83 110VDC 864 Pull 53796-83 110VDC 864 Push 53795-84 6 VDC Intermittent 40 Watts 0.9 Pull 265 175 120 63 35 53796-84 6 VDC 0.9 Push 53795-85* 12 VDC 3.6 Pull 53796-85 12 VDC 3.6 Push 53795-86* 24...
