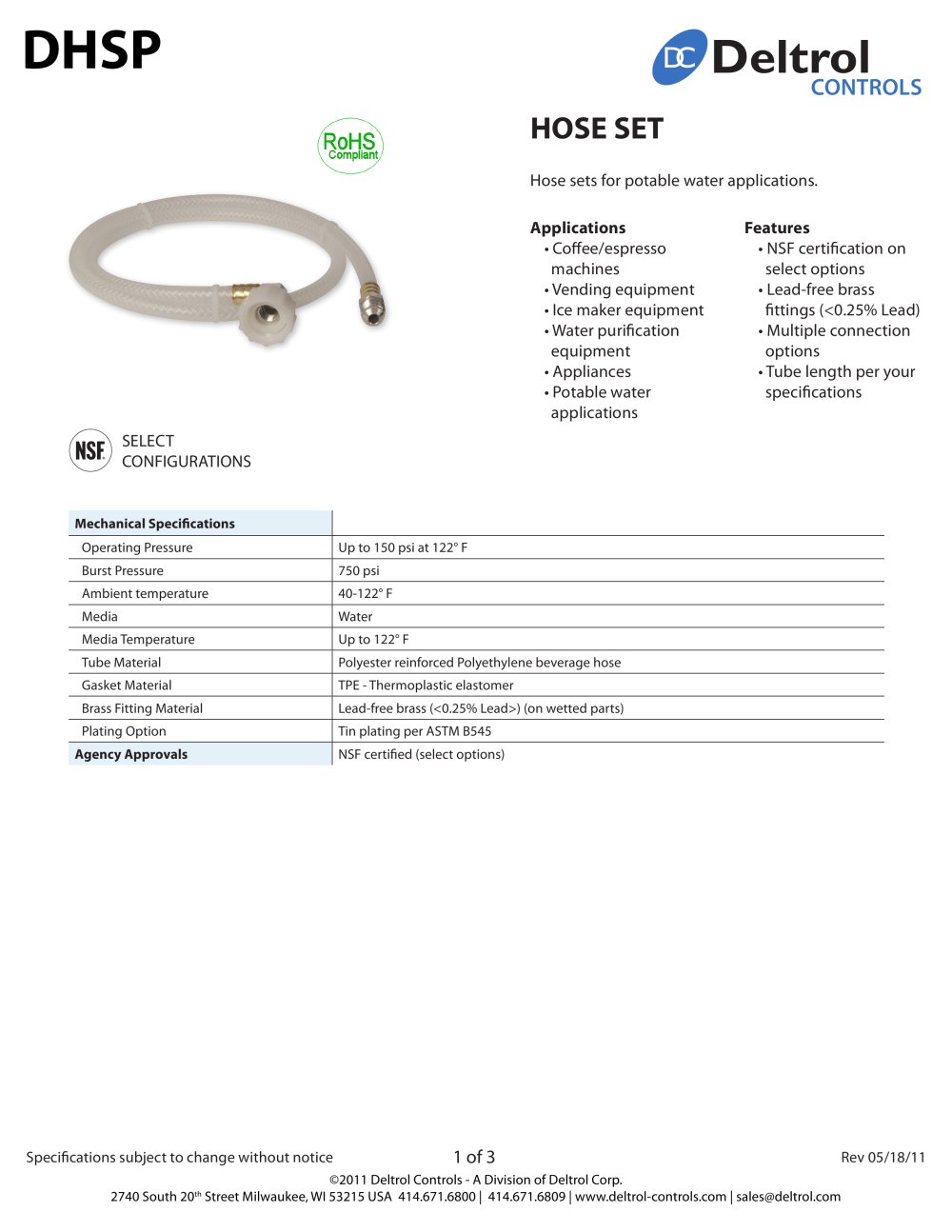

DHSP ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA 414.671.6800 | 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com Specifications subject to change without notice 1 of 3 Rev 05/18/11 Deltrol CONTROLS DC HOSE SET Hose sets for potable water applications. Mechanical Specifications Operating Pressure Up to 150 psi at 122° F Burst Pressure 750 psi Ambient temperature 40-122° F Media Water Media Temperature Up to 122° F Tube Material Polyester reinforced Polyethylene beverage hose Gasket Material TPE - Thermoplastic elastomer Brass Fitting Material Lead-free brass (<0.25% Lead>) (on wetted parts) Plating Option Tin plating per ASTM B545 Agency Approvals NSF certified (select options) Applications • Coffee/espresso machines • Vending equipment • Ice maker equipment • Water purification equipment • Appliances • Potable water applications Features • NSF certification on select options • Lead-free brass fittings (<0.25% Lead) • Multiple connection options • Tube length per your specifications SELECT CONFIGURATIONS
Open the catalog to page 1
DHSP ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA 414.671.6800 | 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com Specifications subject to change without notice 2 of 3 Rev 05/18/11 Deltrol CONTROLS DC Minimum Hose Length: 6 Inches Hose length must be whole inch Dimensional View Units: Inches [mm] Ordering Information DHSP - - - Tube length Fitting #1 Fitting #2 in whole inches Female Swivel Fitting • 20 = 5/8 - 18 UNF 45° Flare No-Lead Brass • 21 = 5/8 - 18 UNF 45° Flare No-Lead Brass with Tin Plating • 22 = 7/16 - 20 UNF...
Open the catalog to page 2
DHSP ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA 414.671.6800 | 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com Specifications subject to change without notice 3 of 3 Rev 05/18/11 Deltrol CONTROLS DC Part Number Hose Length (Inches) Fitting One Fitting Two Model Description 48 01 = 90° Elbow 20 = 5/8 - 18 UNF 45° Flare DHSP-48-01-20 48 01 = 90° Elbow 40 = 5/8 - 18 UNF 45° Flare DHSP-48-01-40 48 01 = 90° Elbow 22 = 7/16 - 20 UNF 45° Flare DHSP-48-01-22 48 01 = 90° Elbow 42 = 7/16 - 20 UNF 45° Flare DHSP-48-01-42 Standard...
Open the catalog to page 3All Deltrol Controls catalogs and technical brochures
-
