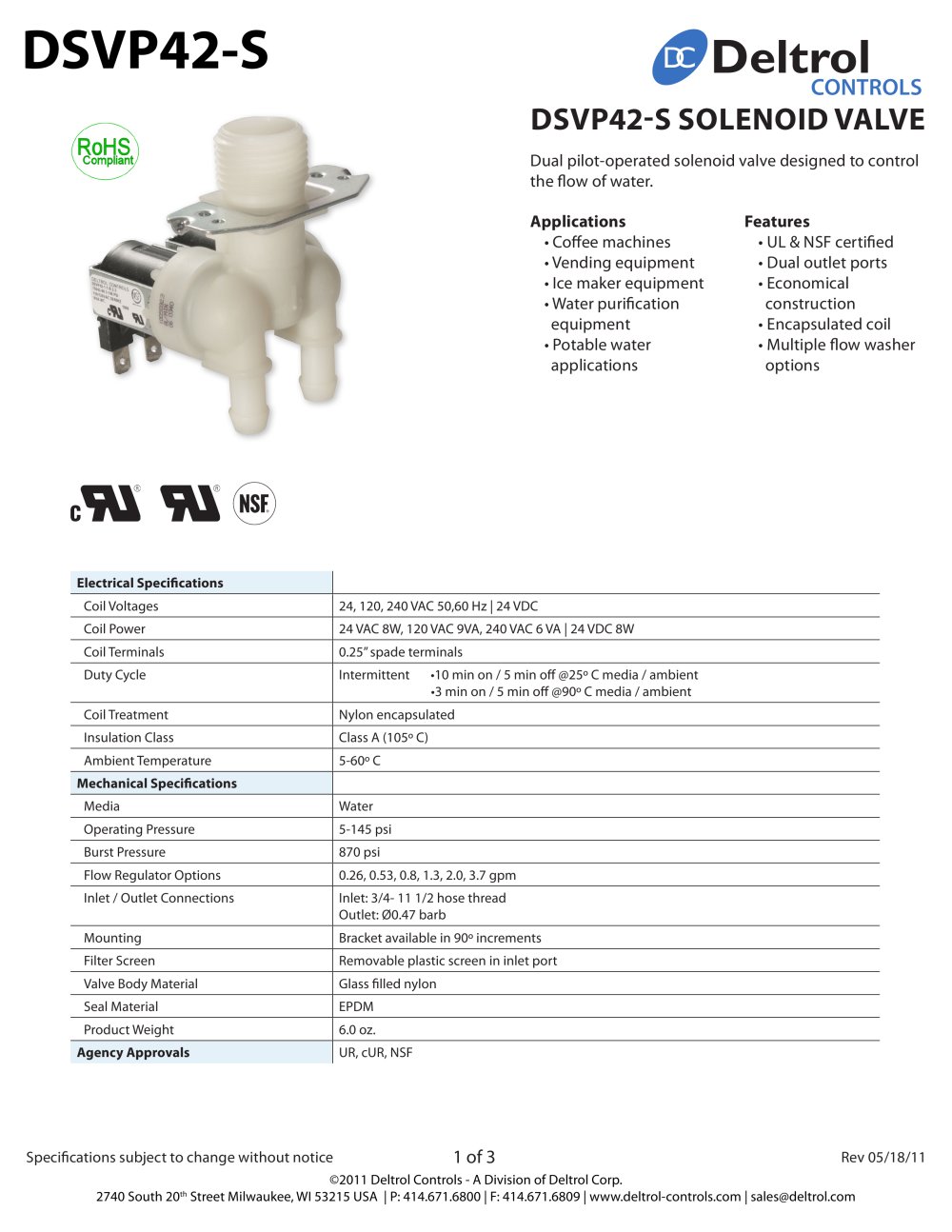

DSVP42-S ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com Specifications subject to change without notice 1 of 3 Rev 05/18/11 Deltrol CONTROLS DC DSVP42-S SOLENOID VALVE Dual pilot-operated solenoid valve designed to control the flow of water. Applications • Coffee machines • Vending equipment • Ice maker equipment • Water purification equipment • Potable water applications Features • UL & NSF certified • Dual outlet ports • Economical construction • Encapsulated coil • Multiple flow washer options Electrical Specifications Coil Voltages 24, 120, 240 VAC 50,60 Hz | 24 VDC Coil Power 24 VAC 8W, 120 VAC 9VA, 240 VAC 6 VA | 24 VDC 8W Coil Terminals 0.25” spade terminals Duty Cycle Intermittent •10 min on / 5 min off @25º C media / ambient •3 min on / 5 min off @90º C media / ambient Coil Treatment Nylon encapsulated Insulation Class Class A (105º C) Ambient Temperature 5-60º C Mechanical Specifications Media Water Operating Pressure 5-145 psi Burst Pressure 870 psi Flow Regulator Options 0.26, 0.53, 0.8, 1.3, 2.0, 3.7 gpm Inlet / Outlet Connections Inlet: 3/4- 11 1/2 hose thread Outlet: Ø0.47 barb Mounting Bracket available in 90º increments Filter Screen Removable plastic screen in inlet port Valve Body Material Glass filled nylon Seal Material EPDM Product Weight 6.0 oz. Agency Approvals UR, cUR, NSF
Open the catalog to page 1
DSVP42-S ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com Specifications subject to change without notice 2 of 3 Rev 05/18/11 Deltrol CONTROLS DC Ordering Information 1. Coil voltage • 1 = 120 VAC • 2 = 240 VAC • 3 = 24 VAC • 4 = 24 VDC DSVP42 - S - 1 - B - 3.7 / 3.7- 3 1 2 2 3 2. Flow regulator • N/A = None • 0.26 = 0.26 gpm (1.0 lpm) • 0.53 = 0.53 gpm (2.0 lpm) • 0.80 = 0.80 gpm (3.0 lpm) • 1.3 = 1.3 gpm (5.0 lpm) • 2.0 = 2.0 gpm (7.5 lpm) (Inlet only) •...
