DSVP15N Dispense Valve

DSVP15N Dispense Valve
1 / 6Pages

Catalog excerpts

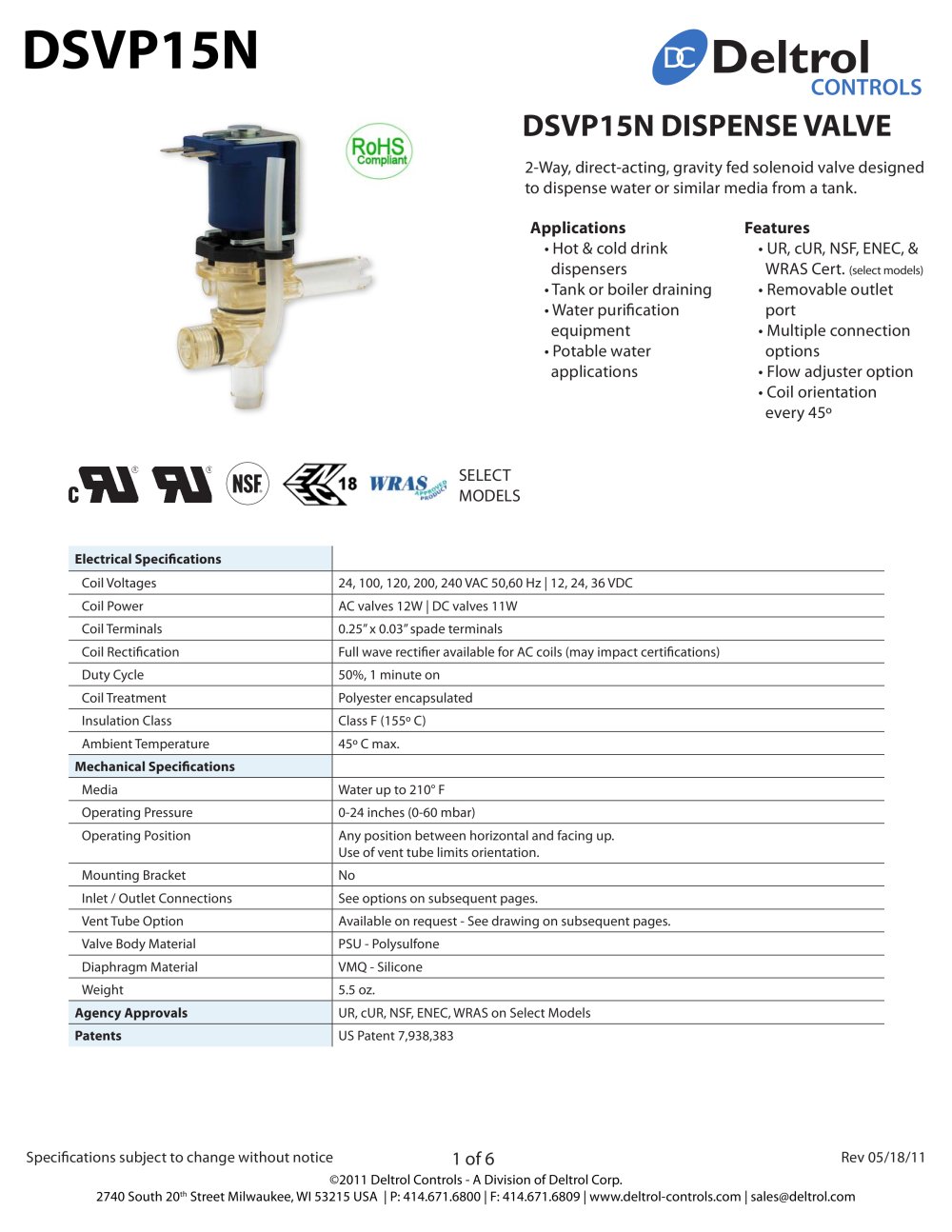

DSVP15N Deltrol ^ CONTROLS DSVP15N DISPENSE VALVE 2-Way, direct-acting, gravity fed solenoid valve designed to dispense water or similar media from a tank. Applications Hot & cold drink dispensers Օ Tank or boiler draining Water purification equipment Օ Potable water applications Features UR, cUR, NSF, ENEC, & WRAS Cert. (select models) Օ Removable outlet port Multiple connection options Օ Flow adjuster option Coil orientation every 45° 18 WRAS.. SELECT MODELS Electrical Specifications Coil Voltages 24, 100, 120, 200, 240 VAC 50,60 Hz | 12, 24, 36 VDC Coil Power AC valves 12W | DC valves 11W Coil Terminals 0.25" x 0.03" spade terminals Coil Rectification Full wave rectifier available for AC coils (may impact certifications) Duty Cycle 50%, 1 minute on Coil Treatment Polyester encapsulated Insulation Class Class F (155° C) Ambient Temperature 45° C max. Mechanical Specifications Media Water up to 210° F Operating Pressure 0-24 inches (0-60 mbar) Operating Position Any position between horizontal and facing up. Use of vent tube limits orientation. Mounting Bracket No Inlet / Outlet Connections See options on subsequent pages. Vent Tube Option Available on request - See drawing on subsequent pages. Valve Body Material PSU - Polysulfone Diaphragm Material VMQ - Silicone Weight 5.5 oz. Agency Approvals UR, cUR, NSF, ENEC, WRAS on Select Models Patents US Patent 7,938,383 Specifications subject to change without notice 1 of 6 Rev 05/18/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com

Open the catalog to page 1

DSVP15N Dimensional View Units: Inches [mm] r 1.20 [30.4]-H Deltrol CONTR OPTJONAL VENT TUBE 2.45 [62.2] INLET OPTIONS-SEE BELOW 4.1S [106.3] 87 [22.2] FLOW ADJUSTfcR .52 [13.3] 1.00 [25.4] 1.07 [27.2] Port Options Units: Inches [mm] INLET PORTS OUTLET PORT 00.50 [12.7] 00.59(15.0] i ) ■■! mSmt 1.19 [30.1] 13ח 3 mri~ [ח1.38 [35.1]-ח| 00.50 CASTLE INLET i i i i WITH FLOW ADJUSTER 00 59 STRAIGHT SEAL 00.50 [12.6] Custom port options available. Tooling charges apply. Spcifications subject to change without notice 2 of 6 Rev 05/18/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740...

Open the catalog to page 2

DSVP15N Deltrol CONTROLS latd Flow data is approximate and will be affected by application variables. User must verify performance in their application. Inlet Pressure (in w.c.) ■Flow Adjuster Full Open ■ Flow Adjuster Half Open Specifications subject to change without notice 3 of 6 Rev 05/18/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com

Open the catalog to page 3

DSVP15N Deltrol CONTR Grommet Seal Options (Silicone) Units: Inches [mm] Spcifications subject to change without notice Rev 05/18/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com

Open the catalog to page 4

DSVP15N iDt Deltrol ^ CONTROLS Ordering Information - Non-Standard Configurations (Minimum Quantities Apply) When ordering, please provide as much of the following information as possible to help specify the appropriate valve configuration for your application. If you require assistance, please contact a Deltrol Controls Sales Engineer: 1. What voltage will be supplied to the valve? 12VDC Օ 24VAC 50/60Hz 24VDC Օ 100VAC 50/60Hz 36VDC Օ 110/120VAC 50/60Hz 200VAC 50/60Hz Օ 220/240VAC 50/60Hz 2. What inlet port option does your application require? (See Port Options on page 2) 3. Will your...

Open the catalog to page 5

DSVP15N iDt Deltrol ^ CONTROLS Ordering Information - Standard Configurations The parts listed below are standard configurations that are typically available through distribution. Please contact your nearest Deltrol distributor for small volume pricing. Part Number Model Voltage ■m ■ 73010-80 DSVP15N-24D-AM 24 VDC il 73011-80 DSVP15N-120E-AM 110/120 VAC 50/60 HZ il 73011-81 DSVP15N-240E-AM 220/240 VAC 50/60 HZ COIL TERMINATION: 0.25x0.03 TERMINALS Օ VALVE BODY MATERIAL: PSU - POLYSULFONE (ORIENTED OPPOSITE INLET PORT) DIAPHRAGM MATERIAL: VMQ - SILICONE Օ ADJUSTABLE FLOW SILICONE VENT TUBE...

Open the catalog to page 6
