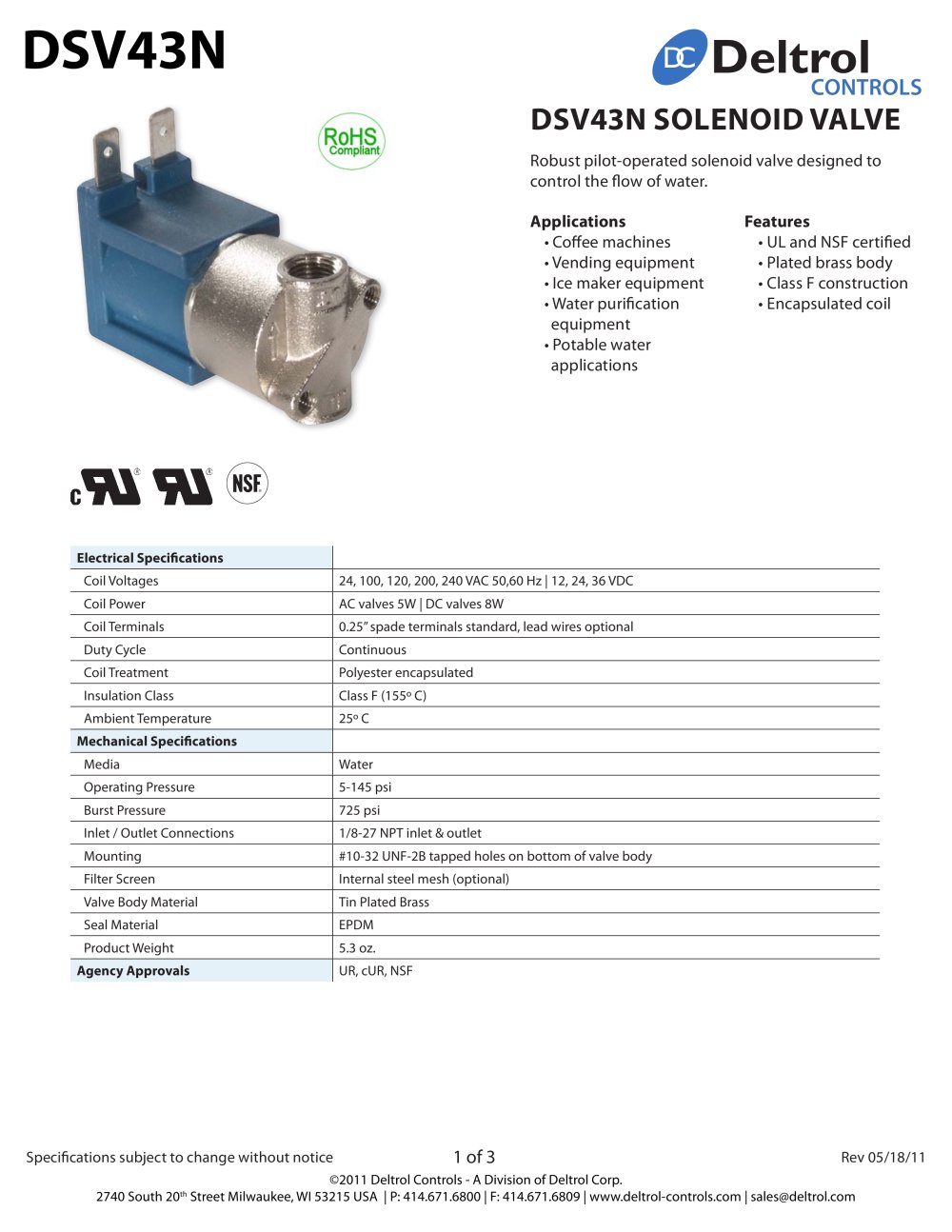

DSV43N Deltrol ^ CONTROL DSV43N SOLENOID VALVE Robust pilot-operated solenoid valve designed to control the flow of water. Applications Coffee machines Օ Vending equipment Ice maker equipment Օ Water purification equipment Potable water applications Features Օ UL and NSF certified Plated brass body Օ Class F construction Encapsulated coil Electrical Specifications Coil Voltages 24, 100, 120, 200, 240 VAC 50,60 Hz | 12, 24, 36 VDC Coil Power AC valves 5W | DC valves 8W Coil Terminals 0.25" spade terminals standard, lead wires optional Duty Cycle Continuous Coil Treatment Polyester encapsulated Insulation Class Class F (155° C) Ambient Temperature 25° C Mechanical Specifications Media Water Operating Pressure 5-145 psi Burst Pressure 725 psi Inlet / Outlet Connections 1/8-27 NPT inlet & outlet Mounting #10-32 UNF-2B tapped holes on bottom of valve body Filter Screen Internal steel mesh (optional) Valve Body Material Tin Plated Brass Seal Material EPDM Product Weight 5.3 oz. Agency Approvals UR, cUR, NSF Specifications subject to change without notice 1 of 3 Rev 05/18/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com

Open the catalog to page 1

DSV43N Dimensional View Units: Inches [mm] Deltrol CONTR 2.43 [61.7] 2X 1/8-27 NPT 1.18 [30.0] 2X 0.27 [6.7] 0.25 [6.3] x 0.03 [0.8] QC TERMINALS -0.56 [14.3] 11.19 P 2X #10-32 UNF-2B 0.25 [6.3]TFULL THD. (S. 0.60 [15.2] 0.68 [17.4] Ordering Information DSV43N - 145 - F - 120A - S12 1 Coil voltage 12D = 12 VDC Օ 24D = 24 VDC 36D = 36 VDC Օ 24A = 24 VAC 100A = 100 VAC Օ 120A = 120 VAC 200A = 200 VAC Օ 240A = 240 VAC Specifications subject to change without notice 2 of 3 Rev 05/18/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P:...

Open the catalog to page 2

DSV43N i«?Deltrol ^ CONTROLS Standard Part Numbers Part Number Coil Voltage Model Description 75030-80 12 VDC DSV43N-F-12D-S12 75030-81 24 VDC DSV43N-F-24D-S12 75030-82 36 VDC DSV43N-F-36D-S12 75031-80 24 VAC 50/60HZ DSV43N-F-24A-S12 75031-82 120 VAC 50/60HZ DSV43N-F-120A-S12 75031-84 240 VAC 50/60HZ DSV43N-F-240A-S12 Specifications subject to change without notice 3 of 3 Rev 05/18/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com

Open the catalog to page 3
