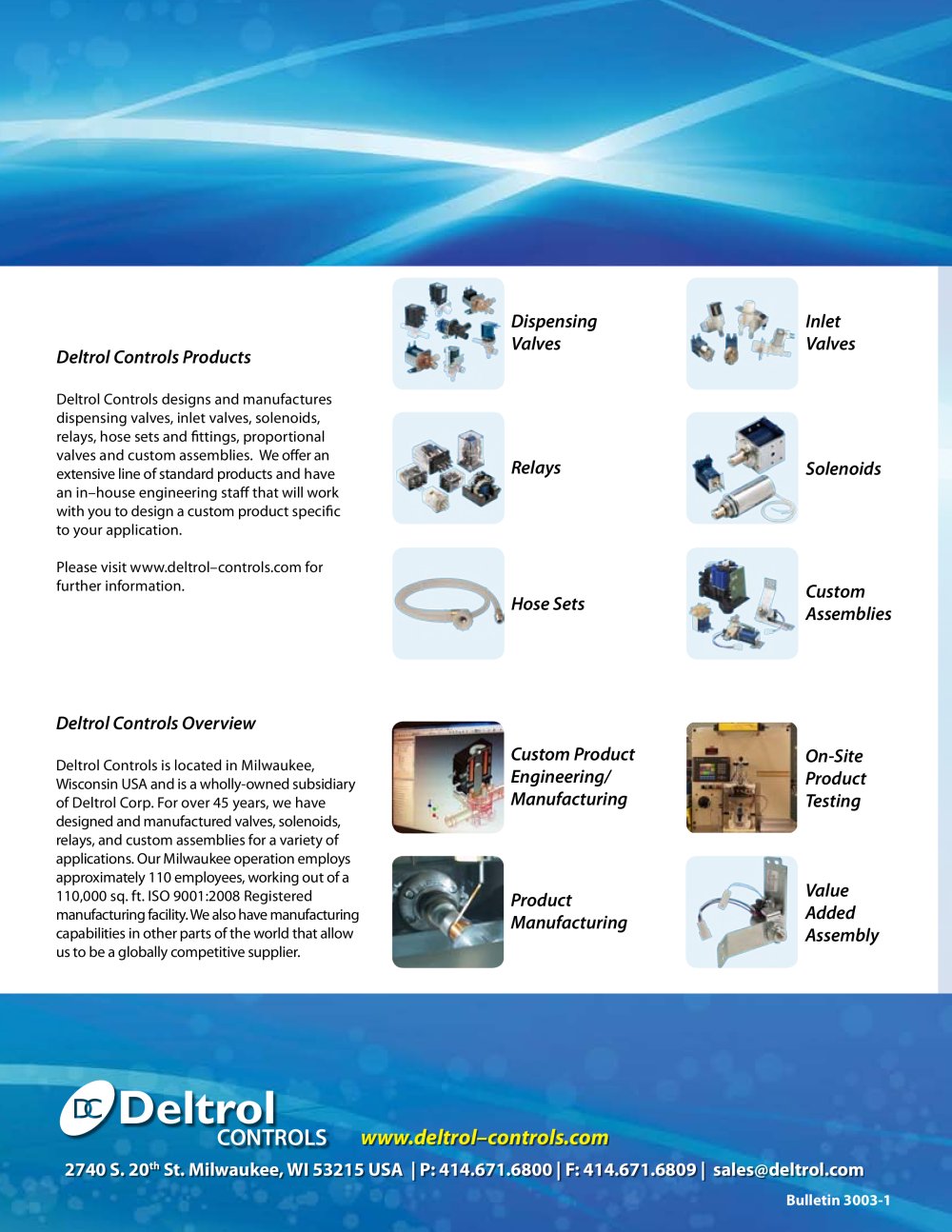

Deltrol Controls Overview
Deltrol Controls, a subsidiary of Deltrol Corp, is based in Milwaukee, Wisconsin, and has been designing and manufacturing valves, solenoids, relays, and custom assemblies for over 45 years. The company operates a 110,000 sq. ft. ISO 9001:2008 registered facility with approximately 110 employees and has global manufacturing capabilities.

Product Offerings
Deltrol Controls offers a range of products including dispensing valves, inlet valves, solenoids, relays, hose sets, fittings, proportional valves, and custom assemblies. They provide both standard products and custom design services to meet specific application needs.

Liquid Dispensing Valves
The liquid dispensing valves are direct-acting, gravity-fed valves designed primarily for dispensing water or similar media. Common applications include hot beverage and vending equipment, ice machines, and floor scrubbers. Key features include:

• Polyester encapsulated Class F coils
• UL recognition and NSF listing for most models
• ENEC and WRAS certifications on select models
• Optional "Quiet Flow" coil for reduced noise
• Life expectancy of 125,000 cycles
• Multiple inlet and outlet configurations

Technical Specifications

• Coil Voltages: 24, 120, 240 VAC, 50/60 HZ; 12, 24, 36 VDC
• Coil Powers: 30 W (standard), 12 W (AC), 11 W DC (standard)
• Duty Cycle: Intermittent and continuous options
• Normal Ambient Temperature: Ranges from 77°F to 113°F
• Media: Water and water-based solutions up to 210°F
• Max Head Pressure: Varies by model, up to 72” W.C.
• Max Flow Rate: Varies by model, up to 5.8 fl oz/sec
• Inlet/Outlet Connection: Various configurations available

Agency Approvals
Most valves are NSF-18 listed and have UL & cUR approvals. Select configurations have ENEC and WRAS certifications.

Conclusion
Deltrol Controls provides a comprehensive range of liquid dispensing valves with various features and certifications to meet diverse application requirements. For detailed product information, customers are encouraged to visit their website.
