D4-HD D-Frame Solenoid

D4-HD D-Frame Solenoid

Product catalog summary

Electrical Specifications
The D-Frame Solenoid offers various coil voltages including 12, 24, 120, and 240 VAC, as well as 6, 12, 24, and 110 VDC. It supports continuous, intermittent, and pulse duty cycles with coil power ratings of 31 VA continuous, 145 VA intermittent, and 310 VA pulse for AC, and 11.5 Watts continuous, 38 Watts intermittent, and 115 Watts pulse for DC. Standard coil termination is via 0.187” quick connect terminals, with optional 0.250” terminals or wire leads. The solenoid is encapsulated with an optional tape-wrapped coil, and insulation is rated at Class A (105º C) or optionally Class F (155º C). Dielectric strength is 500 VRMS for 30 volts and under, and 1000 VRMS plus 2X rated voltage for over 30 volts.

Mechanical Specifications
The solenoid measures 2.175” x 1.437” x 1.625” and features a plunger diameter of 0.500” made from plastic. It mounts using eight #8-32 UNC-2B holes and weighs 13.3 oz in total, with the plunger weighing 2.5 oz. The life expectancy is 250,000 cycles, depending on load conditions. It has UL approval for continuous duty and insulation systems.

Features
The solenoid balances cost and performance, is available in both AC and DC models, and features encapsulated coils on most models. Many models have UL approval.

Force Curves
The document provides force curves for various duty cycles: AC continuous duty at 31 VA, DC continuous duty at 11.5 Watts, DC intermittent duty at 38 Watts, DC pulse duty at 115 Watts, AC intermittent duty at 145 VA, and AC pulse duty at 310 VA. Standard intermittent duty cycle is 25% with a maximum of 3 minutes "ON" and 9 minutes "OFF". Standard pulse duty cycle is 10% with 100 milliseconds "ON" and 900 milliseconds "OFF". A heat sink of approximately 36 sq. in. is required.

Standard Part Numbers
The document lists various part numbers with specifications for voltage, duty cycle, power, resistance, and typical force at different strokes. For example, part number 53720-81 is a 12 VAC continuous duty solenoid with 31 VA power and a resistance of 0.588 Ohms, providing a pull force of 92 oz at 0.000” stroke.

Catalog excerpts

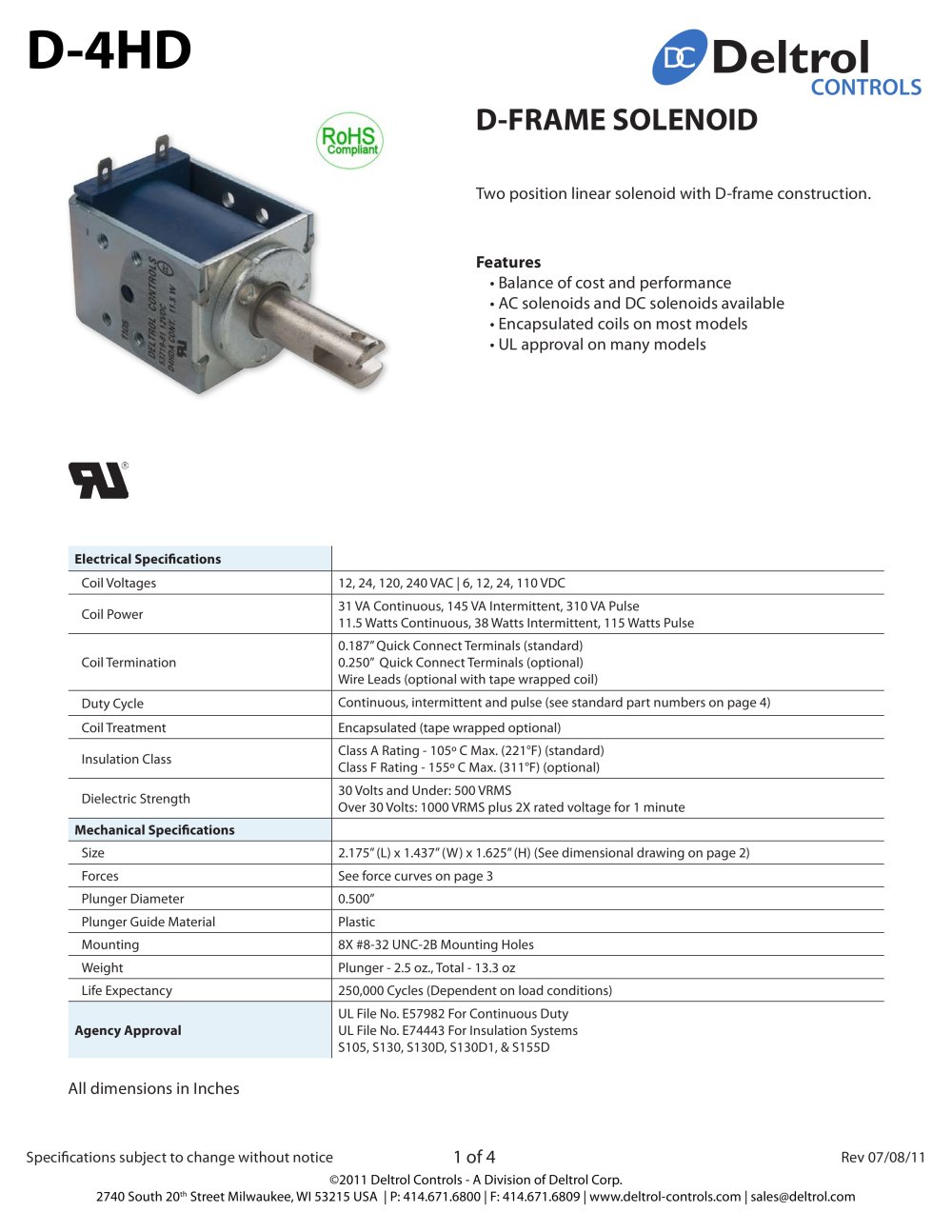

D-4HD Deltrol ^ CONTR D-FRAME SOLENOID Two position linear solenoid with D-frame construction. Features Balance of cost and performance Օ AC solenoids and DC solenoids available Encapsulated coils on most models Օ UL approval on many models Electrical Specifications Coil Voltages 12, 24, 120, 240 VAC | 6, 12, 24, 110 VDC Coil Power 31 VA Continuous, 145 VA Intermittent, 310 VA Pulse 11.5 Watts Continuous, 38 Watts Intermittent, 115 Watts Pulse Coil Termination 0.187" Quick Connect Terminals (standard) 0.250" Quick Connect Terminals (optional) Wire Leads (optional with tape wrapped coil) Duty Cycle Continuous, intermittent and pulse (see standard part numbers on page 4) Coil Treatment Encapsulated (tape wrapped optional) Insulation Class Class A Rating - 105° C Max. (221°F) (standard) Class F Rating - 155° C Max. (311°F) (optional) Dielectric Strength 30 Volts and Under: 500 VRMS Over 30 Volts: 1000 VRMS plus 2X rated voltage for 1 minute Mechanical Specifications Size 2.175" (L) x 1.437" (W) x 1.625" (H) (See dimensional drawing on page 2) Forces See force curves on page 3 Plunger Diameter 0.500" Plunger Guide Material Plastic Mounting 8X #8-32 UNC-2B Mounting Holes Weight Plunger - 2.5 oz., Total - 13.3 oz Life Expectancy 250,000 Cycles (Dependent on load conditions) Agency Approval UL File No. E57982 For Continuous Duty UL File No. E74443 For Insulation Systems S105, S130, S130D, S130D1, & S155D All dimensions in Inches Specifications subject to change without notice 1 of 4 Rev 07/08/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | [email protected]

Open the catalog to page 1

D-4HD Deltrol CONTR Force Curves AC Continuous Duty - 31 VA DC Continuous Duty - 11.5 Watts . i i i i -FORCE 6> 25° C, 100% VOLTAGE HOLDING FORCE ~ 141 OZ. '■FORCE ® 25° C, 80% VOLTAGE" HOLDING FORCE = 131 OZ. ח FORCE * 105° Cr 100% VOLTAGE. HOLDING FORCE = 122 OZ. ■ FORCE ® 105° C, 80% VOLTAGE "HOLDING FORCE = 115 OZ. i 1-1-1 i ח FORCE <3 25° C. 100"». VOLTAGE HOLDING FORCE = 92 OZ. : FORCE @ 105* C, 100% VOLTAGE HOLDING FORCE = 86 OZ. : FORCE ® 25° C, 85% VOLTAGE HOLDING FORCE ■ 72 OZ. ■ FORCE 105° C, 85% VOLTAGE 'HOLDING FORCE = 67 OZ. 120; :100| -4 .S .6 stroke In irtchet .4 5 .6 strke ir>...
