D30-ML Magnetic Latching Solenoid
1 / 3Pages

Catalog excerpts

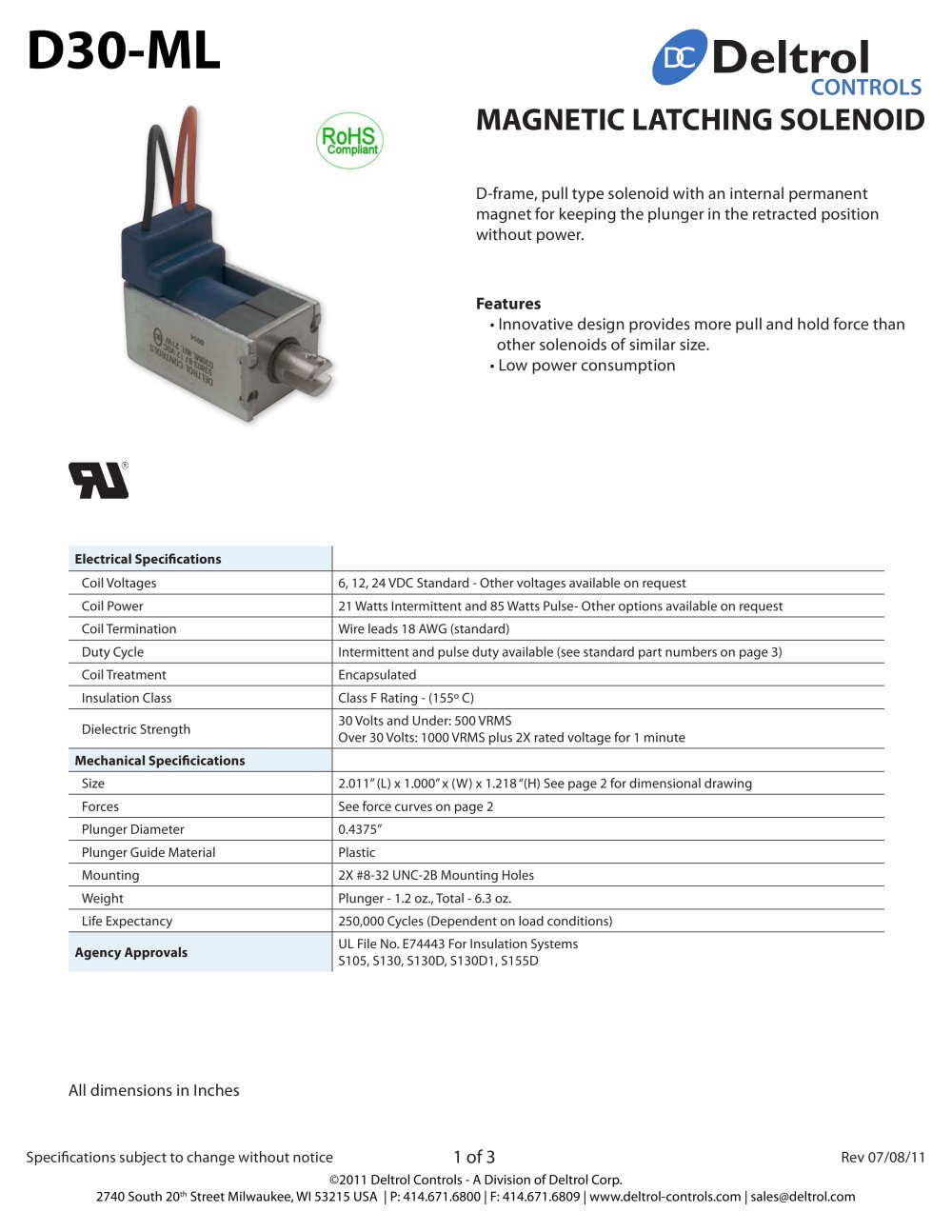

D30-ML Magnetic Latching Solenoid - 1

D30-ML Deltrol ^ CONTROLS MAGNETIC LATCHING SOLENOID D-frame, pull type solenoid with an internai permanent magnet for keeping the plunger in the retracted position without power. Features Innovative design provides more pull and hold force than other solenoids of similar size. Օ Low power consumption Electrical Specifications Coil Voltages 6, 12, 24 VDC Standard - Other voltages available on request Coil Power 21 Watts Intermittent and 85 Watts Pulse- Other options available on request Coil Termination Wire leads 18 AWG (standard) Duty Cycle Intermittent and pulse duty available (see standard part numbers on page 3) Coil Treatment Encapsulated Insulation Class Class F Rating - (155° C) Dielectric Strength 30 Volts and Under: 500 VRMS Over 30 Volts: 1000 VRMS plus 2X rated voltage for 1 minute Mechanical Specificications Size 2.011" (L) x 1.000" x (W) x 1.218 "(H) See page 2 for dimensional drawing Forces See force curves on page 2 Plunger Diameter 0.4375" Plunger Guide Material Plastic Mounting 2X #8-32 UNC-2B Mounting Holes Weight Plunger - 1.2 oz., Total - 6.3 oz. Life Expectancy 250,000 Cycles (Dependent on load conditions) Agency Approvals UL File No. E74443 For Insulation Systems S105, S130, S130D, S130D1, S155D All dimensions in Inches Specifications subject to change without notice 1 of 3 Rev 07/08/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com

Open the catalog to page 1
D30-ML Magnetic Latching Solenoid - 2

D30-ML Deltrol CONTR Dimensional View Units: Inches [mm] 1.218±-015 [30.94 i.4] 1.664*-Ois [42.27±J] 1.290±.ois [32.77 ± J] ~" 0.4375 ± -02o 1 000±.15 . S"[11.11*1] ~" [25.40±-4] r~ j PLUNGER I ■^-■■_J I_ .375 t.015 [9.53 ±..4| .145±.0i0 [3.68 .313 [7.94] .609* .ois [15.47±-j) MAGNETS 4x .030 [-8] MAX. OVER STAKING BURR 0.093 ± oo3 [2.36±-*뛮 ~~\ J PULL IN: (+) ORANGE | (-) BLACK RELEASE: (-) ORANGE | (+) BLACK 156±ois I3.96±>] H .812 [20 62] 1 .109 ±.025 [28 17 - ■] Force Curves D30-ML INTERMITTENT DUTV (21W) D30-ML PULSE DUTY (85W) N O LU U OC o N O LU U OC O 0.00 0.10 0.20 0.30 0,40 0.S0...

Open the catalog to page 2
D30-ML Magnetic Latching Solenoid - 3

D30-ML Deltrol CONTR Standard Part Numbers Parts No. Voltage Duty Cycle 53803-86* 6 VDC 53803-87* 12 VDC Intermittent 53803-88* 24 VDC 53803-92 6 VDC 53803-93 12 VDC Pulse 53803-94 24 VDC Power Resistance (Ohms) Operation Typical Force (oz). 100% Voltage, 77° F, Stroke @ 0.000" 0.125" 0.250" 0.500" 0.750" 96 65 46 19.7 7.7 96 172 152 99 31 21 Watts 1.7 6.8 27.2 Pull 85 Watts 0.42 1.7 6.8 (*) Normally Stocked Non stocked items require a minimum order Specifications subject to change without notice 3 of 3 Rev 07/08/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street...

Open the catalog to page 3
