D3-HD D-Frame Solenoid

D3-HD D-Frame Solenoid

Product catalog summary

Electrical Specifications
The D-Frame Solenoid offers a range of coil voltages including 6, 12, 24, 120, and 240 VAC, as well as 6, 12, 24, and 110 VDC. It supports continuous, intermittent, and pulse duty cycles with power ratings of 21 VA continuous, 120 VA intermittent, and 210 VA pulse for AC, and 11 Watts continuous, 27 Watts intermittent, and 110 Watts pulse for DC. Coil termination options include .187” and .250” quick connect terminals, with wire leads available optionally. The solenoid is encapsulated with an optional tape wrap, and insulation is rated at Class A (105ºC) or Class F (155ºC). Dielectric strength is 500 VRMS for 30 volts and under, and 1000 VRMS plus 2X rated voltage for over 30 volts.

Mechanical Specifications
The solenoid measures 1.737” x 1.437” x 1.626” and features a plunger diameter of 0.500” with a plastic guide material. It includes 8 mounting holes for #8-32 UNC-2B screws and weighs 11 oz. The life expectancy is 250,000 cycles, depending on load conditions. UL approval is available for continuous duty and insulation systems.

Features
The solenoid balances cost and performance, is available in both AC and DC models, and features encapsulated coils on most models. Many models have UL approval.

Force Curves
The document provides force curves for various duty cycles, including AC continuous duty at 21 VA, DC continuous duty at 11 Watts, and others. Standard intermittent duty cycle is 25% with a maximum of 3 minutes "ON" and 9 minutes "OFF". Pulse duty cycle is 10% with 100 milliseconds "ON" and 900 milliseconds "OFF".

Standard Part Numbers
The document lists standard part numbers with specifications for voltage, duty cycle, power, resistance, and typical force at various strokes. Some parts are normally stocked, while non-stocked items require a minimum order.

Catalog excerpts

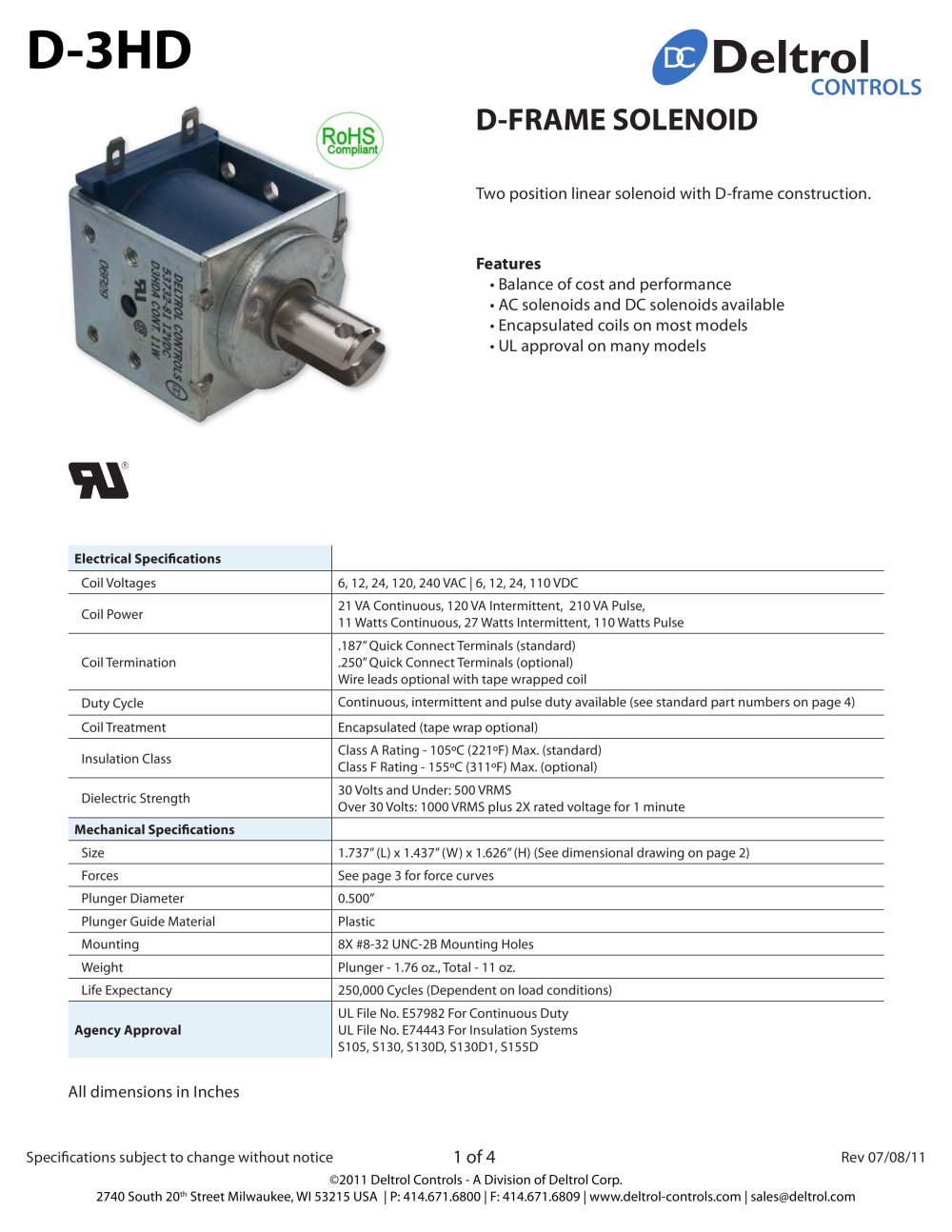

D-3HD Deltrol ^ CONTR D-FRAME SOLENOID Two position linear solenoid with D-frame construction. Features Balance of cost and performance Օ AC solenoids and DC solenoids available Encapsulated coils on most models Օ UL approval on many models Electrical Spcifications Coil Voltages 6, 12, 24, 120, 240 VAC | 6, 12, 24, 110 VDC Coil Power 21 VA Continuous, 120 VA Intermittent, 210 VA Pulse, 11 Watts Continuous, 27 Watts Intermittent, 110 Watts Pulse Coil Termination .187" Quick Connect Terminals (standard) .250" Quick Connect Terminals (optional) Wire leads optional with tape wrapped coil Duty Cycle Continuous, intermittent and pulse duty available (see standard part numbers on page 4) Coil Treatment Encapsulated (tape wrap optional) Insulation Class Class A Rating - 105°C (221°F) Max. (standard) Class F Rating - 155°C (311°F) Max. (optional) Dielectric Strength 30 Volts and Under: 500 VRMS Over 30 Volts: 1000 VRMS plus 2X rated voltage for 1 minute Mechanical Specifications Size 1.737" (L) x 1.437" (W) x 1.626" (H) (See dimensional drawing on page 2) Forces See page 3 for force curves Plunger Diameter 0.500" Plunger Guide Material Plastic Mounting 8X #8-32 UNC-2B Mounting Holes Weight Plunger - 1.76 oz., Total - 11 oz. Life Expectancy 250,000 Cycles (Dependent on load conditions) Agency Approval UL File No. E57982 For Continuous Duty UL File No. E74443 For Insulation Systems S105, S130, S130D, S130D1, S155D All dimensions in Inches Specifications subject to change without notice 1 of 4 Rev 07/08/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | [email protected]

Open the catalog to page 1

D-3HD Force Curves Deltrol CONTR AC Continuous Duty - 21 VA DC Continuous Duty - 11 Watts FORCES' 2 5° C, 100% VOLTAGE HOLDING FORCE = 87 OZ. "■FORCE G> 105° C, 100% VOLTAGE HOLDING FORCE = 84 OZ. rFOHCE @ 25' C, 85% VOLTAGE HOLDING FORCE = 68 OZ. 1.0 120, ■FORCE <3> 25" C, 100% VOLTAGE HOLDING FORCE = 153 OZ. Օ FORCE <a 25° C, HOLDING FORCE 80% VOLTAGE = 141 OZ. FORCE ® 105° C, 100% VOLTAGE. HOLDING FORCE = 139 OZ. 100 .4 .5 .6 stroke iri inches .4 .S .6 stroke *rr inches AC Intermittent Duty - 120 VA DC Intermittent Duty - 27 Watts .4 .5 ,6 stroke in Inches .4 .5 .6 stroke in inches AC Pulse...

Open the catalog to page 3
