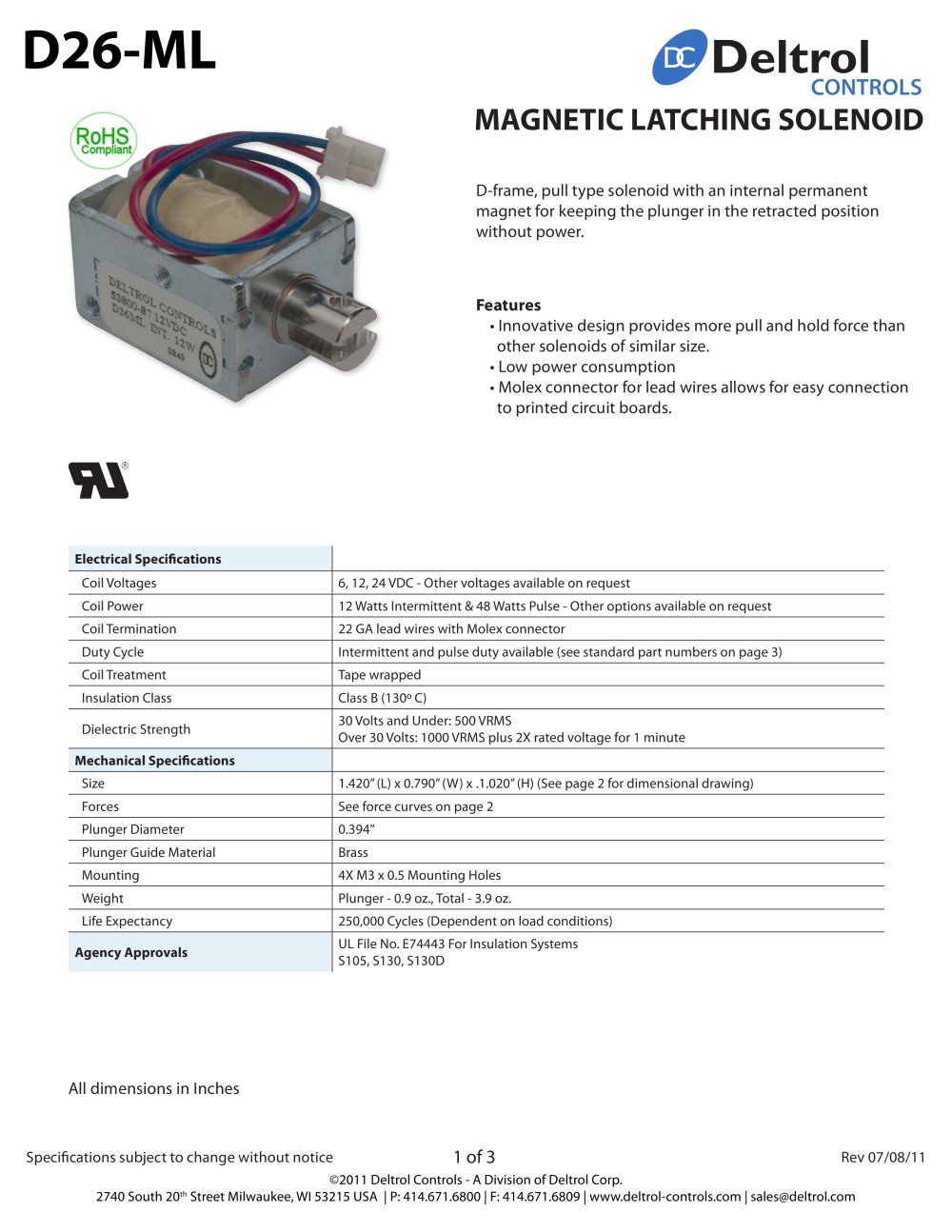

D26-ML Deltrol ^ CONTROLS MAGNETIC LATCHING SOLENOID D-frame, pull type solenoid with an internai permanent magnet for keeping the plunger in the retracted position without power. Features Innovative design provides more pull and hold force than other solenoids of similar size. Օ Low power consumption Molex connector for lead wires allows for easy connection to printed circuit boards. Electrical Specifications Coil Voltages 6, 12, 24 VDC - Other voltages available on request Coil Power 12 Watts Intermittent & 48 Watts Pulse - Other options available on request Coil Termination 22 GA lead wires with Molex connector Duty Cycle Intermittent and pulse duty available (see standard part numbers on page 3) Coil Treatment Tape wrapped Insulation Class Class B (130° C) Dielectric Strength 30 Volts and Under: 500 VRMS Over 30 Volts: 1000 VRMS plus 2X rated voltage for 1 minute Mechanical Specifications Size 1.420" (L) x 0.790" (W) x .1.020" (H) (See page 2 for dimensional drawing) Forces See force curves on page 2 Plunger Diameter 0.394" Plunger Guide Material Brass Mounting 4X M3 x 0.5 Mounting Holes Weight Plunger - 0.9 oz., Total - 3.9 oz. Life Expectancy 250,000 Cycles (Dependent on load conditions) Agency Approvals UL File No. E74443 For Insulation Systems S105, S130, S130D All dimensions in Inches Specifications subject to change without notice 1 of 3 Rev 07/08/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com

Open the catalog to page 1

D26-ML Dimensional View Units: Inches [mm] Deltrol CONTR Force Curves 140 D26ML INTERMITTENT DUTY (12W) r 1 /25! C - 100% V CLTAGE / /105 C- 100% VOLTAGE / ^MAG IET ONLY - HOLD FC RCE109( _____ '- '- ==== ===== 120 100 )Z O( 80 uj O DC O 11. 50 40 20 0 0.000 0.050 0.100 0.150 0.200 0.250 0.300 0.350 0.400 0.450 0.500 STROKE (IN) Standard intermittent duty cycle at nominal voltage is 25%, with three (3) minutes maximum "ON" and nine "9" minutes minimum "OFF" in a repetitive cycle. Standard Pulse duty cycle is 10% with 100 milliseconds "ON" and 900 milliseconds "OFF" NOTE: Approx. 36 sq. in...

Open the catalog to page 2

D26-ML Deltrol CONTR Standard Part Numbers Parts No. Voltage Duty Cycle 53800-86* 6 VDC 53800-87* 12 VDC Intermittent 53800-88* 24 VDC 53800-92 6 VDC 53800-93 12 VDC Pulse 53800-94 24 VDC Power Resistance (Ohms) Operation Typical Force (oz). 100% Voltage, 77° F, Stroke @ 0.000" 0.125" 0.250" 0.500" 0.750" 109 47.1 31 14.3 0 109 71.2 46.8 19.4 0 12 Watts 3 12 48 Pull 48 Watts 0.75 3 12 (*) Normally Stocked Non stocked items require a minimum order Specifications subject to change without notice 3 of 3 Rev 07/08/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street...

Open the catalog to page 3
