Deltrol Controls
D-90 D-Frame Solenoid

D-90 D-Frame Solenoid

Product catalog summary

Electrical Specifications
The D-Frame Solenoid offers coil voltages of 6, 12, 24, and 110 VDC. It supports continuous power at 23 Watts, intermittent power at 58 Watts, and pulse power at 230 Watts. The coil termination is via wire leads, and it supports continuous, intermittent, and pulse duty cycles. The coil is tape wrapped, with insulation class options of Class A (105ºC max) and Class B (130ºC max). Dielectric strength is rated at 500 VRMS for 30 volts and under, and 1000 VRMS plus 2X rated voltage for over 30 volts.

Mechanical Specifications
The solenoid measures 3.540” (L) x 1.750” (W) x 1.940” (H) and features a plunger diameter of 0.625”. The plunger guide is made of plastic, and the mounting uses 12X #8-32 UNC-2B screws. The plunger weighs 4.3 oz., with a total weight of 34 oz. It has a life expectancy of 250,000 cycles, depending on load conditions.

Agency Approval
The solenoid has UL approval for continuous duty (File No. E57982) and insulation systems (File No. E74443, S105, S130).

Features
The solenoid is a two-position linear solenoid with D-frame construction, balancing cost and performance. It is available in DC models with UL approval on many models.

Force Curves
The document provides force curves for continuous duty (23 Watts), intermittent duty (58 Watts), and pulse duty (230 Watts). The standard intermittent duty cycle is 25% with a maximum of 3 minutes "ON" and 9 minutes "OFF". The pulse duty cycle is 10% with 100 milliseconds "ON" and 900 milliseconds "OFF". A heat sink of approximately 100 sq. in. is required.

Standard Part Numbers
The document lists standard part numbers with specifications for voltage, duty cycle, power, resistance, and typical force at various strokes. For example, part number 53654-80 operates at 6 VDC with continuous duty and 23 Watts power, providing a pull force of 150 oz. at 0.000” stroke.

Catalog excerpts

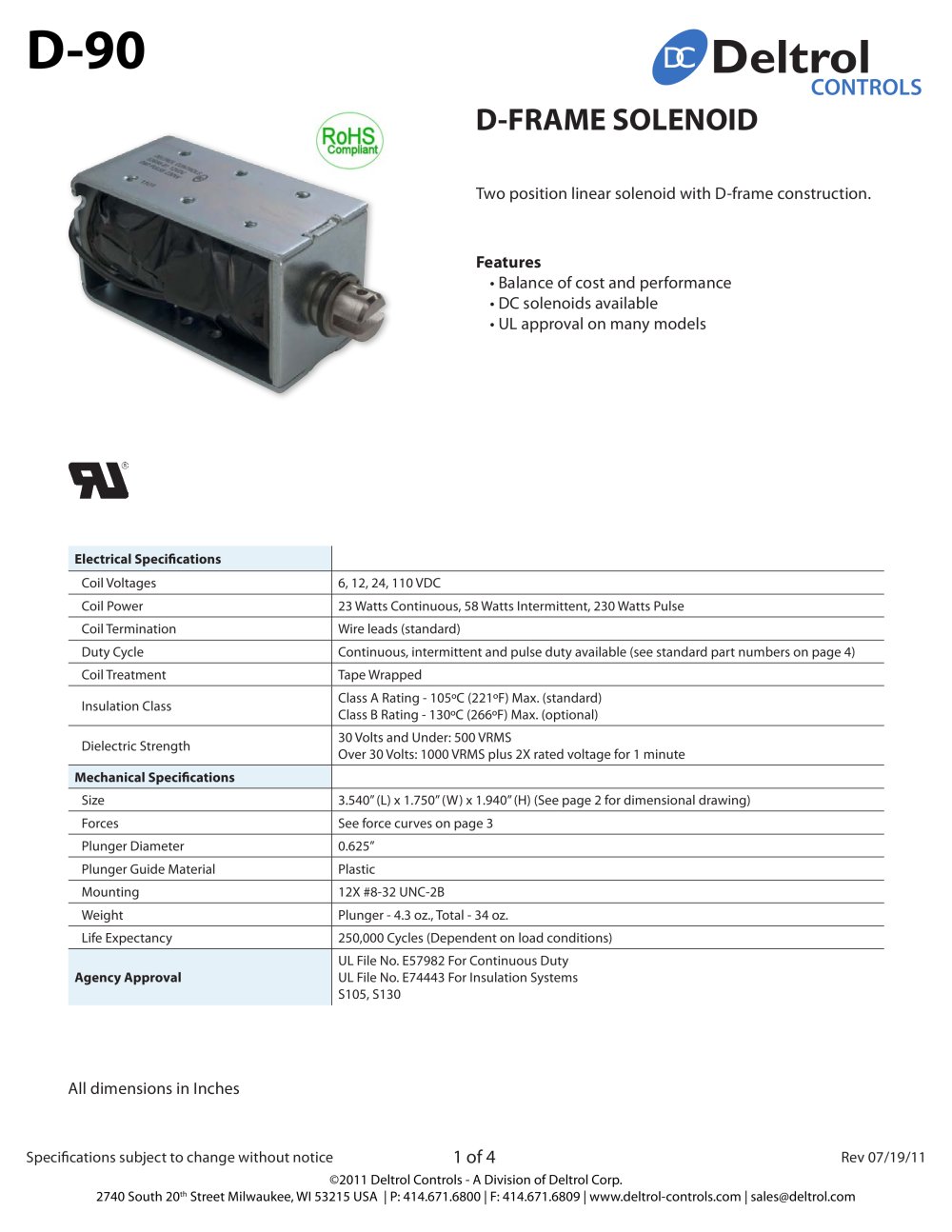

D-90 iJ?Deltrol CONTROLS RoHS Comptent D-FRAME SOLENOID Two position linear solenoid with D-frame construction. Features Balance of cost and performance Օ DC solenoids available UL approval on many models su Eloctrical Spթcifications Coil Voltages 6, 12, 24, 110VDC Coil Power 23 Watts Continuous, 58 Watts Intermittent, 230Watts Puise CoilTermination Wireleads (standard) Duty Cycle Continuous, intermittent and puise duty available (see standard part numbers on page 4) Col Treatment Tape Wrapped InsulationClass Class A Rating - 10S°C (221"F) Max. (standard) Ciass B Rating - 130°C (266°F) Max. (optional) Dielectric Strength 30 Vohsand Under: 500 VRMS Over30VoKs: 1000VRMS plus 2X rated voKage for 1 minute Mtchankal Spcifications Size 3.540*(L)x 1750"(W)x 1.940"(H)(See page2 fordimensional drawing) Forces See force curves on page 3 PlungerDiarneter 0.625* Plunger Guide Material Plastic Mounting 12X H8-32UNC2B Weight Plunger - 43 oz.. Total - 34 oz. Life Expectancy 250,000 Cycles (Dpendent on load conditions) Agency Approval UL Rie No E57982 For Continuous Duty UL File No. E74443 For Insulation Systems S105, Si30 Ail dimensions in Inches Spcifications subject to change without notice 1 of 4 Rev 07/19/11 32011 Deltrol Controls - A Division of Dettrol Corp. 2740 South 2CT Street Mihvaukee,WI 53215 USA | P: 414.671.6803 | F: 414,671 6809 | wvAV.deltrol-controlsxom | salesc&deltroLcom

Open the catalog to page 1

D-90 iJ?Deltrol CONTROLS Force Curves DC Continuous Duty - 23 Watts DC Intermittent Duty - 58 Watts DC Puise Duty - 230 Watts 4s ^^^^^ / M 31 Spcifications subje Standard intermittent duty cycle at nominal voltage is 25^, with three (3) minutes maximum "ON* and nine (9) minutes minimum"Of F*in a rp驩titive cyde. Standard Puise duty cycle is 10% with 100 milfi seconds *OrT and 900 mil [.seconds "OFF-NOTE; Approx 100 sq. in. Heat Stnk Required NOTE: CoW Force & 25* C (77T) Coil Temprature Mot Force 9 110*C {230D Coil Temprature 3of4 Rev 07/19/11 ©2011 Deltrol Controls - A Division of Dettrol Corp....

Open the catalog to page 3
