D-4 D-Frame Solenoid

D-4 D-Frame Solenoid

Product catalog summary

Electrical Specifications
The D-Frame Solenoid offers a range of coil voltages including 6, 12, 24, 120, and 240 VAC, as well as 6, 12, 24, and 110 VDC. Coil power varies with duty cycle: 10 VA for continuous, 59 VA for intermittent, and 100 VA for pulse operations. The solenoid features quick connect terminals and optional wire leads. It supports continuous, intermittent, and pulse duty cycles, with encapsulated coil treatment and insulation class options of Class A (105ºC) and Class F (155ºC). Dielectric strength is rated at 500 VRMS for 30 volts and under, and 1000 VRMS plus twice the rated voltage for over 30 volts.

Mechanical Specifications
The solenoid measures 1.996” x 1.437” x 1.625” and includes a plunger with a diameter of 0.4375”. It is mounted using eight #8-32 UNC-2B holes and weighs 12 oz. The life expectancy is 250,000 cycles, depending on load conditions. Agency approvals include UL File No. E57982 for continuous duty and UL File No. E74443 for insulation systems.

Features
The solenoid balances cost and performance, is available in both AC and DC models, and features encapsulated coils on most models. Many models have UL approval.

Force Curves
The document provides force curves for various duty cycles, including AC continuous duty at 10 VA, DC continuous duty at 11.5 Watts, and others. Standard intermittent duty cycle is 25% with a maximum of 3 minutes "ON" and 9 minutes "OFF". Pulse duty cycle is 10% with 100 milliseconds "ON" and 900 milliseconds "OFF". A heat sink of approximately 36 sq. in. is required.

Standard Part Numbers
The document lists part numbers with specifications for voltage, duty cycle, power, resistance, and typical force at various strokes. Some parts are normally stocked, while non-stocked items require a minimum order.

Catalog excerpts

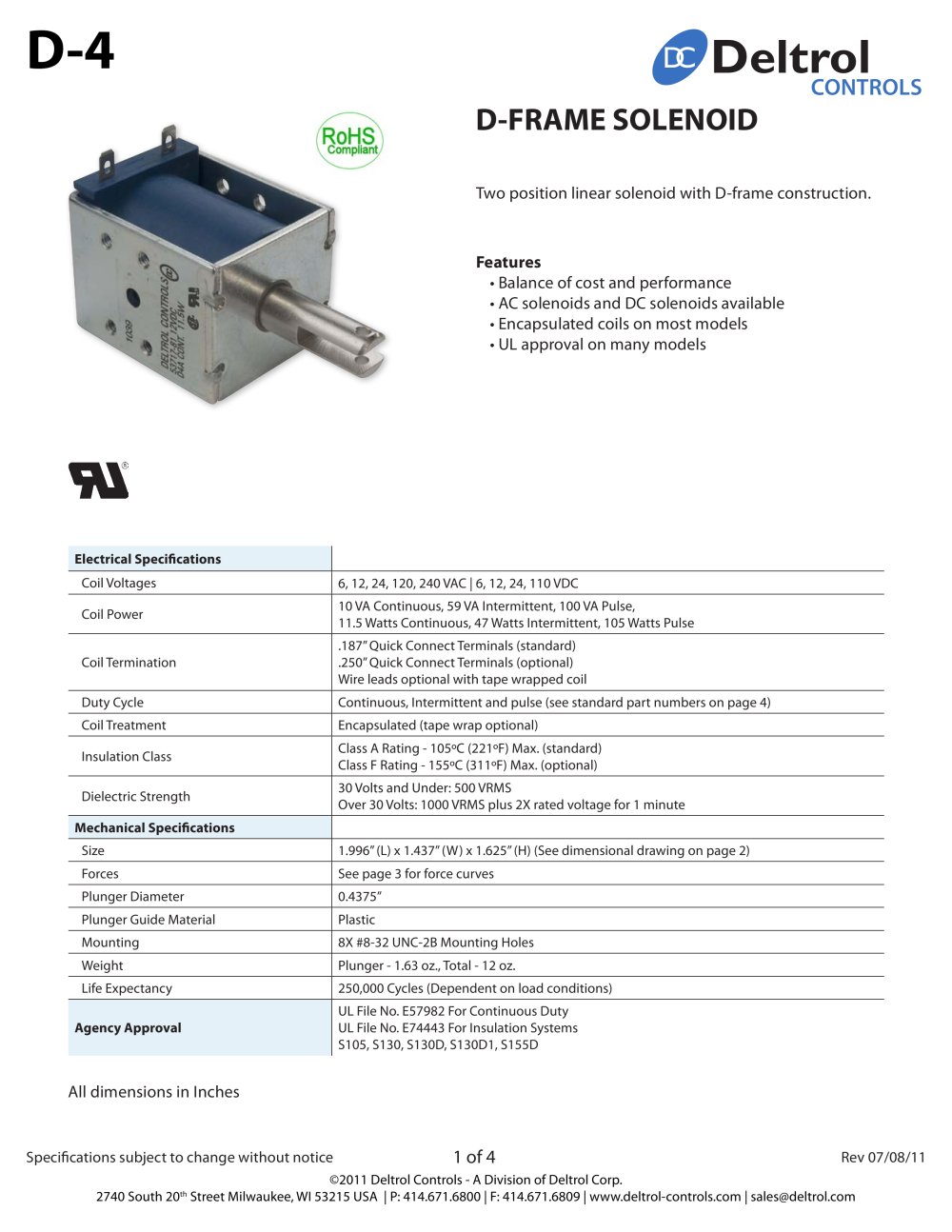

D-4 Deltrol ^ CONTR D-FRAME SOLENOID Two position linear solenoid with D-frame construction. Features Balance of cost and performance Օ AC solenoids and DC solenoids available Encapsulated coils on most models Օ UL approval on many models Electrical Spcifications Coil Voltages 6, 12, 24, 120, 240 VAC | 6, 12, 24, 110 VDC Coil Power 10 VA Continuous, 59 VA Intermittent, 100 VA Pulse, 11.5 Watts Continuous, 47 Watts Intermittent, 105 Watts Pulse Coil Termination .187" Quick Connect Terminals (standard) .250" Quick Connect Terminals (optional) Wire leads optional with tape wrapped coil Duty Cycle Continuous, Intermittent and pulse (see standard part numbers on page 4) Coil Treatment Encapsulated (tape wrap optional) Insulation Class Class A Rating - 105°C (221°F) Max. (standard) Class F Rating - 155°C (311°F) Max. (optional) Dielectric Strength 30 Volts and Under: 500 VRMS Over 30 Volts: 1000 VRMS plus 2X rated voltage for 1 minute Mechanical Specifications Size 1.996" (L) x 1.437" (W) x 1.625" (H) (See dimensional drawing on page 2) Forces See page 3 for force curves Plunger Diameter 0.4375" Plunger Guide Material Plastic Mounting 8X #8-32 UNC-2B Mounting Holes Weight Plunger - 1.63 oz., Total - 12 oz. Life Expectancy 250,000 Cycles (Dependent on load conditions) Agency Approval UL File No. E57982 For Continuous Duty UL File No. E74443 For Insulation Systems S105, S130, S130D, S130D1, S155D All dimensions in Inches Specifications subject to change without notice 1 of 4 Rev 07/08/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | [email protected]

Open the catalog to page 1

D-4 Deltrol CONTR Force Curves AC Continuous Duty - 10 VA 140 DC Continuous Duty - 11.5 Watts E 50 .4 5 .6 stroke in inches .4 .5 .6 stroke In incnes AC Intermittent Duty - 59 VA "T DC Intermittent Duty - 47 Watts .4 .5 .e stroke in inches .4 .S .6 stroka In inches AC Pulse Duty- 100 VA DC Pulse Duty - 105 Watts 140 120 100 « 80 .4 .5 .6 stroke in inches .4 .5 .6 stroke in inches Standard intermittent duty cycle at nominal voltage is 25%, with three (3) minutes maximum "ON" and nine (9) minutes minimum "OFF" in a repetitive cycle. Standard Pulse duty cycle is 10% with 100 milliseconds "ON" and...

Open the catalog to page 3
