D-30 D-Frame Solenoid

D-30 D-Frame Solenoid

Product catalog summary

Electrical Specifications
The D-Frame Solenoid offers a range of coil voltages including 6, 12, 24, 120, and 240 VAC, as well as 6, 12, 24, and 110 VDC. It supports continuous, intermittent, and pulse duty cycles with coil power ratings of 13 VA continuous, 37 VA intermittent, and 120 VA pulse for AC, and 8.5 Watts continuous, 21 Watts intermittent, and 85 Watts pulse for DC. The solenoid features .187” quick connect terminals, with optional wire leads and tape-wrapped coils. Insulation is available in Class A (105ºC) and Class F (155ºC) ratings, with dielectric strength of 500 VRMS for 30 volts and under, and 1000 VRMS plus 2X rated voltage for over 30 volts.

Mechanical Specifications
The solenoid measures 2.015” x 1.000” x 1.218” and includes a plunger with a diameter of 0.4375”. It is constructed with a plastic plunger guide and features two #8-32 UNC-2B mounting holes. The plunger weighs 1.06 oz., with a total weight of 7 oz. The life expectancy is 250,000 cycles, depending on load conditions.

Agency Approval
The solenoid is UL approved for continuous duty (File No. E57982) and insulation systems (File No. E74443) for models S105, S130, S130D, S130D1, and S155D.

Features
The solenoid balances cost and performance, is available in both AC and DC models, and features encapsulated coils on most models. Many models have UL approval.

Force Curves and Duty Cycles
The standard intermittent duty cycle is 25% with a maximum of 3 minutes "ON" and a minimum of 9 minutes "OFF". The standard pulse duty cycle is 10% with 100 milliseconds "ON" and 900 milliseconds "OFF". A heat sink of approximately 36 sq. in. is required.

Standard Part Numbers
The document lists various part numbers with corresponding voltage, duty cycle, power, resistance, and typical force at different strokes. Continuous, intermittent, and pulse duty cycles are detailed for both AC and DC voltages.

Catalog excerpts

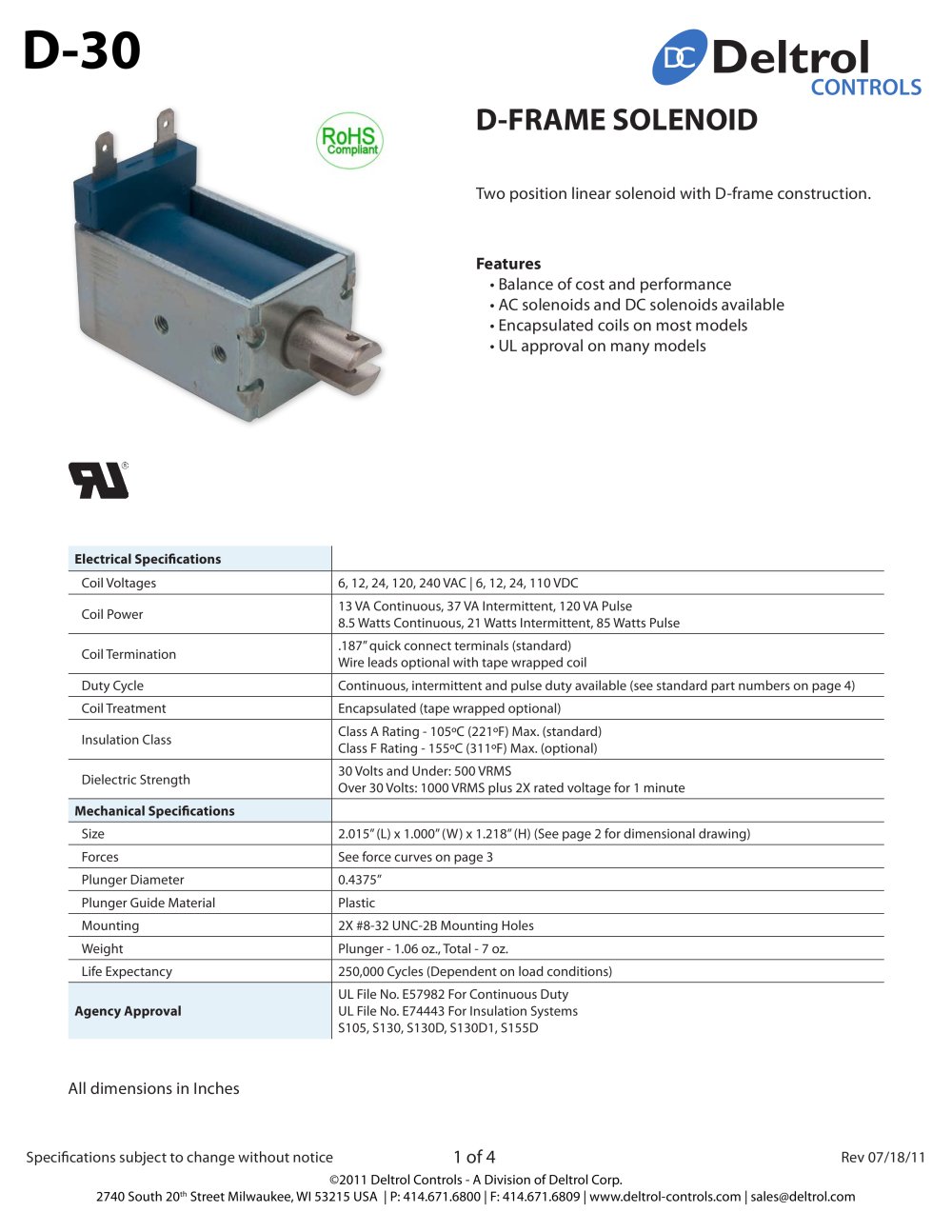

D-30 Deltrol ^ CONTR D-FRAME SOLENOID Two position linear solenoid with D-frame construction. Features Balance of cost and performance Օ AC solenoids and DC solenoids available Encapsulated coils on most models Օ UL approval on many models Electrical Specifications Coil Voltages 6, 12, 24, 120, 240 VAC | 6, 12, 24, 110 VDC Coil Power 13 VA Continuous, 37 VA Intermittent, 120 VA Pulse 8.5 Watts Continuous, 21 Watts Intermittent, 85 Watts Pulse Coil Termination .187" quick connect terminals (standard) Wire leads optional with tape wrapped coil Duty Cycle Continuous, intermittent and pulse duty available (see standard part numbers on page 4) Coil Treatment Encapsulated (tape wrapped optional) Insulation Class Class A Rating - 105°C (221°F) Max. (standard) Class F Rating - 155°C (311°F) Max. (optional) Dielectric Strength 30 Volts and Under: 500 VRMS Over 30 Volts: 1000 VRMS plus 2X rated voltage for 1 minute Mechanical Specifications Size 2.015" (L) x 1.000" (W) x 1.218" (H) (See page 2 for dimensional drawing) Forces See force curves on page 3 Plunger Diameter 0.4375" Plunger Guide Material Plastic Mounting 2X #8-32 UNC-2B Mounting Holes Weight Plunger - 1.06 oz., Total - 7 oz. Life Expectancy 250,000 Cycles (Dependent on load conditions) Agency Approval UL File No. E57982 For Continuous Duty UL File No. E74443 For Insulation Systems S105, S130, S130D, S130D1, S155D All dimensions in Inches Specifications subject to change without notice 1 of 4 Rev 07/18/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | [email protected]

Open the catalog to page 1

D-30 Deltrol CONTR Dimensional View Units: Inches [mm] 2x 8-32 UNC - 2B TAP MTG.HOLES UNLESS OTHERWISE SPECIFIED INCHES ± .015 (MILLIMETERS 038) .156±.oi5[4.0±.4] 2x 0.O94±-OO3 [2.4i.i] (.265 [6.7]) .312t-ois[7.9±.4] 656± 025 [16.7±.e] 1.746±-03i [44.3±.s] 1.000i ois [25.4±-4] .500±.ois[12.7±.i] 187x 020 2X [4.75 x 0.50] MALE Q.C./SOLDER TERMINALS .625 [15.9] 375±.0is[9.5±.4] .05011.27] MAX. 1.218±.oi5[30.9±.4] T 660±.oi5[16.8±.4] F" 145±.oio [3.7±.] _i_ 0.4375±.oo2O [11,1 ±.1] PLUNGER .371 ±.ois [9.4 4.4]- 4x .030[S]MAX. OVER STAKING l2.015±-0i5 [51.2±'4]| BURR UNLESS OTHERWISE SPECIFIED INCHES...

Open the catalog to page 2

D-30 Force Curves Deltrol CONTR AC Continuous Duty - 13 VA DC Continuous Duty - 8.5 Watts .2 ,3 stroke in inches. 2 .3 stroke in mchcs DC Intermittent Duty - 21 Watts i i i i i i FORCE S> 25° C, 100% VOLTAGE HOLDING FORCE ' 133 OZ. FORCE G> 105° C, 100% VOLTAGE" HOLDING FORCE = 125 OZ 80% VOLTAGE. = 125 OZ AC Intermittent Duty - 37 VA 1 .2 .3 stroke in inches 2 .3 stroke in inches AC Pulse Duty- 120 VA DC Pulse Duty - 85 Watts .2 .3 stroke in inches stroke in inches Standard intermittent duty cycle at nominal voltage is 25%, with three (3) minutes maximum "ON" and nine (9) minutes minimum "OFF"...

Open the catalog to page 3
