D-2 D-Frame Solenoid

D-2 D-Frame Solenoid
1 / 4Pages

Catalog excerpts

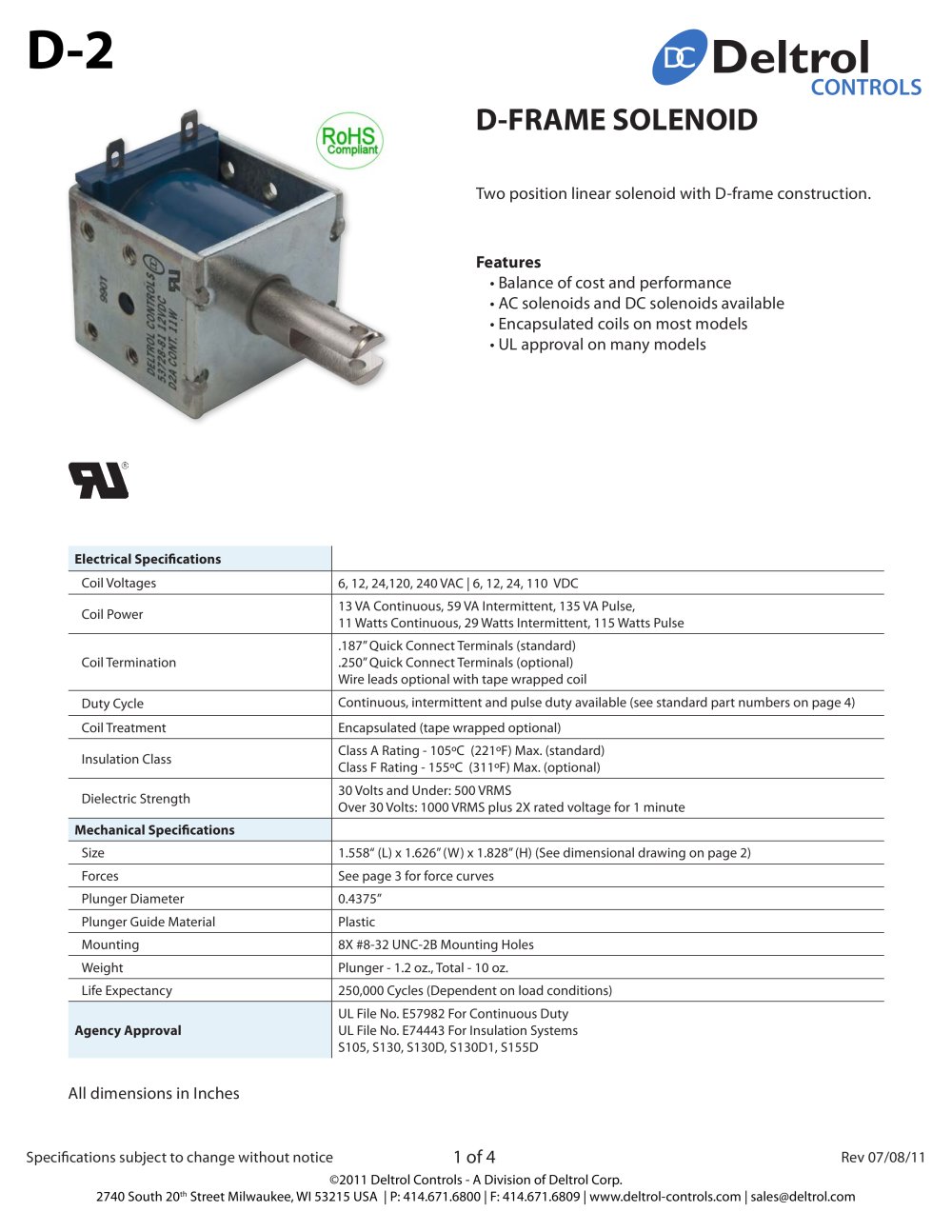

D-2 Deltrol ^ CONTR D-FRAME SOLENOID Two position linear solenoid with D-frame construction. Features Balance of cost and performance Օ AC solenoids and DC solenoids available Encapsulated coils on most models Օ UL approval on many models Electrical Specifications Coil Voltages 6, 12, 24,120, 240 VAC | 6, 12, 24, 110 VDC Coil Power 13 VA Continuous, 59 VA Intermittent, 135 VA Pulse, 11 Watts Continuous, 29 Watts Intermittent, 115 Watts Pulse Coil Termination .187" Quick Connect Terminals (standard) .250" Quick Connect Terminals (optional) Wire leads optional with tape wrapped coil Duty Cycle Continuous, intermittent and pulse duty available (see standard part numbers on page 4) Coil Treatment Encapsulated (tape wrapped optional) Insulation Class Class A Rating - 105°C (221°F) Max. (standard) Class F Rating - 155°C (311°F) Max. (optional) Dielectric Strength 30 Volts and Under: 500 VRMS Over 30 Volts: 1000 VRMS plus 2X rated voltage for 1 minute Mechanical Specifications Size 1.558" (L) x 1.626" (W) x 1.828" (H) (See dimensional drawing on page 2) Forces See page 3 for force curves Plunger Diameter 0.4375" Plunger Guide Material Plastic Mounting 8X #8-32 UNC-2B Mounting Holes Weight Plunger - 1.2 oz., Total - 10 oz. Life Expectancy 250,000 Cycles (Dependent on load conditions) Agency Approval UL File No. E57982 For Continuous Duty UL File No. E74443 For Insulation Systems S105, S130, S130D, S130D1, S155D All dimensions in Inches Specifications subject to change without notice 1 of 4 Rev 07/08/11 ©2011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com

Open the catalog to page 1

D-2 Force Curves Deltrol CONTR AC Continuous Duty - 13 VA DC Continuous Duty - 11 Watts 70 I I I I I I FORCE @ 25° C, 100% VOLTAGE FORCE* 25° CT 100% VOLTAGE HOLDING FORCE = 107 OZ. FORCE ® 25° C, 80% VOLTAGE HOLDING FORCE = 98 OZ. FORCE ® 105° C, 100% VOLTAGE HOLDING FORCE = 94 OZ. FORCE <3> 105° C, BO% VOLTAGE HOLDING FORCE = 89 OZ. .4 .5 .6 stroke in inches 1.0 .4 .5 .6 sUoke in ftncties 1.C AC Intermittent Duty - 59 VA ~i՗iiחi i r DC Intermittent Duty - 29 Watts 140 FORCE ® 25" C, 100% VOLTAGE HOLDING FORCE - 131 OZ. FORCE <§> 105" C, 100% VOLTAGE . HOLDING FORCE = 129 OZ. 120 100 1.0...

Open the catalog to page 3
