Deltrol Controls
D-17 D-Frame Solenoid

D-17 D-Frame Solenoid

Product catalog summary

Electrical Specifications
The D-Frame Solenoid offers a range of coil voltages including 6, 12, 24, 120, and 240 VAC, as well as 6, 12, 24, and 110 VDC. Coil power varies with duty cycle: 9.4 VA for continuous, 23 VA for intermittent, and 93 VA for pulse. The solenoid features .187” quick connect terminals, with wire leads as an option. It supports continuous, intermittent, and pulse duty cycles, with encapsulated coil treatment and Class A insulation rated at 105ºC. Dielectric strength is 500 VRMS for voltages 30 and under, and 1000 VRMS plus twice the rated voltage for over 30 volts.

Mechanical Specifications
The solenoid measures 1.624” x 0.875” x 1.062” and includes a plunger with a diameter of 0.3125”. It is mounted using two #6-32 UNC-2B holes and weighs 4 oz in total. The life expectancy is 250,000 cycles, depending on load conditions. The solenoid is UL approved for continuous duty and insulation systems.

Features
The solenoid is designed for cost-effective performance, available in both AC and DC models, with encapsulated coils and UL approval on many models.

Force Curves
The document provides force curves for various duty cycles: AC continuous duty at 9.4 VA, DC continuous duty at 6 Watts, DC intermittent duty at 14.5 Watts, DC pulse duty at 60 Watts, AC intermittent duty at 23 VA, and AC pulse duty at 93 VA. Standard intermittent duty cycle is 25% with a maximum of 3 minutes "ON" and 9 minutes "OFF". Pulse duty cycle is 10% with 100 milliseconds "ON" and 900 milliseconds "OFF".

Standard Part Numbers
The document lists part numbers with corresponding voltage, duty cycle, power, resistance, and typical force at various strokes. Continuous, intermittent, and pulse duty cycles are detailed for both VAC and VDC models, with specific force values provided for each.

Catalog excerpts

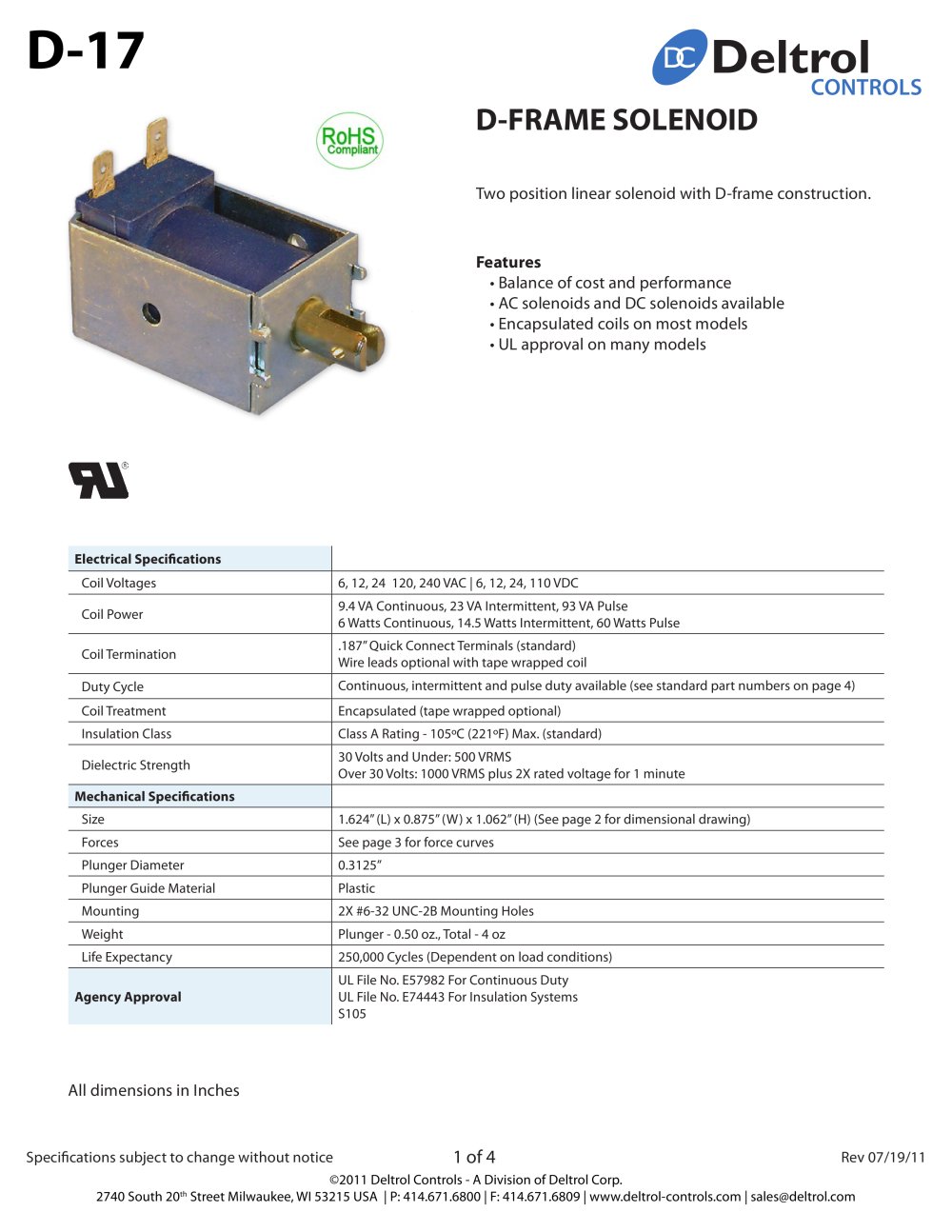

iJ?Deltrol CONTROLS OHS ampittnt D-FRAME SOLENOID Two position linear solenoid with D-frame construction. Futures * Balance of cost and performance AC solenoids and DC solenoids available * Encapsulated coils on most models Օ ULapproval on manyrnodels Eloctrical Spcifications Coil Voltages 6,12,24 120, 240VAC|6f 12,24, 110VDC Coil Power 9.4 VA Continuous, 23 VA Intermittent, 93 VA Puise 6Watts Continuous. 145 Watts Intermittent, 60 Watts Puise CoilTerrnination .187*QuickConnect Terminais (standard) Wire leads optional with tape wrapped coil Duty Cycle Continuous. intermittent and puise duty available (see standard part numbers on page 4) Coil Treat ment Encapsulated (tape wrapped optional) InsulationClass Class A Rating - 10S°C (221°F) Max. (standard) Dielectric Strength 30 Volts and Under.SOOVRMS Over30Votts: 1000 VRMS plus 2X rated vohage for 1 minute Mechanical Spcifications Size 1.624*(L) x 0.875*(W) x 1.062' (H) (See page 2 for dimensional drawing) Forces See page 3 for force curves PlungerDiameter 03125" Plunger Guide Material Plastic Mounting 2X #6-32 UNC-2B Mounting Holes Weight Plunger - 0.50 oz.,Total - 4 oz Life Expectancy 250,0OOC)rcles (D驩pendent on load conditions) Agency Approval UL Rie Na E57982 For Continuous Duty UL file Na E74443 For Insulation Systems S105 AH dimensions in Inches Spcifications subject to change without notice 1 of 4 Rev 07/19/11 32011 Deltrol Controls - A Division of Dettrol Corp. 2740 South 2CT Street Milwaulcee,WI 53215 USA | P: 414.671.68CO | F:414671.6809 | www.deltroJ-controls.com | salesc&deltroLcom

Open the catalog to page 1

D-17 #Deltrol CONTROLS Force Curves AC Continuous Duty -9.4 VA DC Continuous Duty - 6 Watts ttreke|nincn#i ttofc* *n mchcs AC Intermittent Duty - 23 VA DC Intermittent Duty -14.5 Watts v ronce ﯕ 25*c, oox voltage holding forc ■ 63 oz. force 9 25*c. 0% voltage NG rORCC - 60oz. force 105* c. 100% voltage holding force = 59 oz. force* 105* c, B0% voltage itrok* in tricha* 4 .5* itrok* in inc^fis AC Puise Duty- 93 VA DC Puise Duty - 60 Watts .tUokt in Mettes itroke in inenet Standard intermittent duty cycle at nominal voltage is 25%» wfth three (3) minutes maximum 'ONT and nine (9) minutes minimum...

Open the catalog to page 3
