Deltrol Controls
C-9 C-Frame Solenoid

C-9 C-Frame Solenoid

Product catalog summary

Electrical Specifications
The C-Frame Solenoid offers various coil voltages including 24, 120, 240 VAC and 6, 12, 24, 110 VDC. It supports continuous, intermittent, and pulse duty cycles with power ratings of 13.7 VA continuous, 52 VA intermittent, and 137 VA pulse for AC, and 8.6 Watts continuous, 15.5 Watts intermittent, and 86 Watts pulse for DC. Coil termination options include .187” and .250” quick connect terminals, with wire leads available optionally. The solenoid is encapsulated with an insulation class of A (105ºC) or optionally F (155ºC). Dielectric strength is rated at 500 VRMS for 30 volts and under, and 1000 VRMS plus 2X rated voltage for over 30 volts.

Mechanical Specifications
The solenoid measures 1.062” (L) x 1.375” (W) x 1.413” (H) with a plunger diameter of .500”. It features a plastic plunger guide and mounts using two #10-32 UNF-2B holes. The plunger weighs 0.90 oz., with a total weight of 5.0 oz. The life expectancy is 250,000 cycles, depending on load conditions.

Agency Approval
The solenoid has UL approval for continuous duty (File No. E57982) and insulation systems (File No. E74443) for models S105, S130, S130D, S130D1, and S155D.

Features
The solenoid is designed with economical construction, available in both AC and DC models, and features encapsulated coils on most models. Many models have UL approval.

Force Curves and Duty Cycles
Standard intermittent duty cycle is 25% with a maximum of 3 minutes "ON" and 9 minutes "OFF". The pulse duty cycle is 10% with 100 milliseconds "ON" and 900 milliseconds "OFF". An approximate 36 sq. in. heat sink is required for operation.

Standard Part Numbers
The document lists various part numbers with specifications for voltage, duty cycle, power, resistance, and typical force at different strokes. Some parts are normally stocked, while non-stocked items require a minimum order.

Catalog excerpts

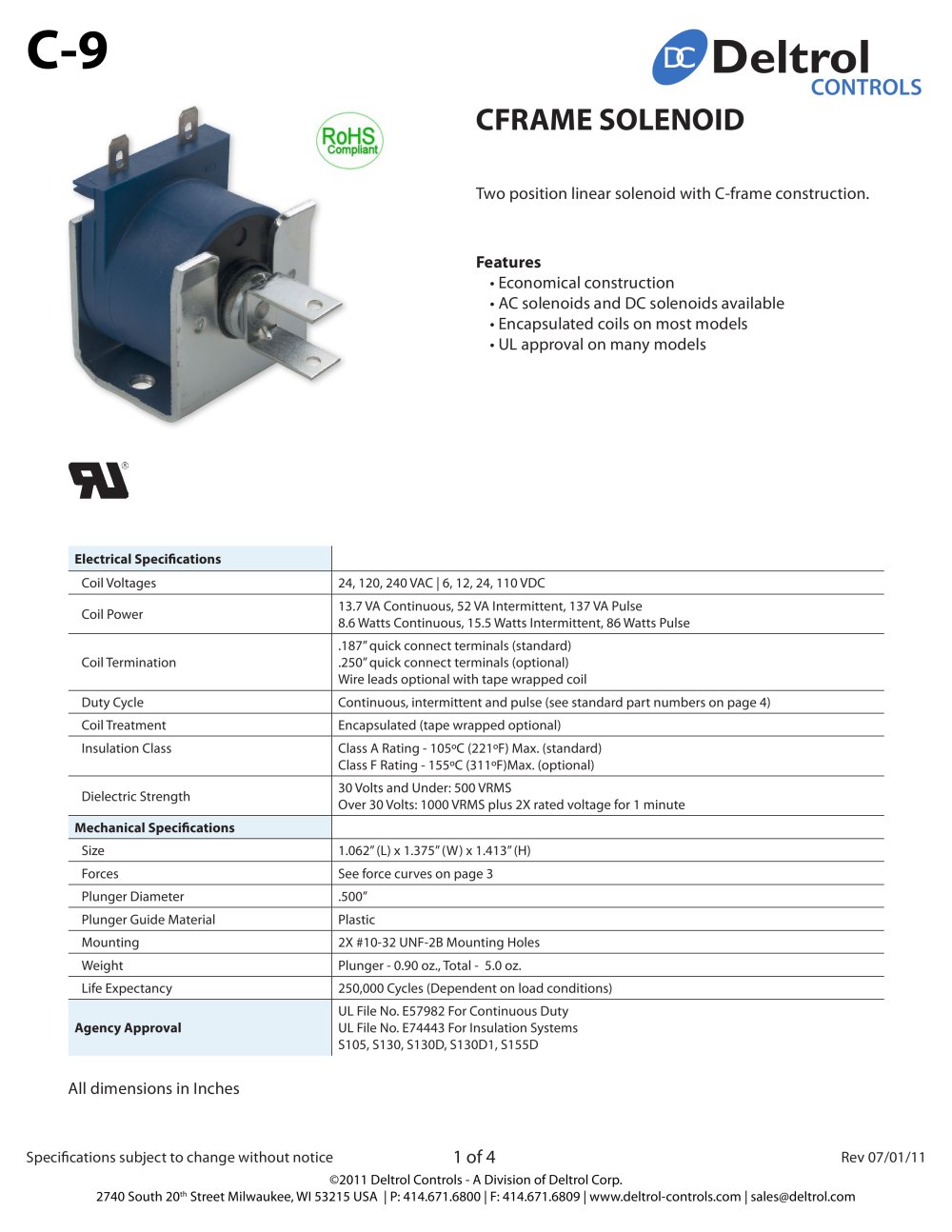

?Deltrol ^ CONTROLS CFRAME SOLENOID Two position linear solenoid with C-frame construction. Features * Economical construction Õ AC solenoids and DC solenoids available * Encapsulated coils on most models ULapproval on many models su Eloctrical Spթcifications Coil Voltages 24, 120,240VAC|6, 12,24, 110 VDC Coil Power 13.7VA Continuous. S2 VA Intermittent. 137 VA Puise 8.6 Watts Continuous, 155 Watts Intermittent, 86 Watts Puise CoilTermination .187"quick connect terminais (standard) .250*quick connect terminais (optional) Wire leads optional wrth tape wrapped coi 1 Duty Cycle Continuous, intermittent and puise (see standard part numbers on page4) Coil Treatment Encapsulated (tape wrapped optional) Insulation Class Class A Rating - 105<C (221°F) Max. (standard) Class F Rating -155°C (311*F)Max. (optional) Dielectric Strength 30 Volts and Under: 500 VRMS Over30Voits: 1000 VRMS plus 2X rated voltage for 1 minute Meehanical Specifications Sze 1.062*(L)x 1375*(W)x 1413" (H) Forces See force curves on page 3 PlungerDiameter 500* Plunger Guide Material Plastic Mounting 2X110-32 UNF-2B Mounting Holes Weight Plunger-0.90ozvTotal- 5.0oz. Life Expectancy 250,000 Cycles (Dpendent on load conditions) Agent y Approval UL Rie Na E57982 For Continuous Duty UL Rie Na E74443 For Insulation Systems S105, Sl30,Sl30D,Sl30Ol,Sl55D Ail dimensions in Inches Spcifications subject to change without notice 1 of 4 Rev 07/01/11 32011 Deltrol Controls - A Division of Dettrol Corp. 2740 South 2CT Street Mirwaukee,WI 53215 USA | P:414.671.68001 F:414.671.68091 www.deltroJ-controls.com | sales@deltrolcom

Open the catalog to page 1

C-9 i^Deltrol CONTROLS Force Curves AC Continuous Duty -13.7 VA DC Continuous Duty - 8.6 Watts FORCE » 25* C. 100% VOLTAGE MOI DfNft FORCF * 75 07 FORCE» «* C. 00 * VOLTAGE HOLDING FORCE - 60 O*. ^ORCE W 105* Ca 100% VUL1 AGE HOLDING FORCE *■ 58 OZ- FORCE » 105" C, 80% VOLTAGE "OLOING FORCE ■ 44 OZ. .2,J ■r> irchei AC Intermittent Duty - 52 VA DC Intermittent Duty -15,5 Watts FORCfc * 2J* C» 10O% VOLAGt HOLDING FORCE = 13/OZ FORCE 105* C 100% VOLTAGE HOLDING *-OMCfc 133 OZ rORCE ft» 25* C. 05% VOLTAGE % HOLDING FORCE - 110 DZFORCE » 105* C 85% VOLTAGE HOLDING FORCE - 10* OZ, c 1.2s ^UHtt » 25-...
