Deltrol Controls
C-15 C-Frame Solenoid

C-15 C-Frame Solenoid

Product catalog summary

Electrical Specifications
The C-Frame Solenoid by Deltrol Controls offers a range of coil voltages including 6, 12, 24, 120, and 240 VAC, as well as 6, 12, 24, and 110 VDC. The coil power varies with duty cycle: 12 VA for continuous, 26 VA for intermittent, and 120 VA for pulse operations. The solenoid features .187” quick connect terminals, with wire leads available as an option. It supports continuous, intermittent, and pulse duty cycles, with encapsulated coil treatment and an insulation class of A (105ºC) or optional F (155ºC). Dielectric strength is rated at 500 VRMS for 30 volts and under, and 1000 VRMS plus 2X rated voltage for over 30 volts.

Mechanical Specifications
The solenoid measures 1.729” x 0.844” x 0.942” and includes a plunger with a diameter of 0.313”. It is mounted using two #6-32 UNC-2B holes and weighs 3.3 oz in total. The life expectancy is approximately 250,000 cycles, depending on load conditions. The solenoid is UL approved for continuous duty and insulation systems.

Features
The solenoid is designed with economical construction and is available in both AC and DC models. Most models feature encapsulated coils and have UL approval.

Force Curves and Duty Cycles
The standard intermittent duty cycle is 25%, with a maximum of 3 minutes "ON" and a minimum of 9 minutes "OFF". The pulse duty cycle is 10%, with 100 milliseconds "ON" and 900 milliseconds "OFF". A heat sink of approximately 36 sq. in. is required.

Standard Part Numbers
The document lists various part numbers with corresponding voltage, duty cycle, power, resistance, and typical force at different strokes. Notably, some parts are normally stocked, while non-stocked items require a minimum order.

Catalog excerpts

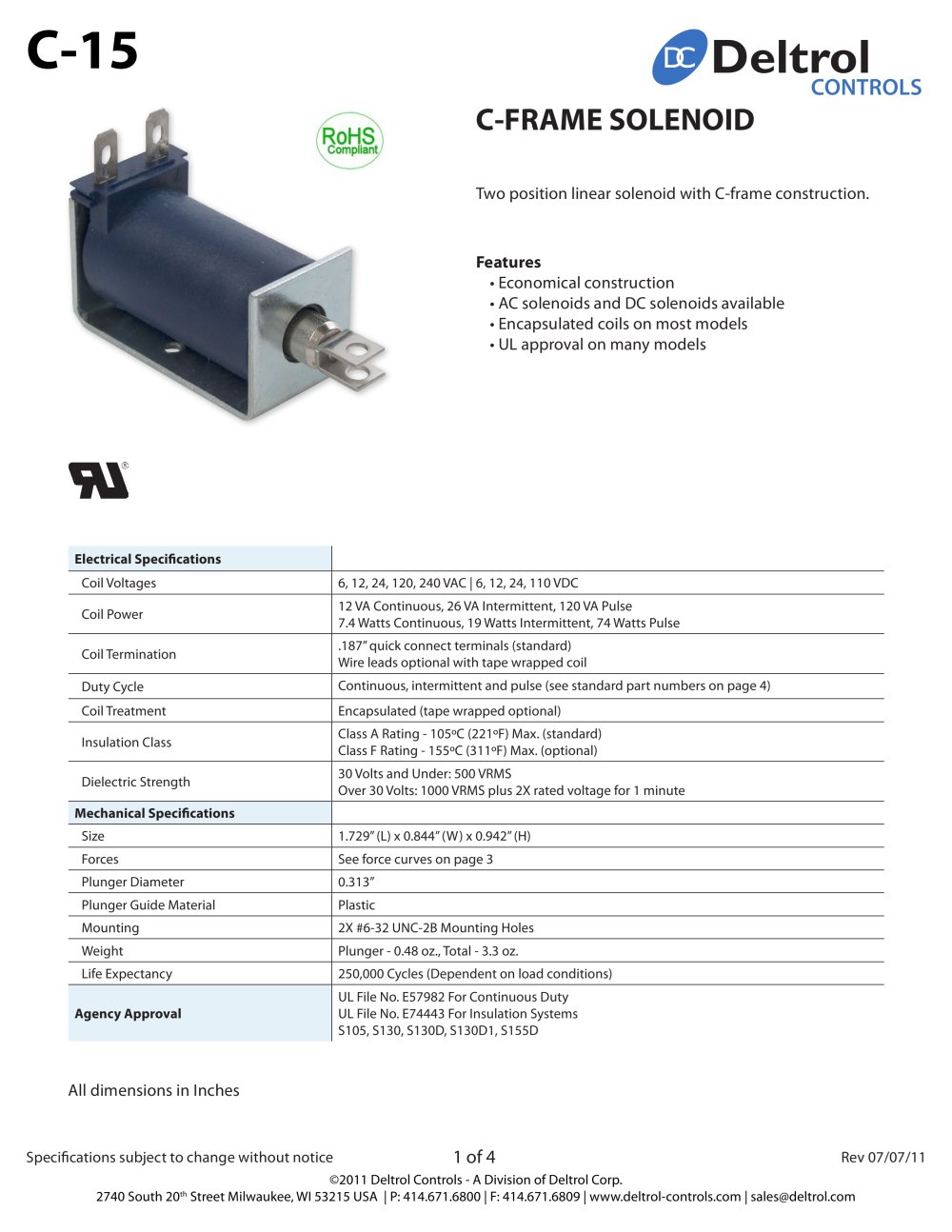

C-15 ij? Deltrol CONTROLS RoHS Comptent C-FRAME SOLENOID Two position Hnear solenoid with C-frame construction Futures * Economical construction AC solenoids and DC solenoids available * Encapsuldted coils on most models Օ ULapproval on manyrnodels Eloctrical Spcifications Coil Voltages 6, 12, 24, 120, 240VAC|6,12,24, 110VDC Coil Power 12 VA Continuous. 26VA Intermittent 120VA Puise 7.4 Watts Continuous, 19 Watts Intermittent, 74 Watts Puise CoilTermination .187'quick connect terminais (standard) Wire leads optional wrth tape wrapped coil Duty Cycle Continuous, intermittent and puise (see standard part nurnbers on page 4) Coil Treat ment Encapsulated (tape wrapped optional) Insulation Class Class A Rating - 10S°C (221°F> Max. (standard) Class F Rating -155< (311°F) Max. (optional) Oelectric Strength 30 Voltsand Under: 500 VRMS Over 30Volts: 1000VRMS plus 2X rated voKage for 1 minute Mechanical Spcifications 1729*<L)x0.844*(W)x 0.942" (H) Forces See force curves on page 3 PlungerDiameter 0313* PI u n g e r Guide Material Plastic Mountfaig 2X #6-32 UNC-2B Mounting Holes Weight Plunger - 0.48ozv Total - 33 oz. Life Expectancy 250,0OOCycles (D驩pendent on load conditions) Agency Approval UL Rie No. ES7982 For Continuous Duty UL File No. E74443 For Insulation Systems S10S, Sl30,Sl30D,Sl30Ol,Sl55D Ail dimensions in Inches Spcifications subject to change without notice 1 of 4 Rev 07/07/11 32011 Deltrol Controls - A Division of Deltrol Corp. 2740 South 2CT Street Milwaukee, Wl 53215 USA | P: 414.671.6803 | F: 414,671 6809 | wwwdeltroi-controlsxom | salesc&deltroLcom

Open the catalog to page 1

C-15 4j9Deltrot CONTROLS Dimensional View Units: Inches [mm] f .303 l[7.701 2X .078 x .125 (1.98x3.18) SLOT .440 [11.18] 1.352± m E34 34±102] 2X.187 x.020 (4.75x0.50) Q.C. TERMINALS 2X #6-32 UNC-2B MOUNTING HOLES [19.05 t 76] H ML- i ■__g --* f il M 0.3125t 0020[7.94* os] PLUNGER 1.729 [43.92] .844 [21.441 .340 [8.64] .125±oio [3.18*25 .219 [5.55] r 뗕140 ...M (3.56) MIN .449 [11.40] UNLESS OTHERWISE SPECIFIED INCHES ±.015 (MILLIMETERS 0.38) - -i r .437±005 [11.10±-13] .500* 005[12.70*13 Spcifications subject to change without notice 2 of 4 Rev 07/07/11 ©2011 Deltrol Controls - A Division of Dettrol...

Open the catalog to page 2

C-15 ^Deltrol CONTROLS Force Curves AC Continuous Duty -12 VA DC Continuous Duty - 7.4 Watts FORCE Z9' C. 100% VOLTAGE HOLDING FODCE - «1 OZ. FORCE » 105" C. 100% VOLTAGE HOLOir>*a ronce - 3» OZ. FORCE» 25' C. S8% VOLTAGE HOLDING PORCE ■ Վ2 OZ. FORCE * 105" C. 85% VOLTAGE "Ol OING FORCE = 79 OZ. _ 4 FORCE 925*C, 100% VOLTAGE HOLDING FORCE ■ 53 O? FORCE » 25* C, 80% VOLTAGE HOLDING FORCE 30 OZ. FORCE * 105' C* 100% VOLTAGE HOLDING FORCE * 49 OZ. FORCE # 105* Ci 80% VOLTAGE HOLDING rORCL - 4$ OZ. .4.5 .5 3 _ fi Պ l J C A .5 .6 itruKC in inchei AC Intermittent Duty - 26 VA DC Intermittent Duty -19...

Open the catalog to page 3
